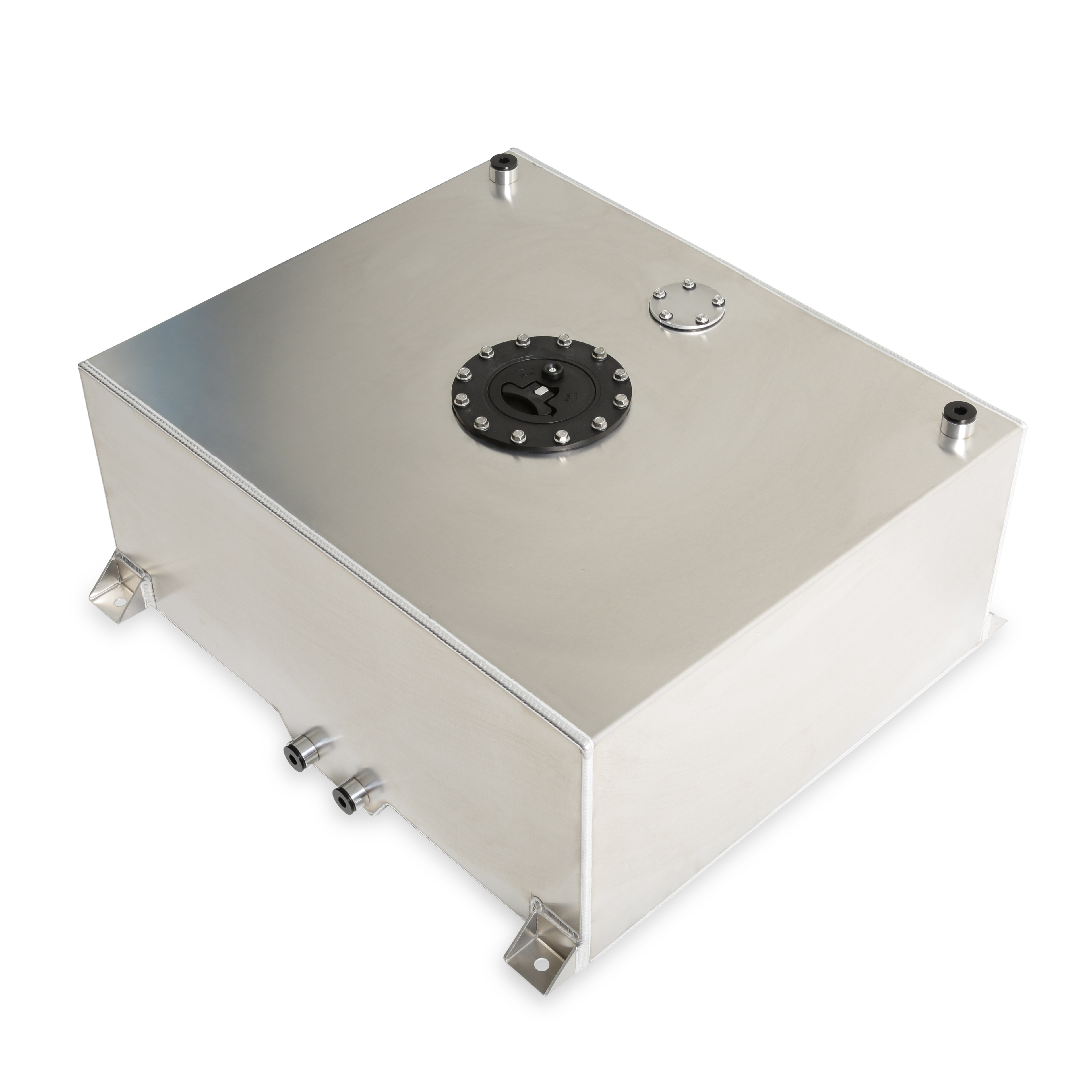

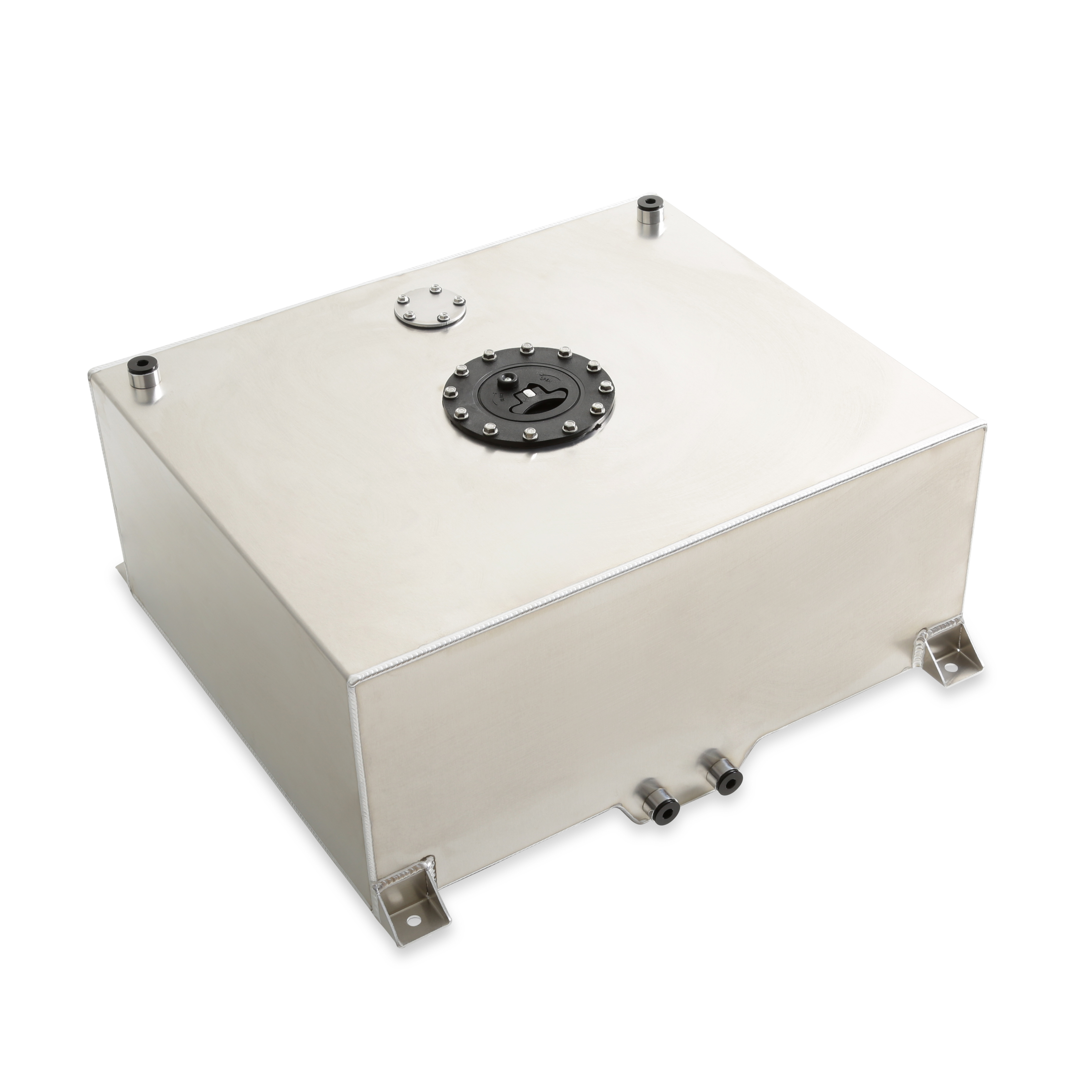

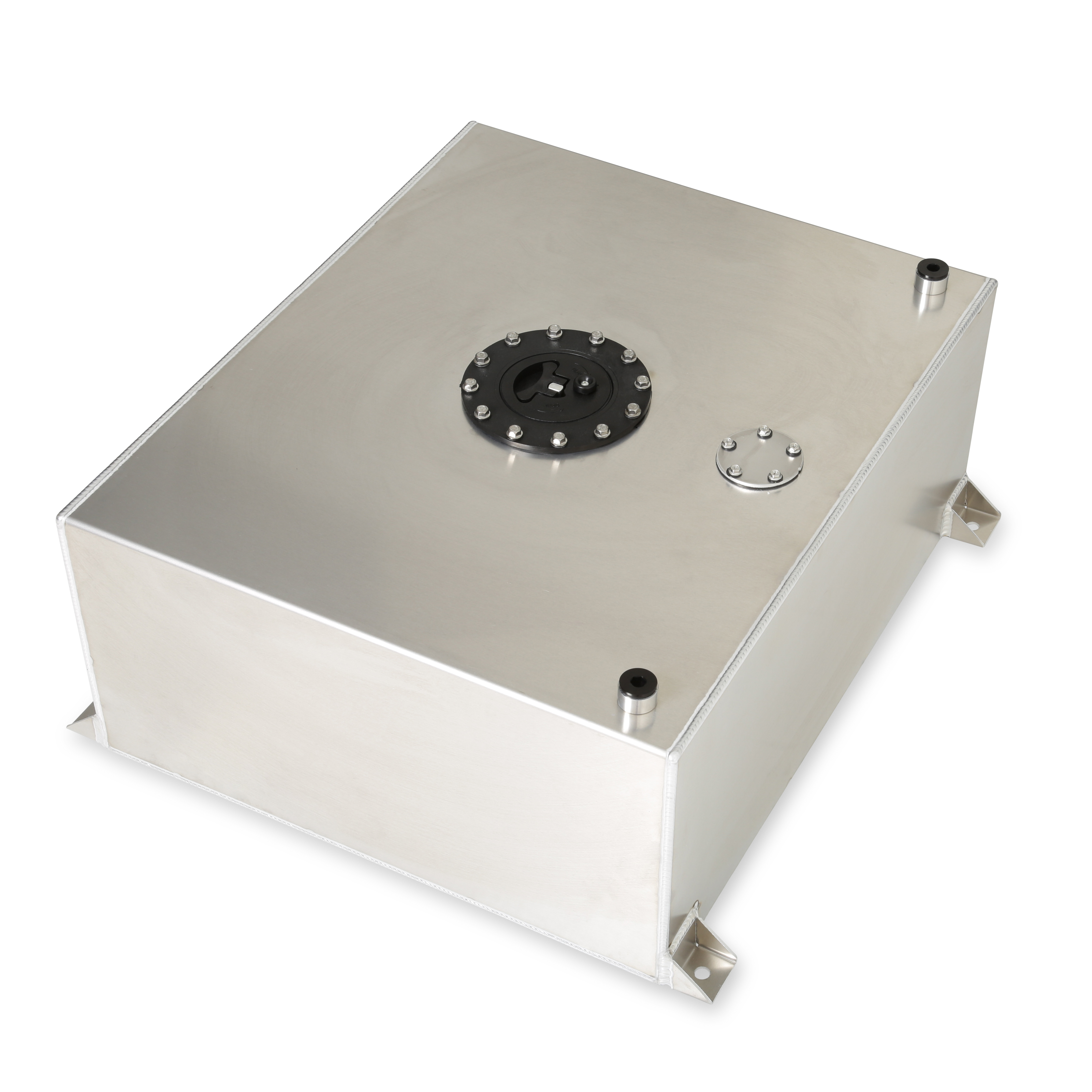

Aluminum Fuel Cell 20 Gallon
SKU
HTPD-19-207
List price
$428.40
Price
$320.95
Description
Rear Sump, (24 x 20 x 10)"
Features
- Available in 3, 5, 10, 15 and 20-gallon tank sizes
- Offered in both flat bottom or rear sump to help prevent fuel starvation

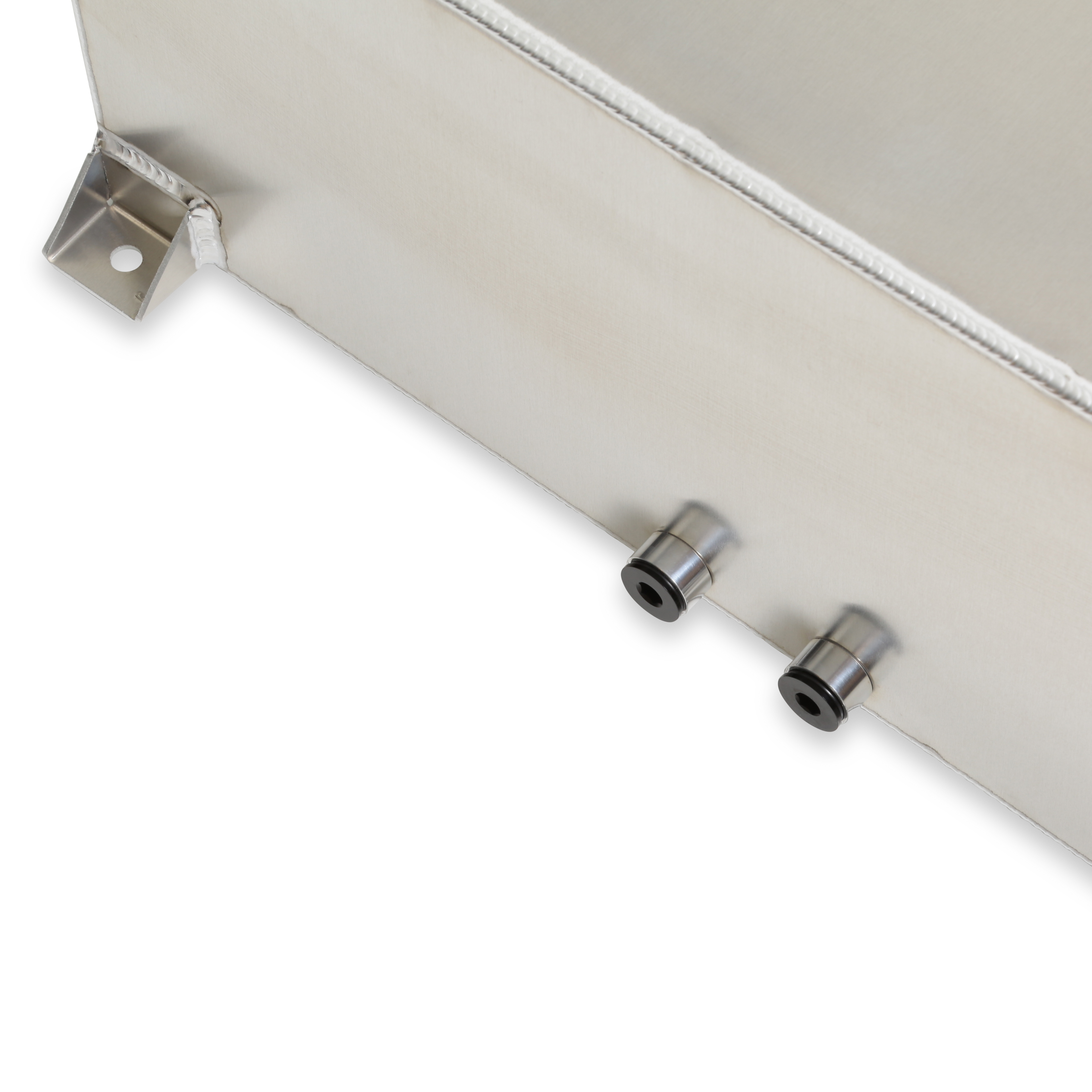

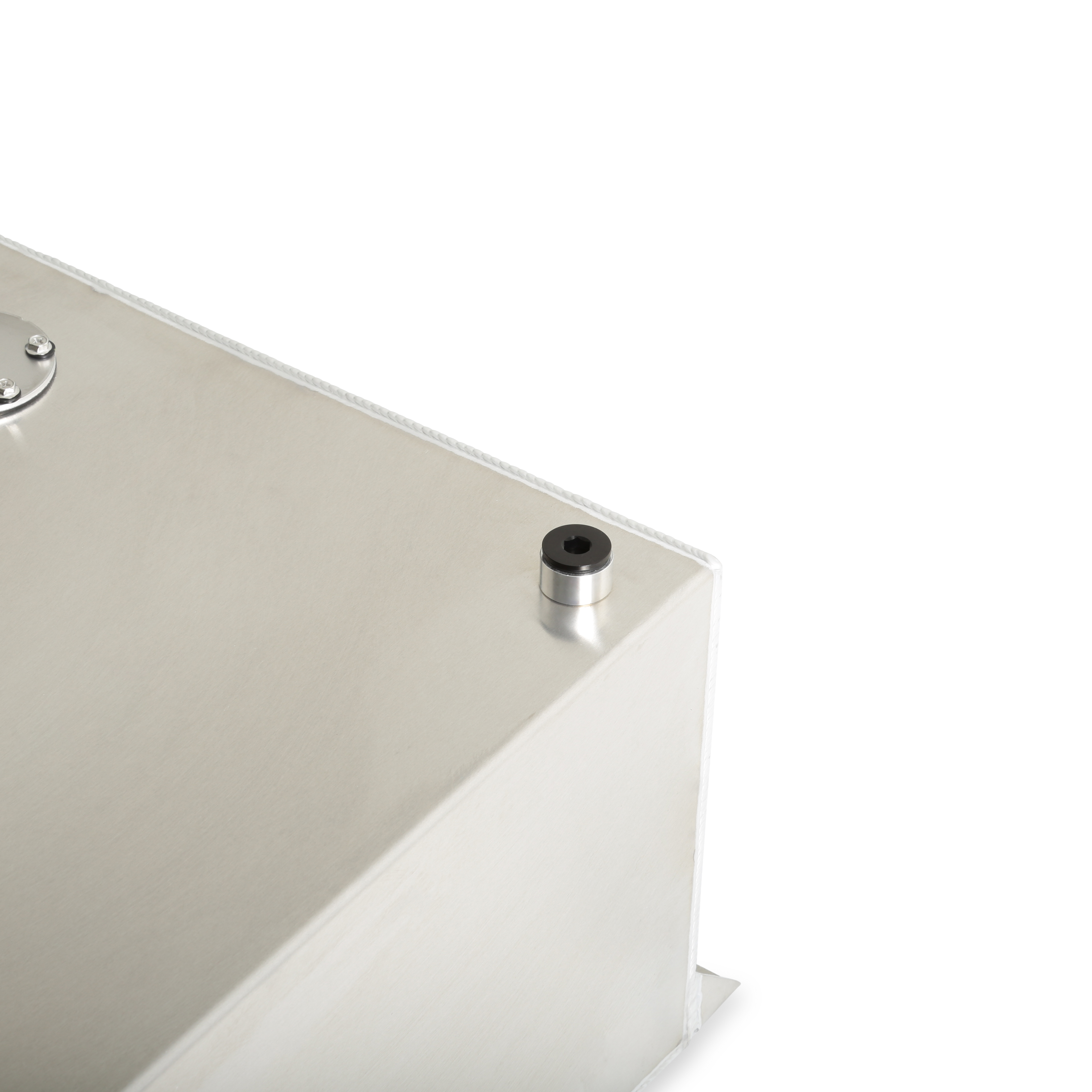

- -10AN ORB ports (feed, return, vent) for high flow
- Readily adaptable -10AN ORB ports to -6AN, -8AN and -12AN avoids cutting and re-welding male weld bungs
- ORB ports are welded from the inside for a clean look
- Made from 2.5mm thick 5052 aluminum
- Fully TIG welded
- Modular design to be easily upgraded gives customer flexibility to add options to suit their needs
- Anti-slosh foam included and pre-cut to clear fuel level sender *NOTE: foam is not E85 compatible*
- Pre-welded triangulated mounted tabs for added support and easy installation

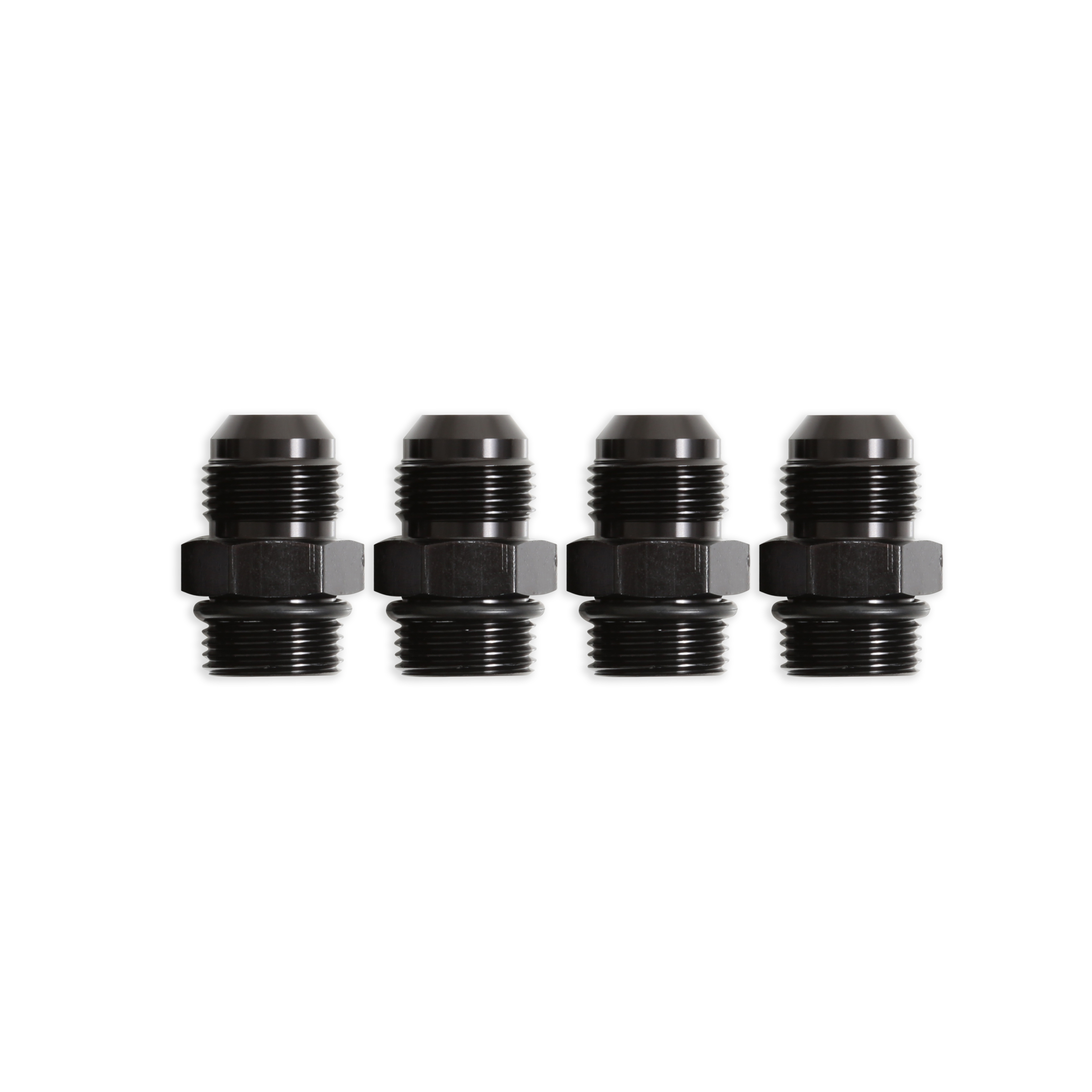

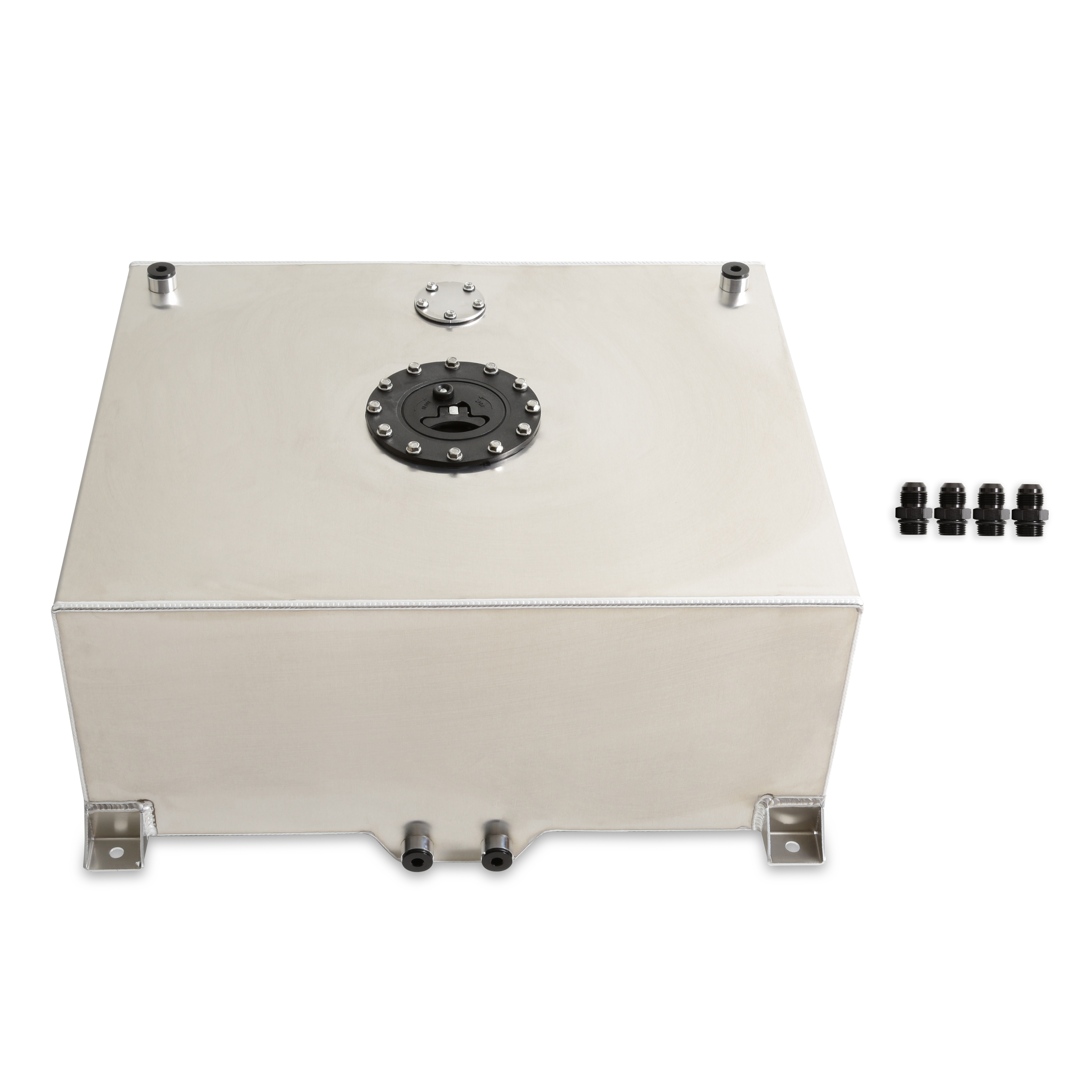

- Includes flush-mount aircraft-style cap, fuel sender block-off plate, -10AN plugs and -10AN male adapters

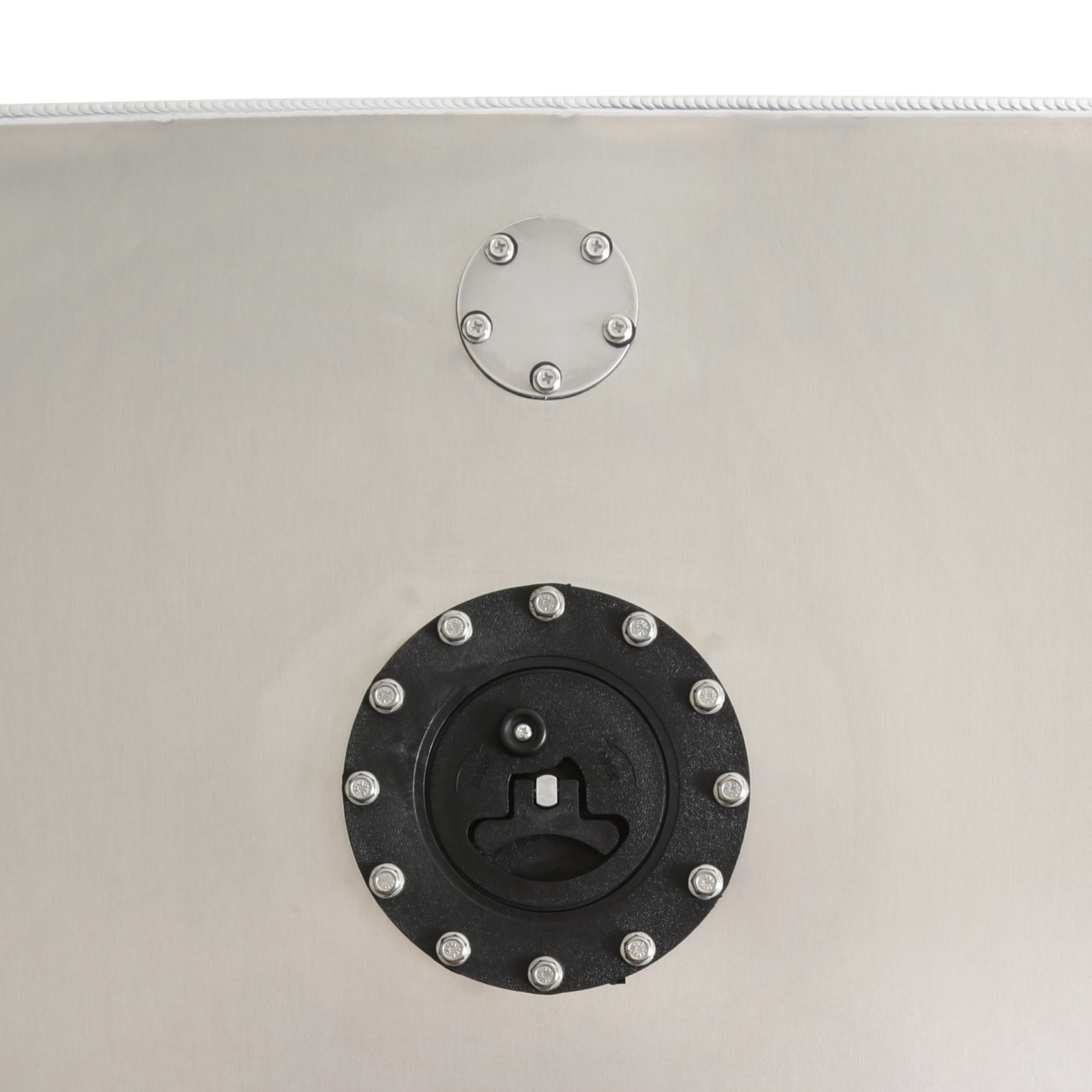

- 12-bolt flush-mount cap assembly can be upgraded to a billet fuel cap or an in-tank fuel cell pump module
- 5-bolt fuel sender block-off plate can be removed and a fuel gauge tube level sender can be installed
Specs
Brand
HOLLEY
Category
Fuel Cell
Specs
Brand: Holley
Color: Silver
Width: 20
Height: 10
Length: 24
Warning: California Proposition 65
Capacity: 20
Category: Air and Fuel Delivery
Material: Aluminium
part type: Fuel Cell
Grade Type: Performance
Product Type: Fuel Cells
Sub Category: Fuel Storage
Emission Code: 4
Filler Neck Attached: No
Sending Unit Included: No
Universal Or Specific Fit: Universal
Mounting Hardware Included: No
