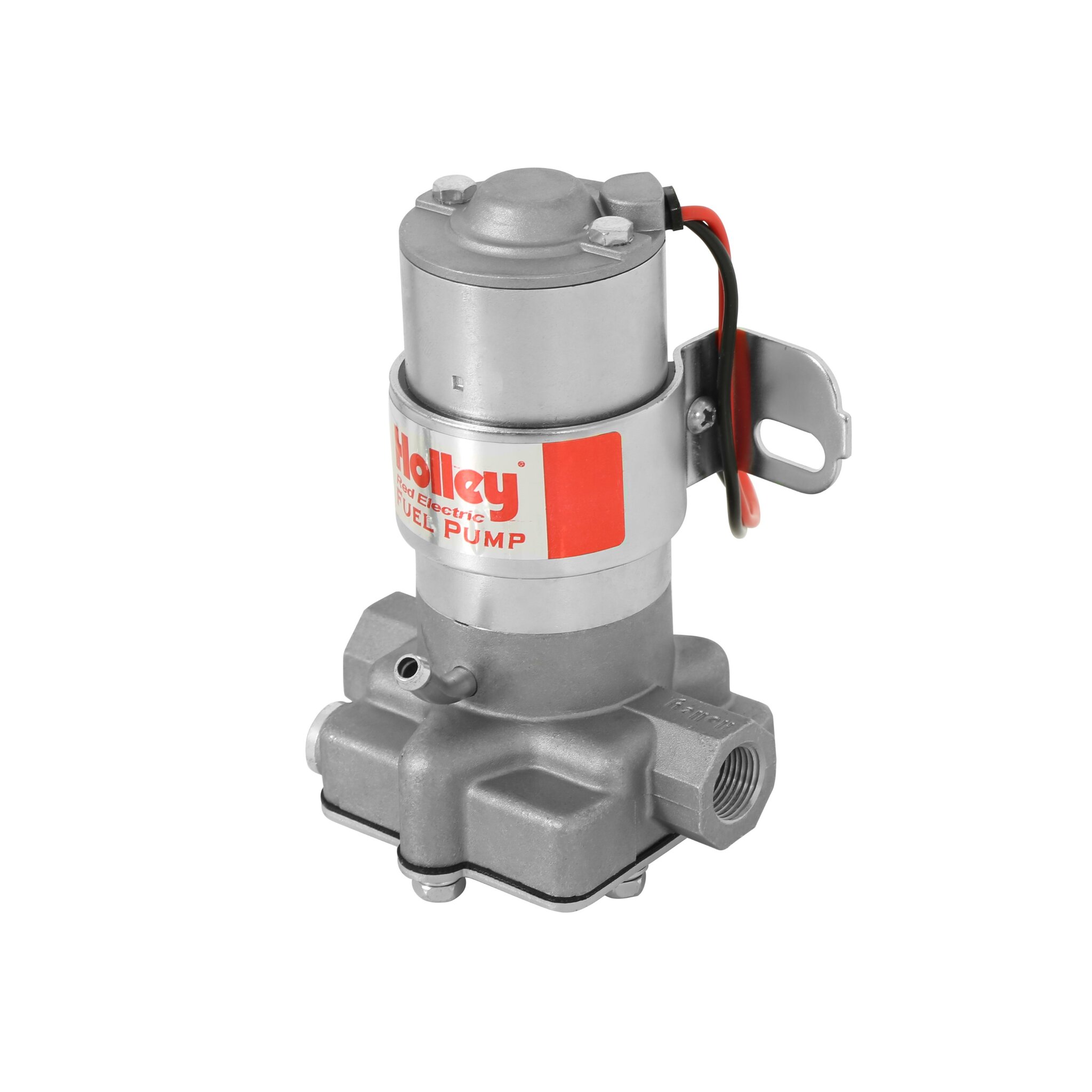

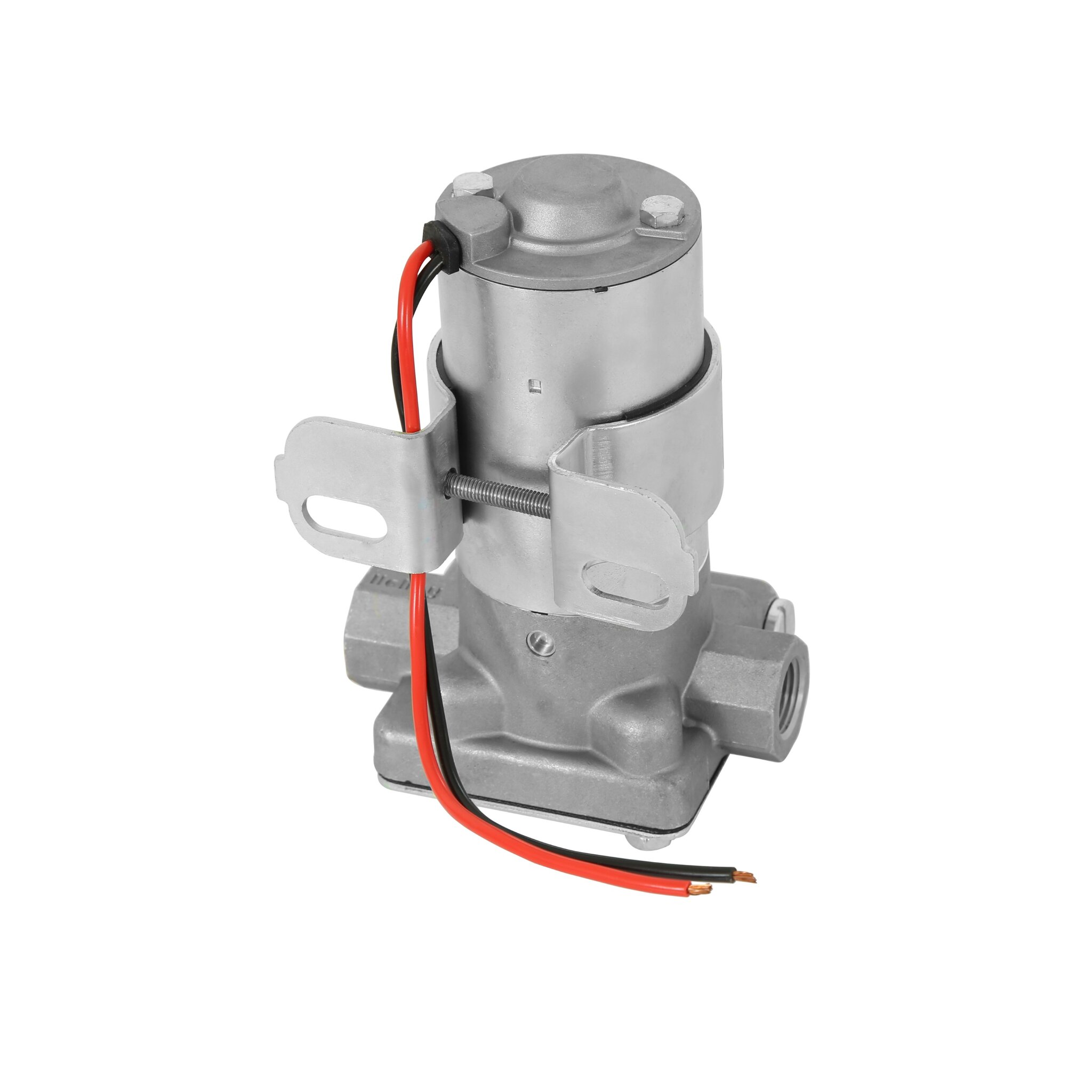

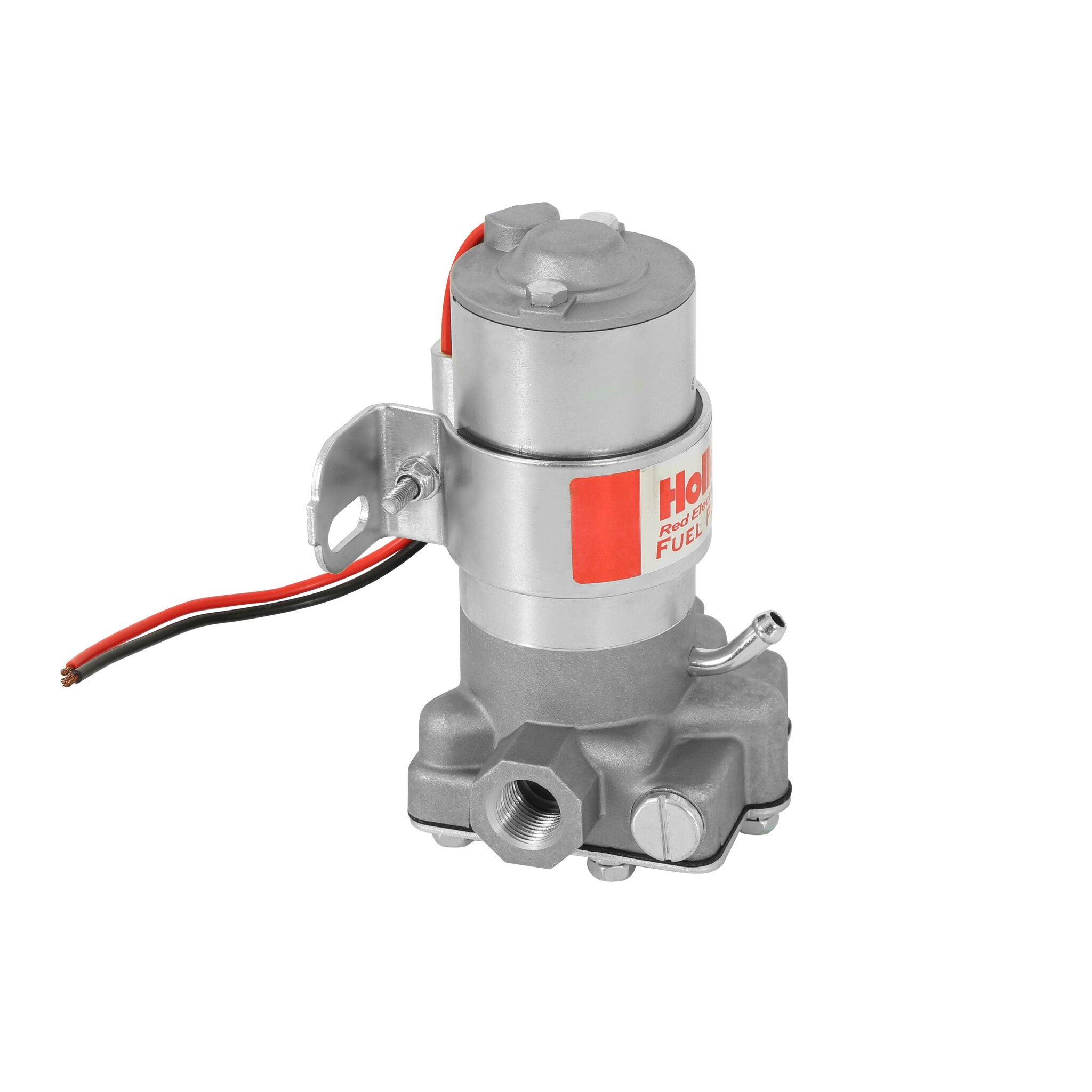

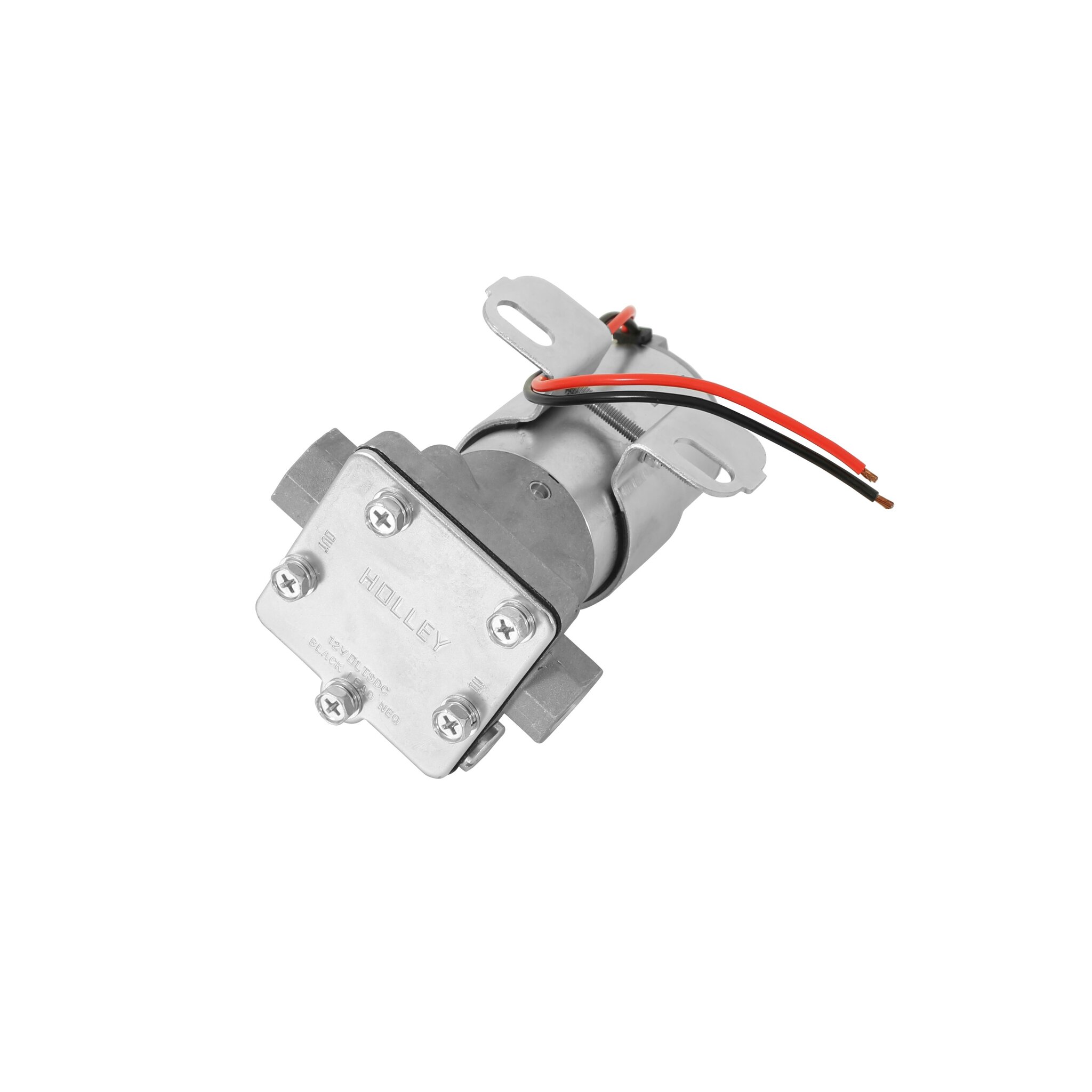

97 GPH RED® Electric Fuel Pump
SKU
HTPD-712-801-1
List price
$281.95
Price
$249.95
Description
Marine Carbureted Applications
Compatible with Gasoline Only
Features
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow and quiet operation
- Maximum pressure is 7 psi
- Motor draws 2 amps current
- 7 1/2 amp fuse recommended
- Constant fuel flow with no pulsation
- Improved design for street/strip applications
- Not designed to be used on aircraft of any type.
- Distinctive “Red” logo
- Flows 97 GPH (free flow)
- Flows 71 GPH at 4 psi
- regulator is not required
- Has externally accessible pressure relief valve (max 7 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 2.88 lbs

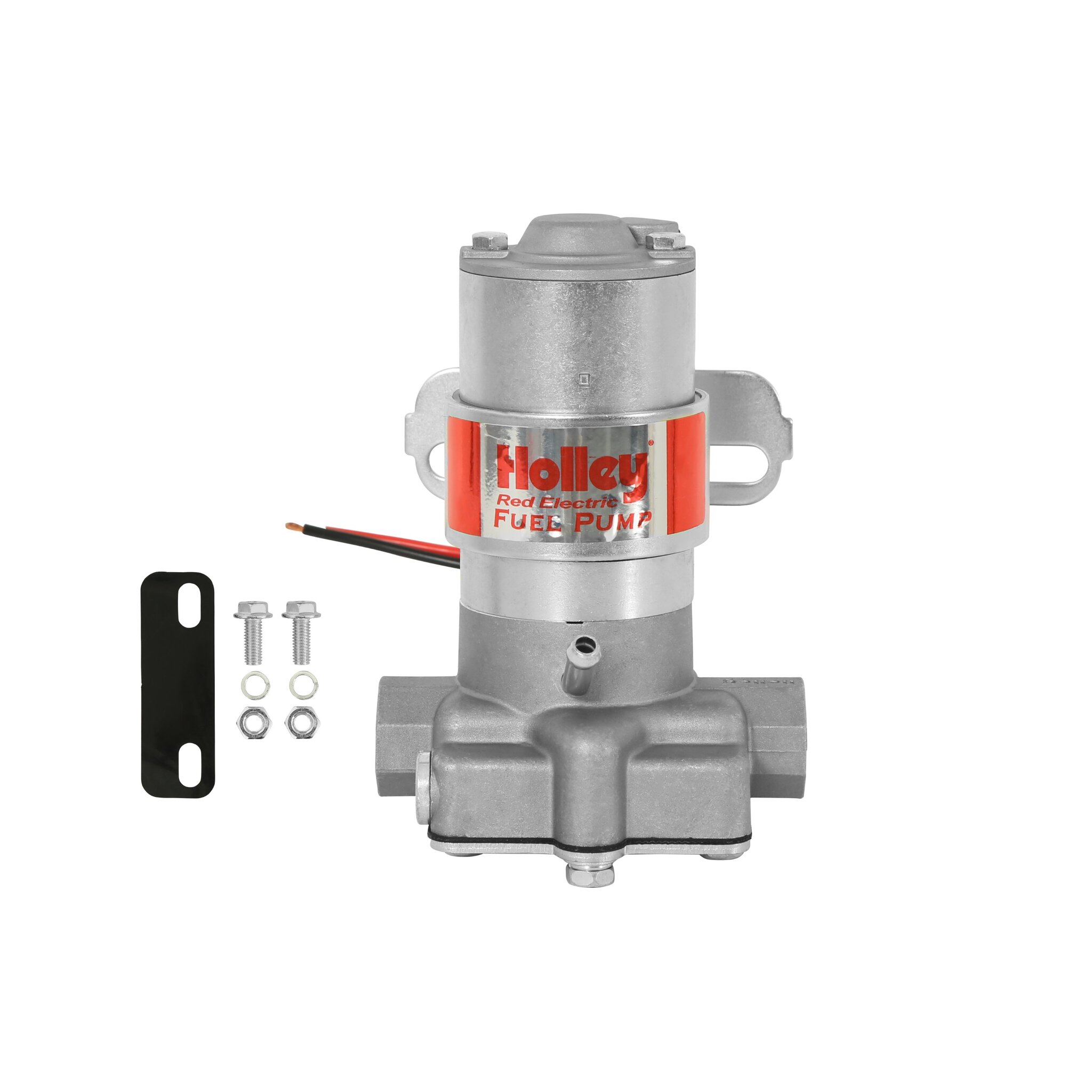

- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Not compatible with alcohol or methanol fuels
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
- Meets U.S. Coast Guard regulations
- Includes Fuel/vapor tube
Specs
Brand
HOLLEY
Category
Electric Fuel Pump
Specs
Brand: Holley
Voltage: 12
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: Gasoline
part type: Electric Fuel Pump
Grade Type: Performance
Inlet Size: 3/8 inch NPT
Inlet Type: NPT
Application: Marine
Fuel System: Carbureted
Outlet Size: 3/8 inch NPT
Outlet Type: NPT
Motor Finish: Silver
Product Type: Fuel Pump
Sub Category: Fuel Pumps and Related Components
Bracket Color: Silver
Emission Code: 5
Free Flow GPH: 97
Free Flow LPH: 367
Wire Quantity: 2
Fuel Pump Type: Electric
Negative Ground: Yes
Outlet Quantity: 1
Pump Body Color: Silver
Maximum Pressure: 7
Fuel Delivery Type: Carburetor
Regulator Included: No
Maximum Flow Rating: 97
Internal Or External: External
Maximum Amperage Draw: 2
Gasket Or Seal Included: No
Inlet Fitting Thread Size: 3/8
Universal Or Specific Fit: Universal
Fuel Sending Unit Included: No
Outlet Fitting Thread Size: 3/8
