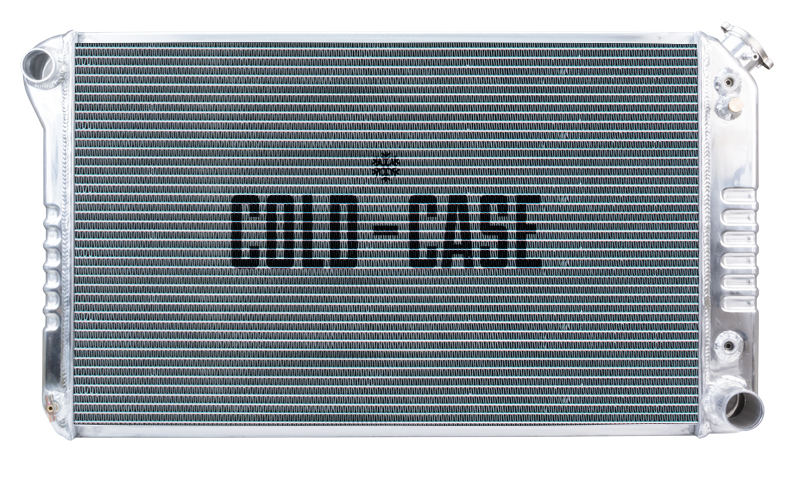

1977-1987 Chevy/GMC Truck Aluminum Performance Radiator.

This is the radiator that is 21 inches high overall. For the 19 inches high version, see GMT556AK

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

Fits:
1977-1987 Chevy/GMC Truck

Details:

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For automatic trans
• Direct fitment for 77-87 GM Truck

Radiator Specs

• Core Height 18.8 inch
• Core Width 28.35 inch
• Overall Height 21 inch
• Overall Width 34.33 inch
• Overall Thickness 6 inch
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch
• Tubes (2) 1.25 inch Tubes
