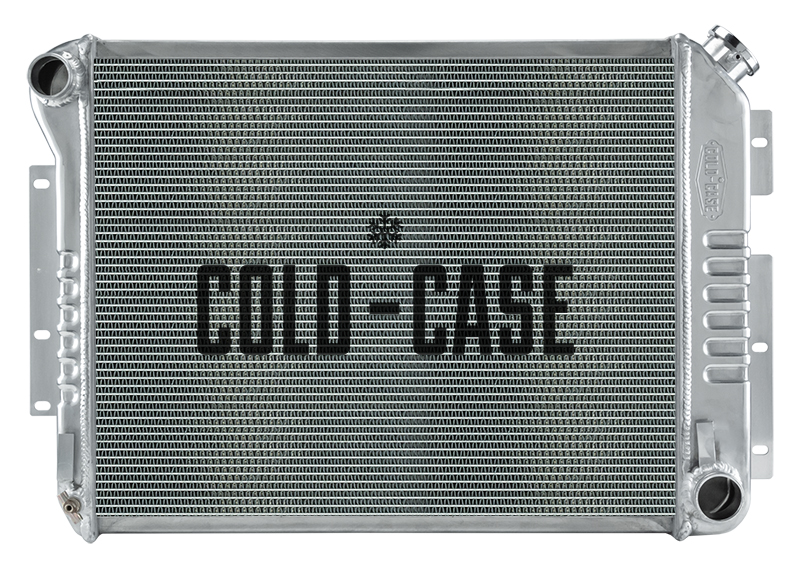

1967-1969 Camaro Small Block Aluminum Performance Radiator. MT Cars. For Big Block cars, use CHC11.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For standard/manual trans
• Direct fitment for 67-69 Camaro w/ Small Block
• Old Part Number: RPE549

Radiator Specs

• Core Height 16.85 inch
• Core Width 21.25 inch
• Overall Height 18.5 inch
• Overall Width 28.8 inch brackets
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.57 inch
• Lower Hose 1.77 inch
