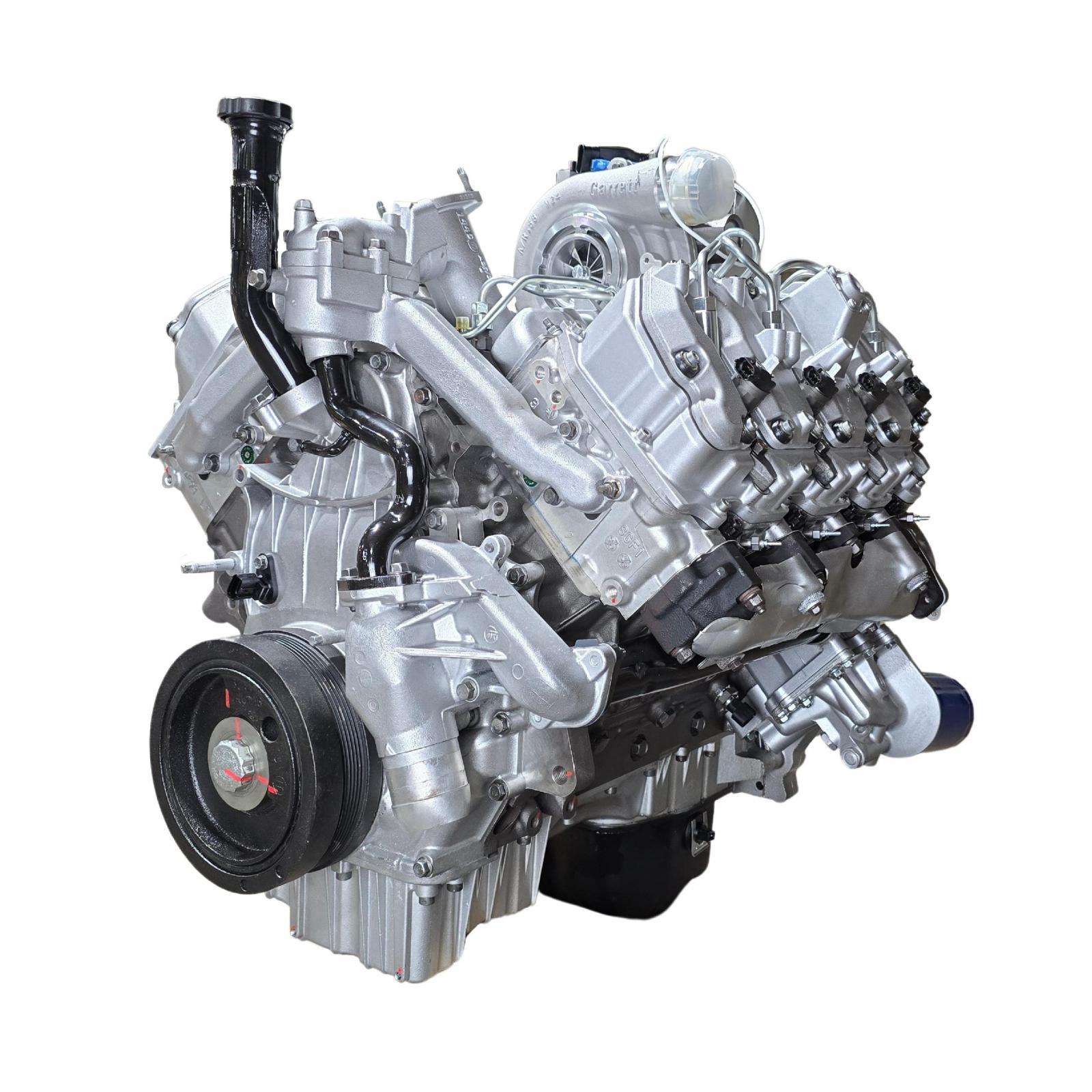

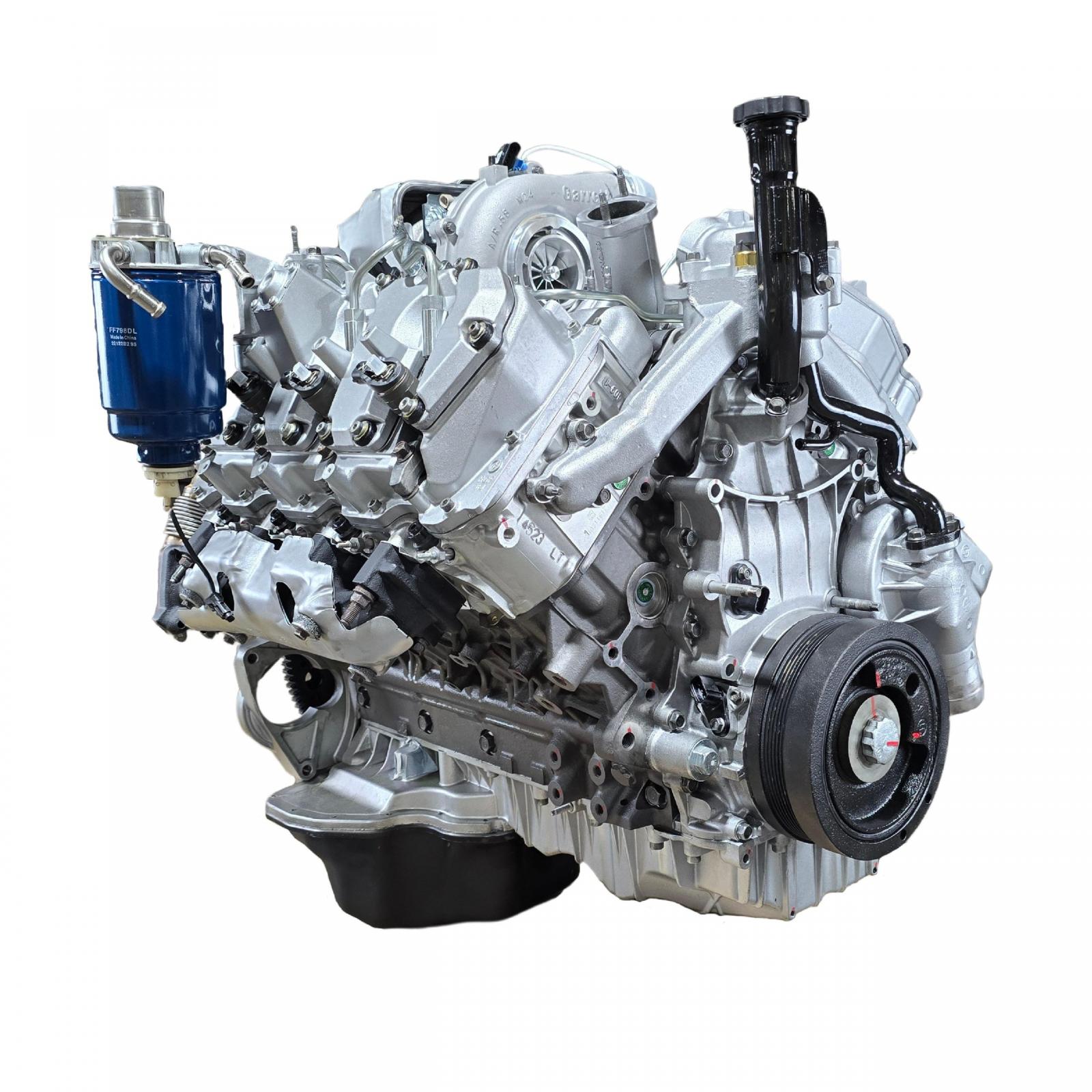

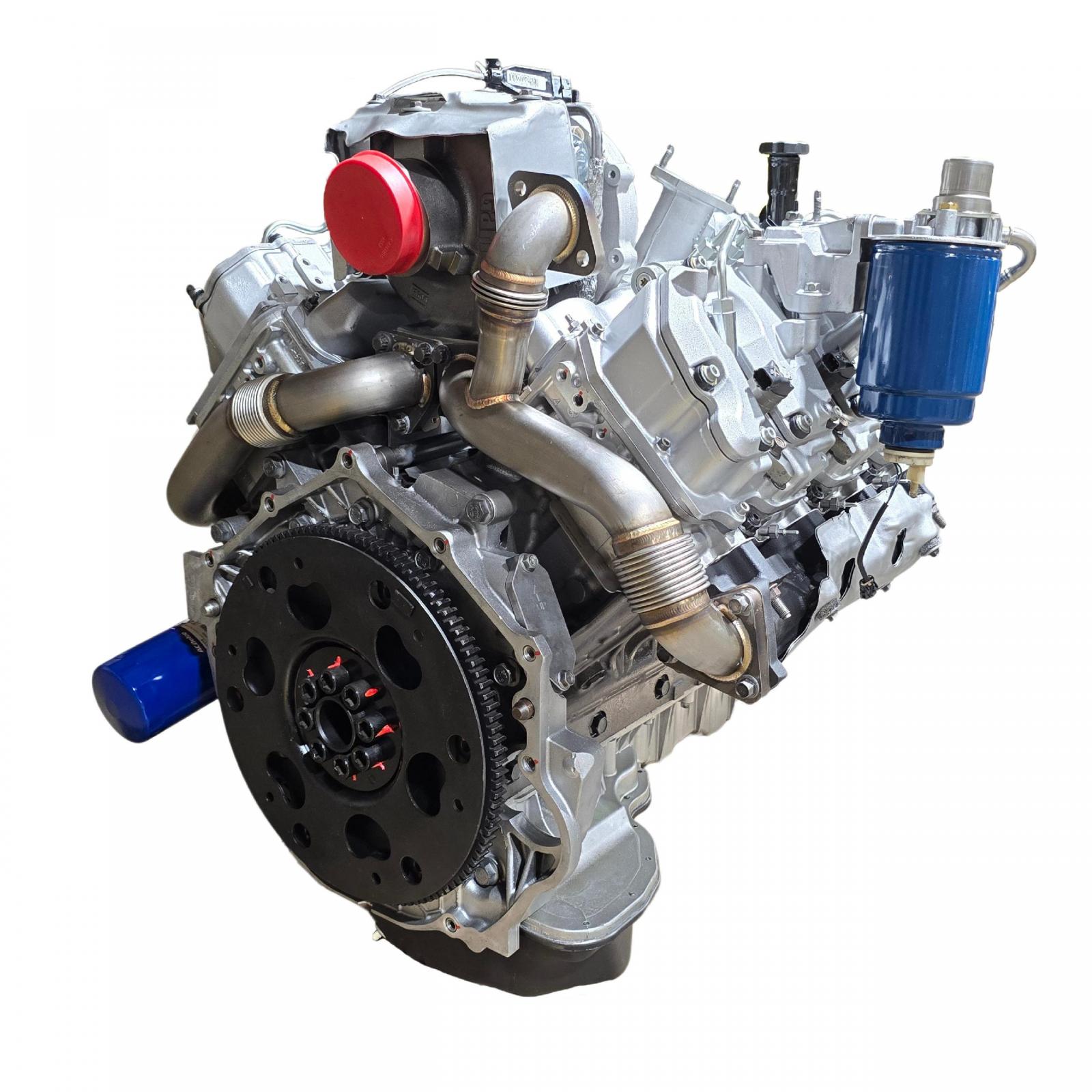

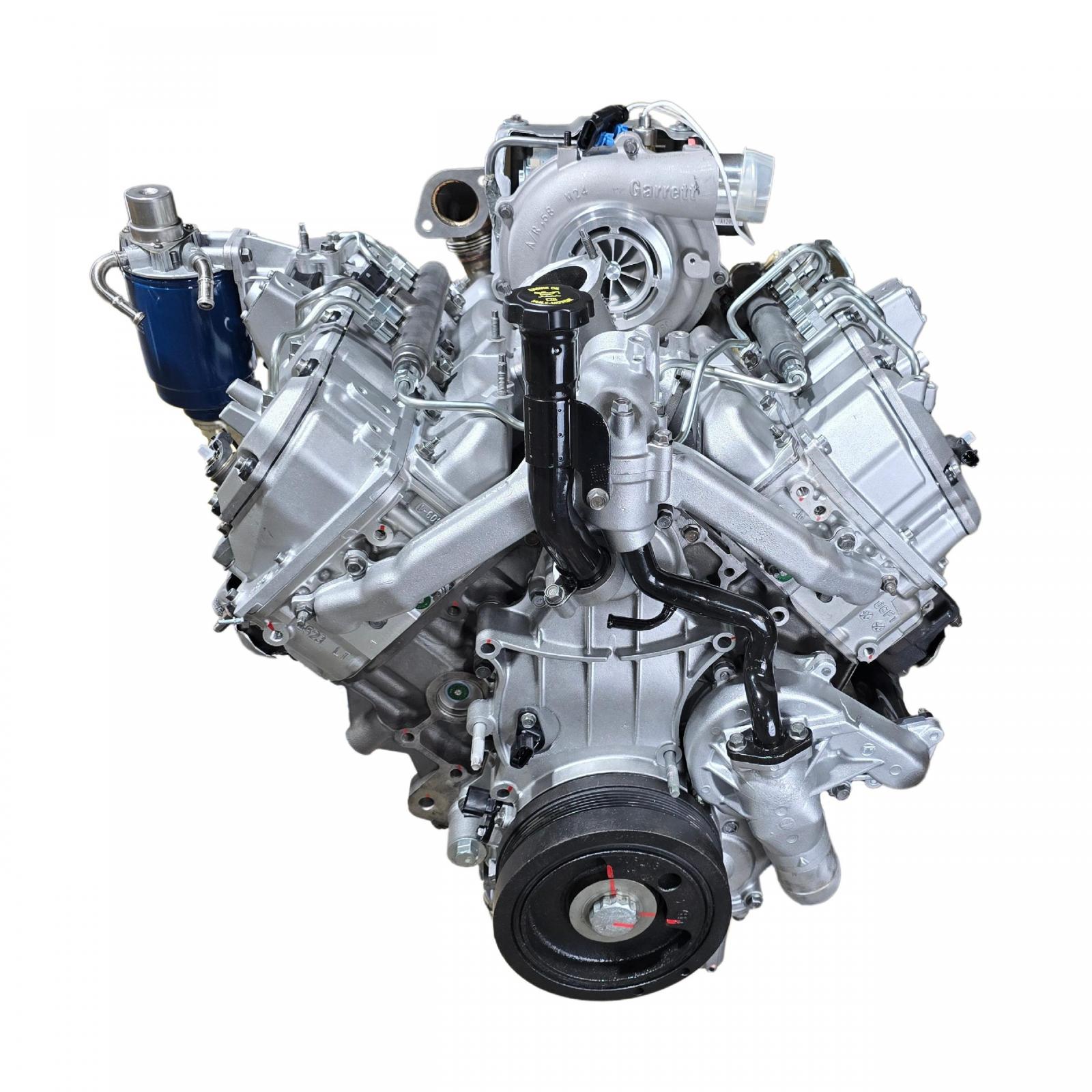

6.6L Duramax LMM Complete Drop-In Engine Workhorse 2007.5-2010 - Duramax Diesel Engine.

This build Includes:

• Fuel Injectors
• Fuel Rails
• CP3 Fuel Pump
• Fuel Rail Pressure Sensor
• Fuel Rail Regulator
• Fuel Supply Lines
• Fuel Return Lines
• Rocker Housings
• Valve Covers
• TurboCharger
• UpPipes
• Exhaust Manifold
• Water Pump
• Intake Manifold
• Oil Level Sensor
• Injector Wiring Harness
• Coolant Temp Sensor
• Oil Cooler
• Oil Filter
• Oil Filter Housing
• New Freeze Plugs
• Keyed Crankshaft
• Balanced Rotational Assembly
• 5 year/100k Mile Warranty
• New Flywheel
• New Harmonic Balancer
• Upper Oil Pan
• Lower Oil Pan
• Rear Cover
• Front Cover
• Front Main Seal
• Rear Main Seal
• Head Studs
• Remanufactured Heads
• New Guides
• New Valve Seals
• CNC Valve Machining
• Pressure Tested
• Surfaced to exceed Ra finish for MLS Gaskets
• Our Built-In-House O Ringed Heads
• Stage 2 Camshaft
• Chromoly Push Rods
• Flycut, Coated, and Delipped Pistons
• Pressure Test Heads
• Remanufactured Valves
• New Induction Hardened Seats
• All New Valve Guides
• Install New Valve Seals
• Test Spring Tension
• New Freeze Plugs
• Keyed Crankshaft
• Head Studs
• Choate Coated, Flycut, and Delipped Pistons
• New Piston Rings
• New Piston Pin Retainers
• New OE Lifters
• Lifter Guides
• OE Crank Flange Bolts
• Crankshaft - Balanced and Matched Rotational Assembly
• Crankshaft is Polished and ground to .0005 concentricity or less
• New Rod Bearings
• New Main Bearings
• New Cam Bearings
• Install Pickup Tube O-ring
• Connecting Rods
• Full CNC blue print machining, (bore, deck, hone and line honed)
• The Cylinder bores are blue print bored to a true 90 degrees over the crankshaft center line
• Diamond honed to within .0002 inch for precise piston to cylinder bore clearance
• Bored and line hone the crank bore housing to precisely align the crankshaft in the engine block.
• Torque Plate Honed
• The piston diameter measured to the nearest .0001 inch matched to cylinder bores.
• The Cylinder block is surfaced to a finish of RA30 or lower, which meets the factory specification in both flatness and smoothness for the block to head sealing surface.
• This is mandatory for proper sealing of a MLS Gasket.
• Keyed Crankshaft
• Flexplate for Automatic transmission. (If you are using this for a manual transmission we highly suggest sending in your flywheel and pressure plate so we can achieve the best balancing job possible for your engine. Also, now is a great time to upgrade your clutch. Get with our team to talk about the options we have available for you!)
