200 GPH Dominator In-Line Billet Fuel Pump (Dual Inlet)
SKU
HTPD-12-1800-2
List price
$787.95
Price
$699.95
Description
Carb or EFI Applications
Supports up to 1800 EFI or 2100 Carb HP
Compatible with Pump Gas*, Race Gas, Diesel or E85
Features
- Billet aluminum construction for durability and good looks

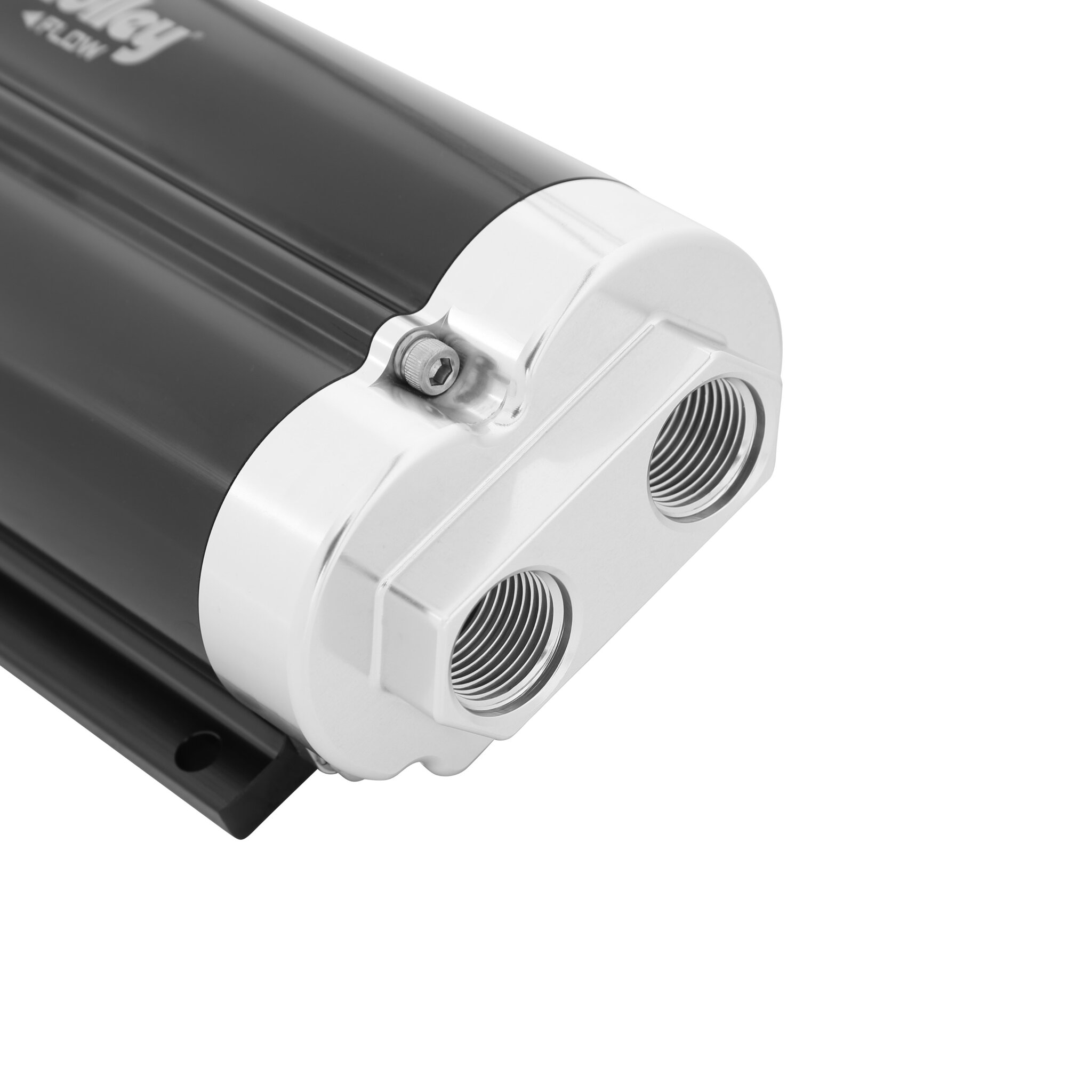

- 10 AN O-ring inlet/outlet for high flow and superior sealing
- Excellent for use with carbureted or EFI applications
- Fully submersible in-tank for custom applications, space savings and less plumbing
- Compatible with 12v to 18.5v systems for street or race use
- Compact (7.66” Long x 5” Wide x 2.5” Tall) for easy installation on frame rails or other tight areas
- Twin pump design allows the use of both pumps simultaneously or independently - second pump can be activated on demand for power adders such as nitrous or boost
- Patent pending dual pump technology
- Proven durability beyond 3,000 hours in race gas or diesel fuels
- Weighs only 5.1 lbs.
- Current draw at 43 PSI and 13.5 VDC is 17.2 Amps
- Not designed for use on aircraft of any type.
Specs
Brand
HOLLEY
Category
Electric Fuel Pump
Specs
Brand: Holley
Voltage: 12-18.5
Warning: California Proposition 65
Category: Air and Fuel Delivery
GPH@8PSI: 200
LPH@8PSI: 720
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: E85
GPH@43PSI: 156
GPH@60PSI: 140
LPH@43PSI: 590
LPH@60PSI: 530
part type: Electric Fuel Pump
Grade Type: Performance
Inlet Size: 2 x 10 AN O-Ring - 7/8-14 SAE
Inlet Type: 10 AN ORB
Application: Universal
Fuel System: EFI
Outlet Size: 10 AN O-Ring - 7/8-14 SAE
Outlet Type: 10 AN ORB
Product Type: Fuel Pump
Sub Category: Fuel Pumps and Related Components
Emission Code: 5
Free Flow GPH: 200

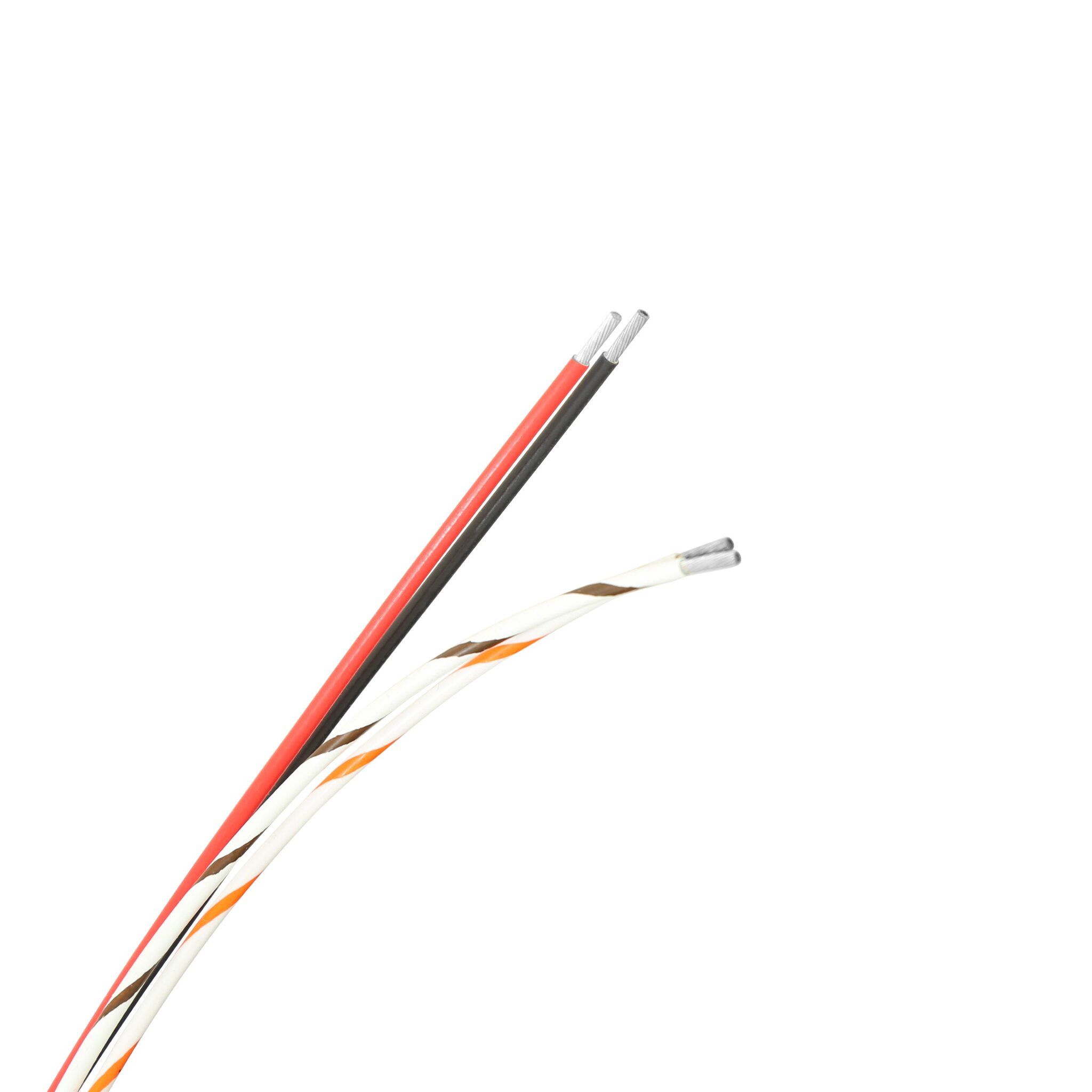

Wire Quantity: 4
Negative Ground: Yes
Outlet Quantity: 1
Pump Body Color: Black Anodized
Maximum Pressure: 80
Fuel Delivery Type: Carburetor
Regulator Included: No
Maximum Flow Rating: 200
Average Current Draw: 17.2
Internal Or External: Internal External
Gasket Or Seal Included: No
Forced Induction HP@8PSI: 1600
Forced Induction HP@43PSI: 1400
Forced Induction HP@60PSI: 1200
Inlet Fitting Thread Size: 7/8-14
Universal Or Specific Fit: Universal
Fuel Sending Unit Included: No
Outlet Fitting Thread Size: 7/8-14
Naturally Aspirated HP@8PSI: 2100
Naturally Aspirated HP@43PSI: 1800
Naturally Aspirated HP@60PSI: 1600
PDFs
PDFs
68b1a9957dadc.pdf
(946.43 KB)
