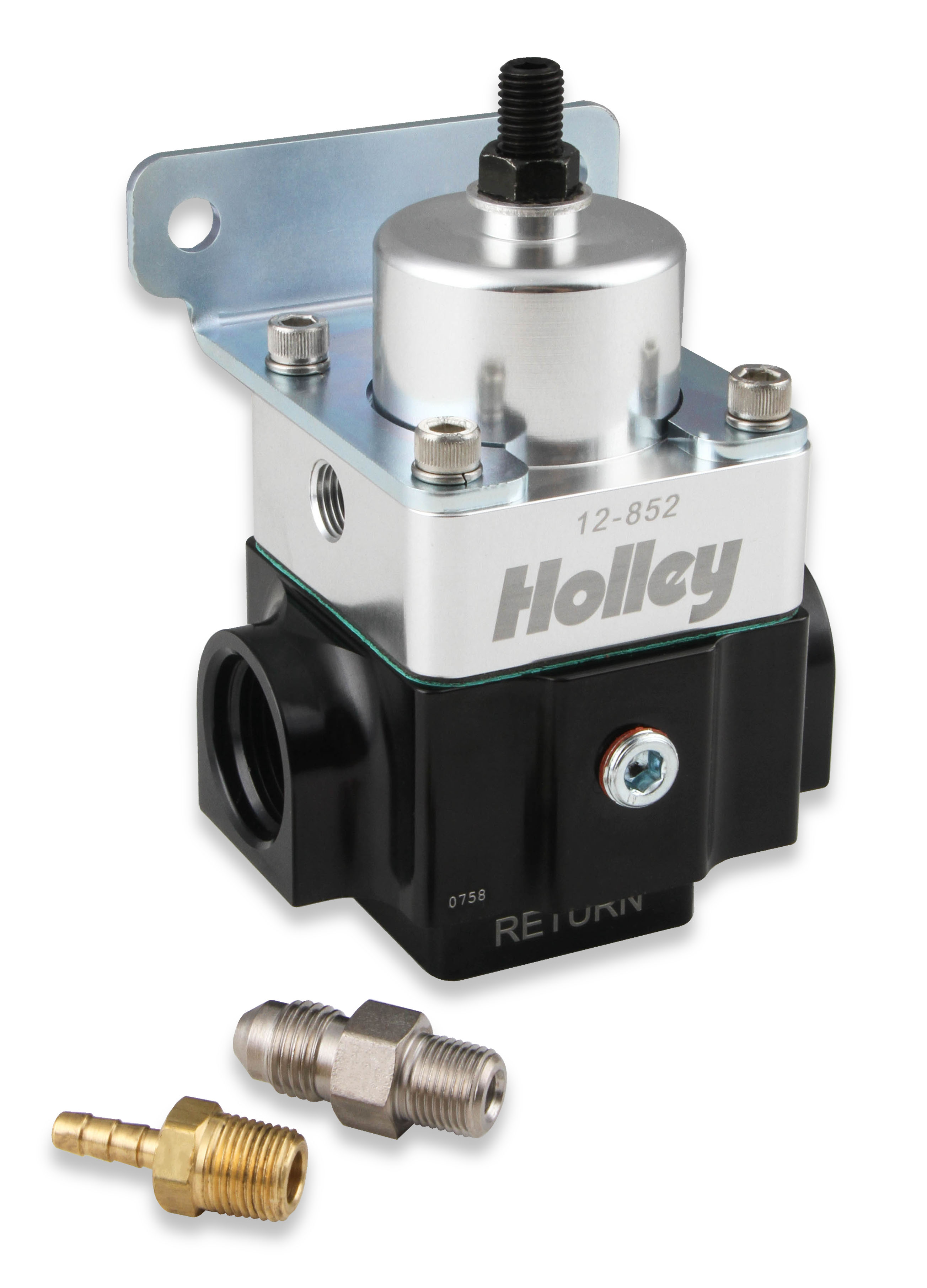

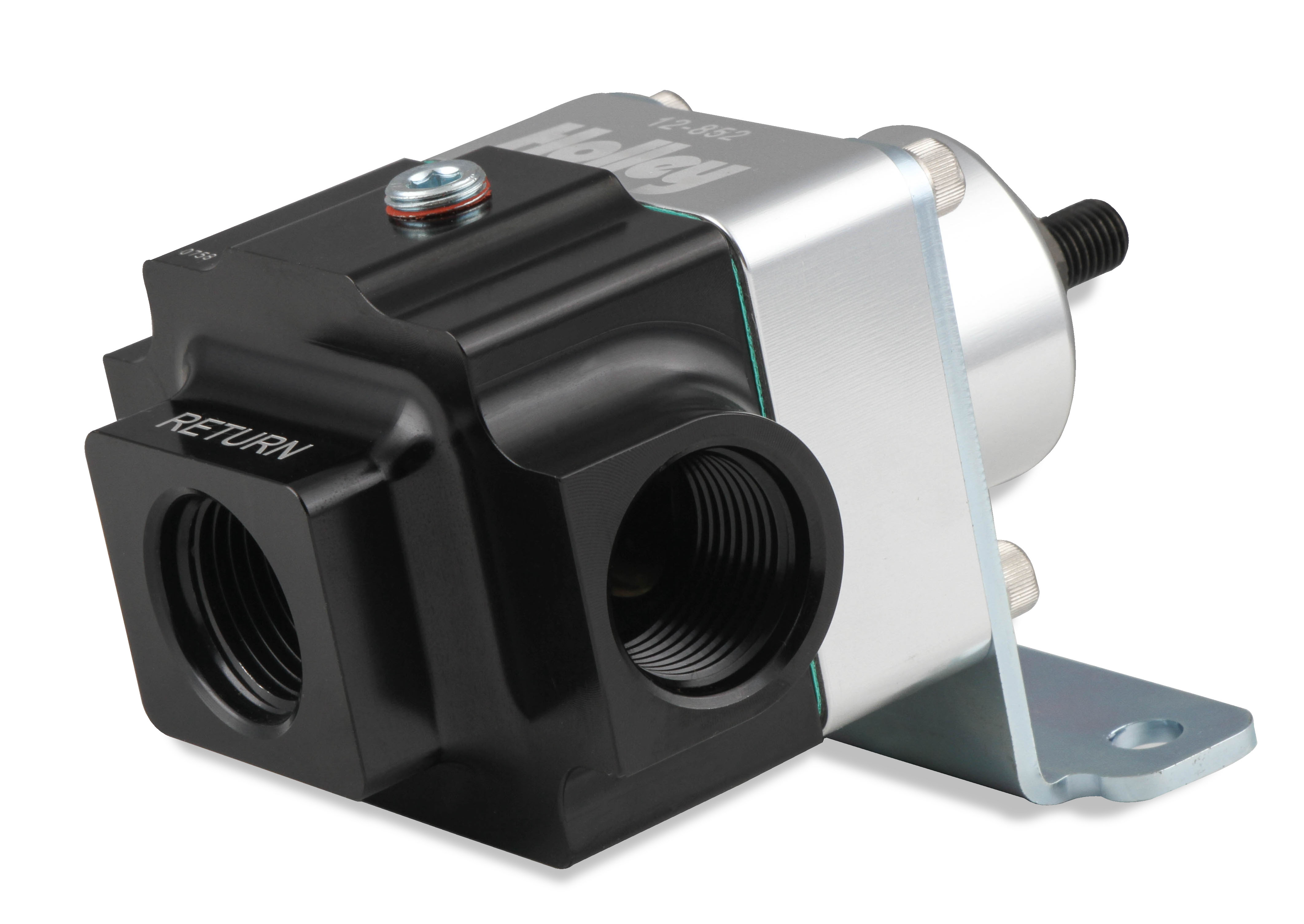

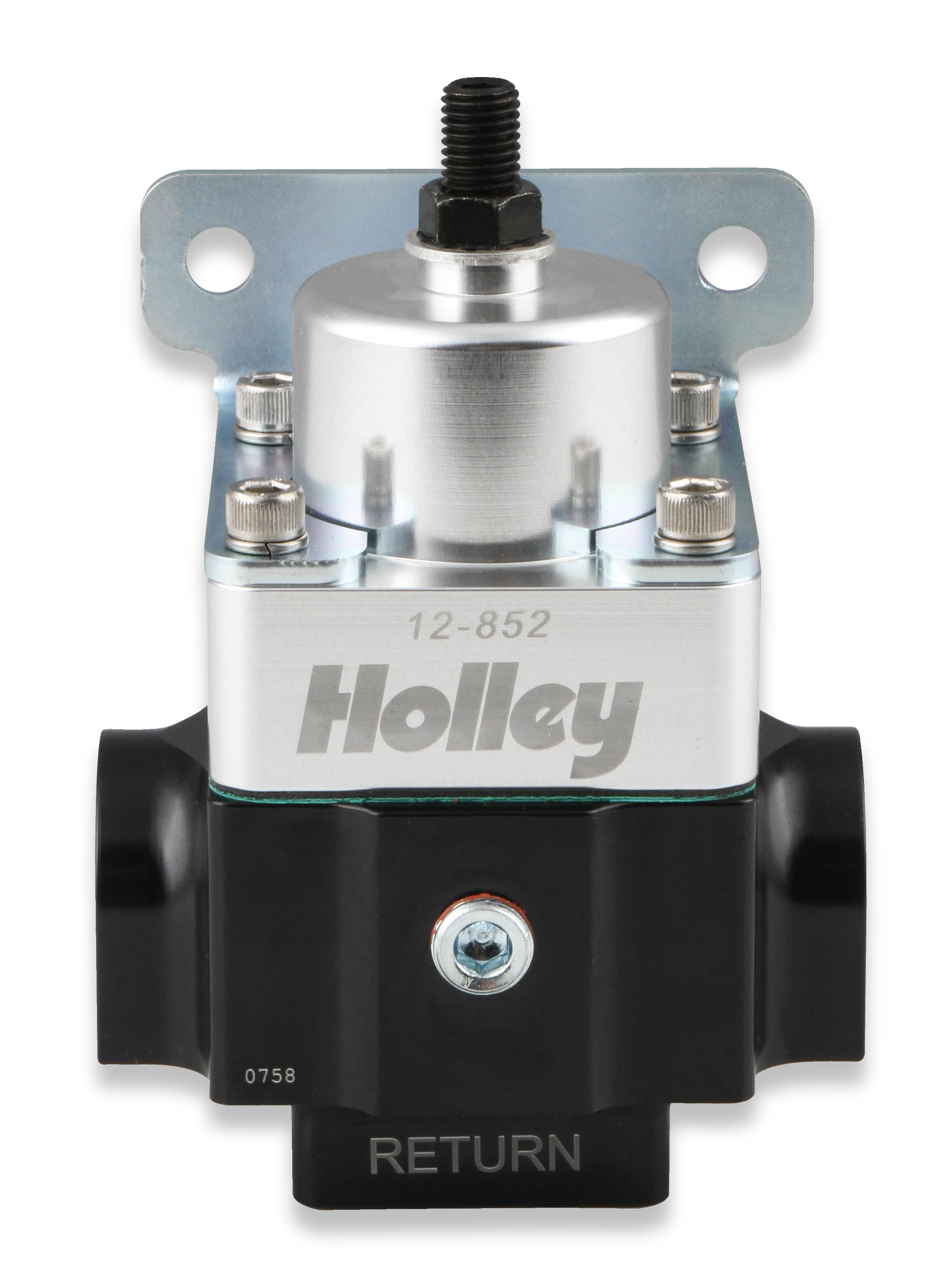

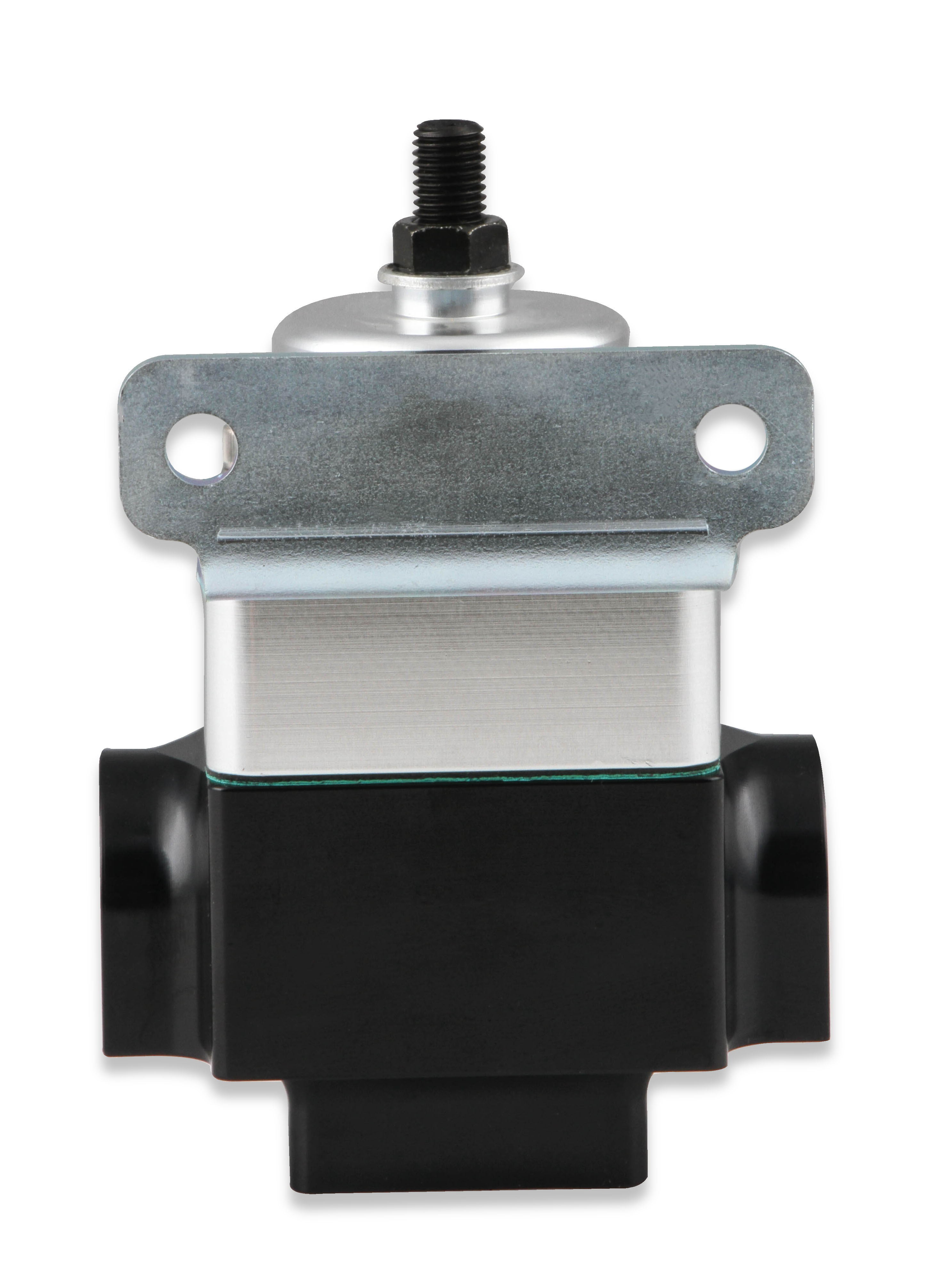

2 Port VR Series Fuel Pressure Regulator
SKU
HTPD-12-852
List price
$428.40
Price
$320.95
Description
Two Port
Low Pressure 4 to 9 PSI
Boost Reference 1:1
Features
- EFI regulators are adjustable from 40-100 PSI base pressure
- Carbureted regulators are adjustable from 4 to 9 PSI base pressure
- Compatible with gasoline, methanol, and E85* (Compatible with

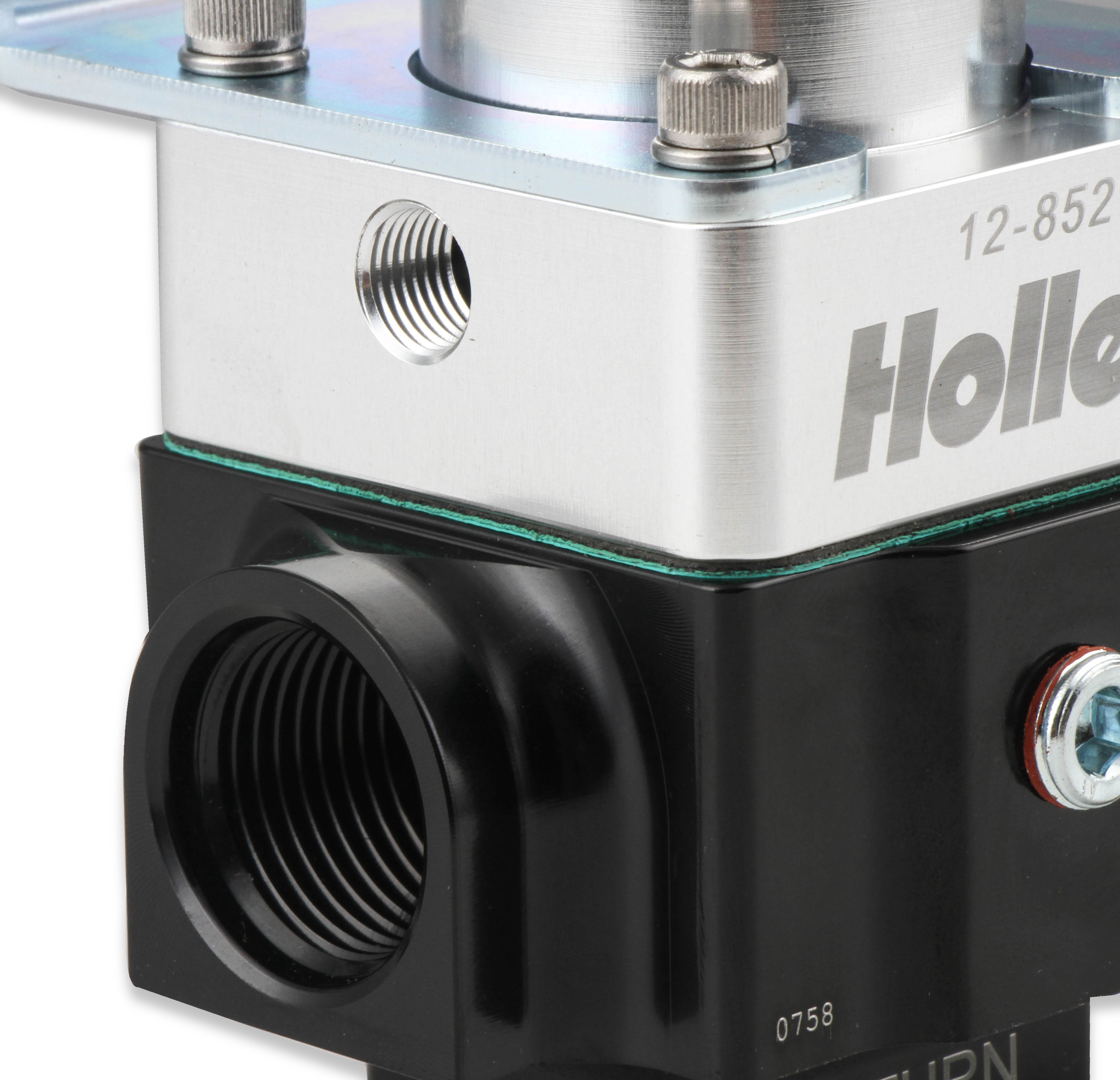

- 1/8” NPT gauge port
- Designed for use with the Holley VR1 and VR2 Brushless in-line fuel pumps

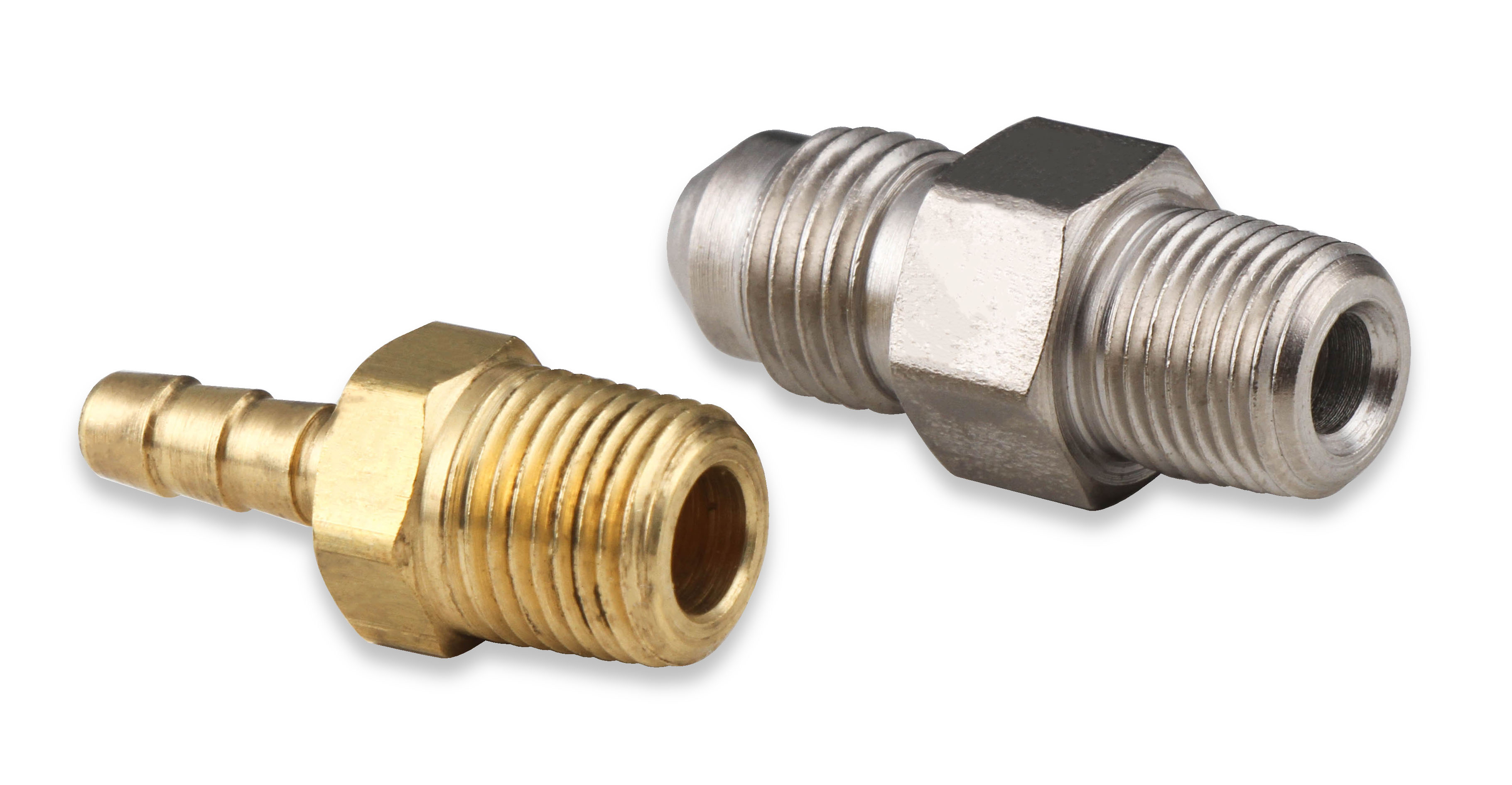

- Can be referenced on a 1:1 ratio – includes a barb fitting and a -4 AN fitting for reference connection
- 2 port regulators feature a 10 AN O-ring inlet/outlet and return
- 4 port regulators feature a 10 AN O-ring inlet and return with (4) 8 AN O-ring outlets
Specs
Brand
HOLLEY
Category
Fuel Pressure Regulator
Specs
Brand: Holley
Color: Black Anodized
Style: EFI
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: Methanol
part type: Fuel Pressure Regulator
Adjustable: Yes
Grade Type: Performance
Inlet Type: 10 AN ORB
Fuel System: Carbureted
Outlet Type: 10 AN ORB
Rebuildable: Yes
Return Size: 10 AN O-Ring
Inlet Gender: Female
Product Type: Fuel Pressure Regulator
Sub Category: Carburetion
Emission Code: 5
Mounting Type: Inline
Outlet Gender: Female
Port Quantity: 2
Gauge Included: No
Pressure Range: 4-9 PSI
Maximum Pressure: 9
Minimum Pressure: 4
Gauge Port Included: Yes
Inlet Port Diameter: 10 AN ORB
Inlet Port Quantity: 1
Outlet Port Diameter: 10 AN ORB
Outlet Port Quantity: 2
Vacuum Port Quantity: 1
Mounting Bracket Included: Yes
