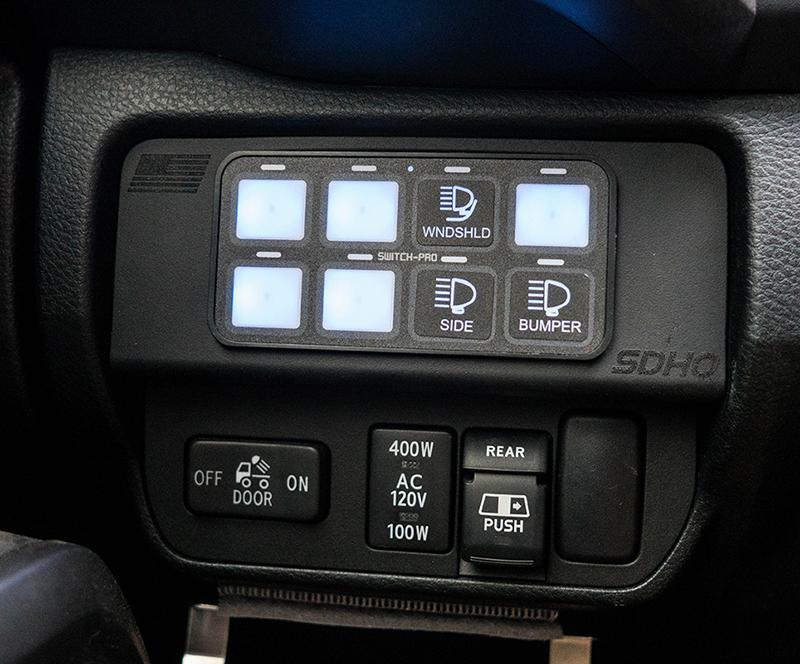

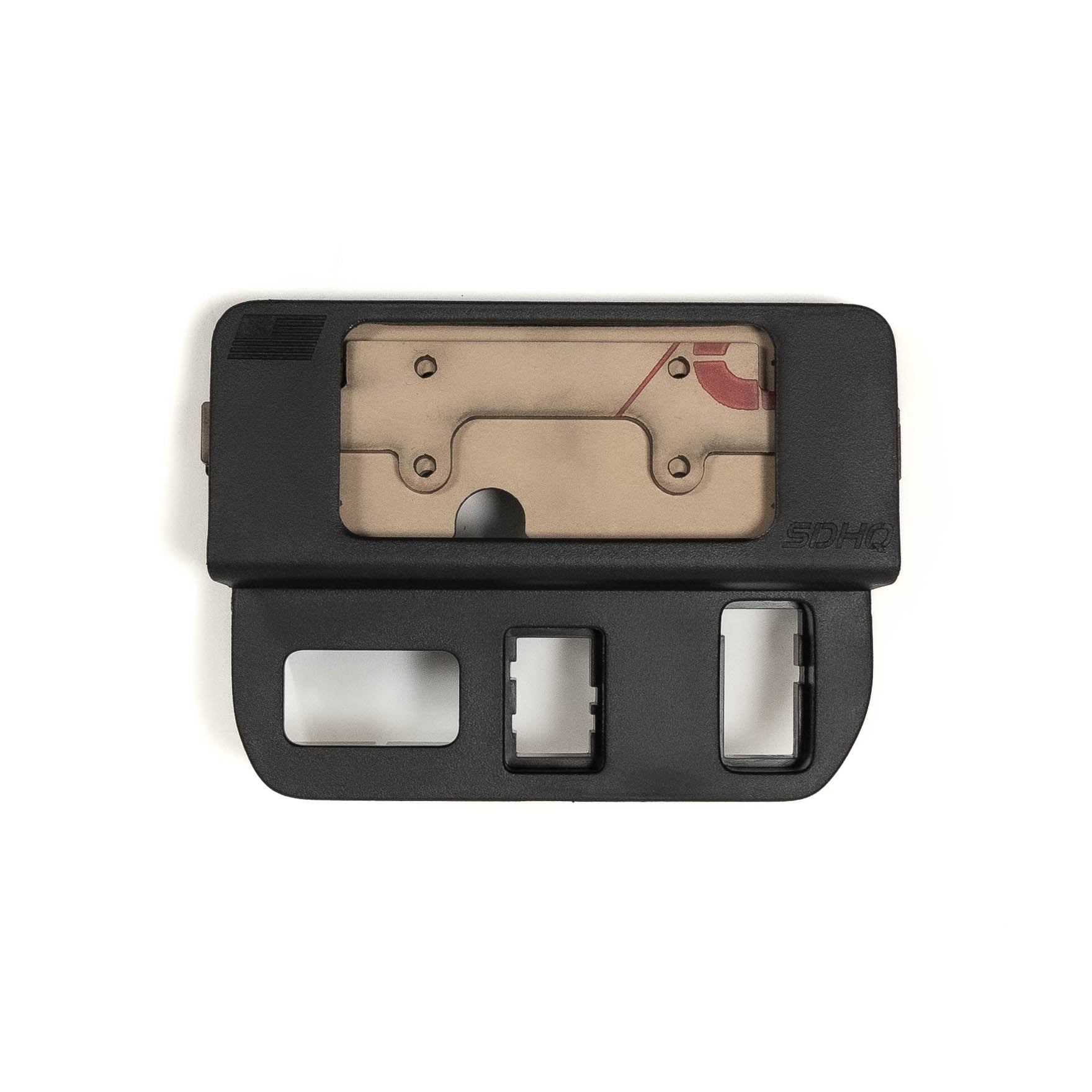

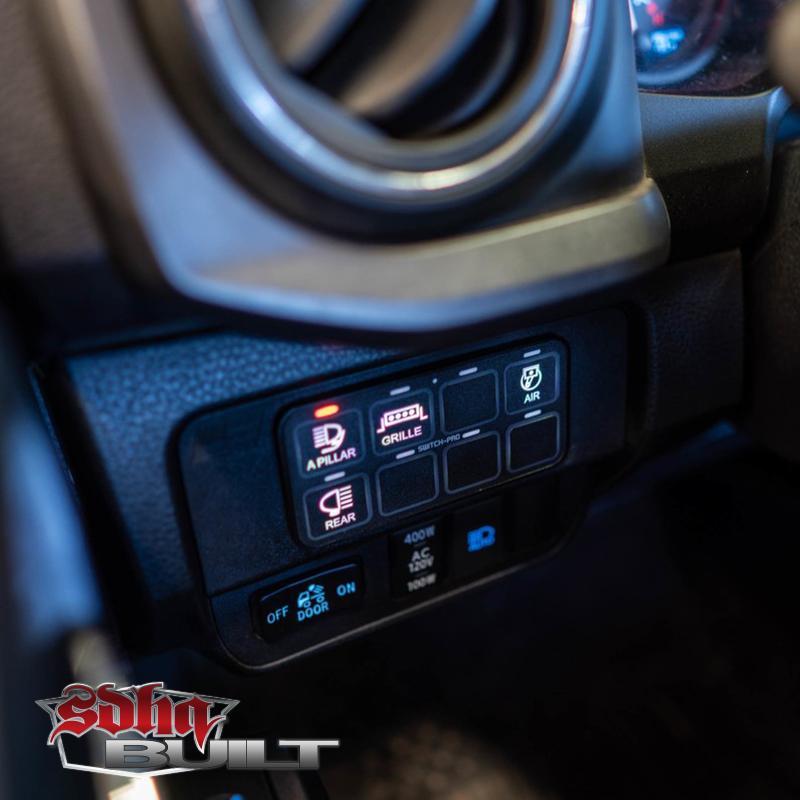

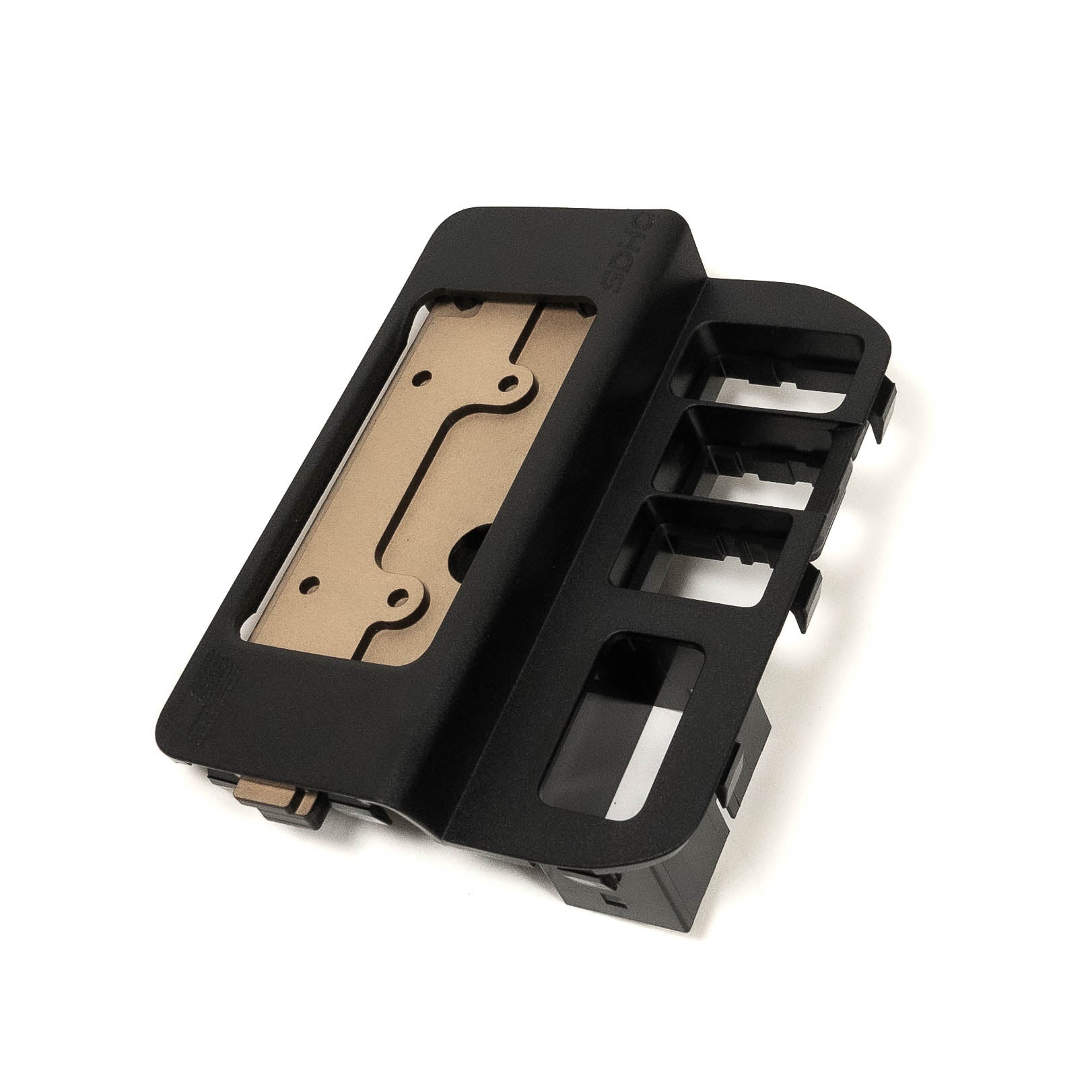

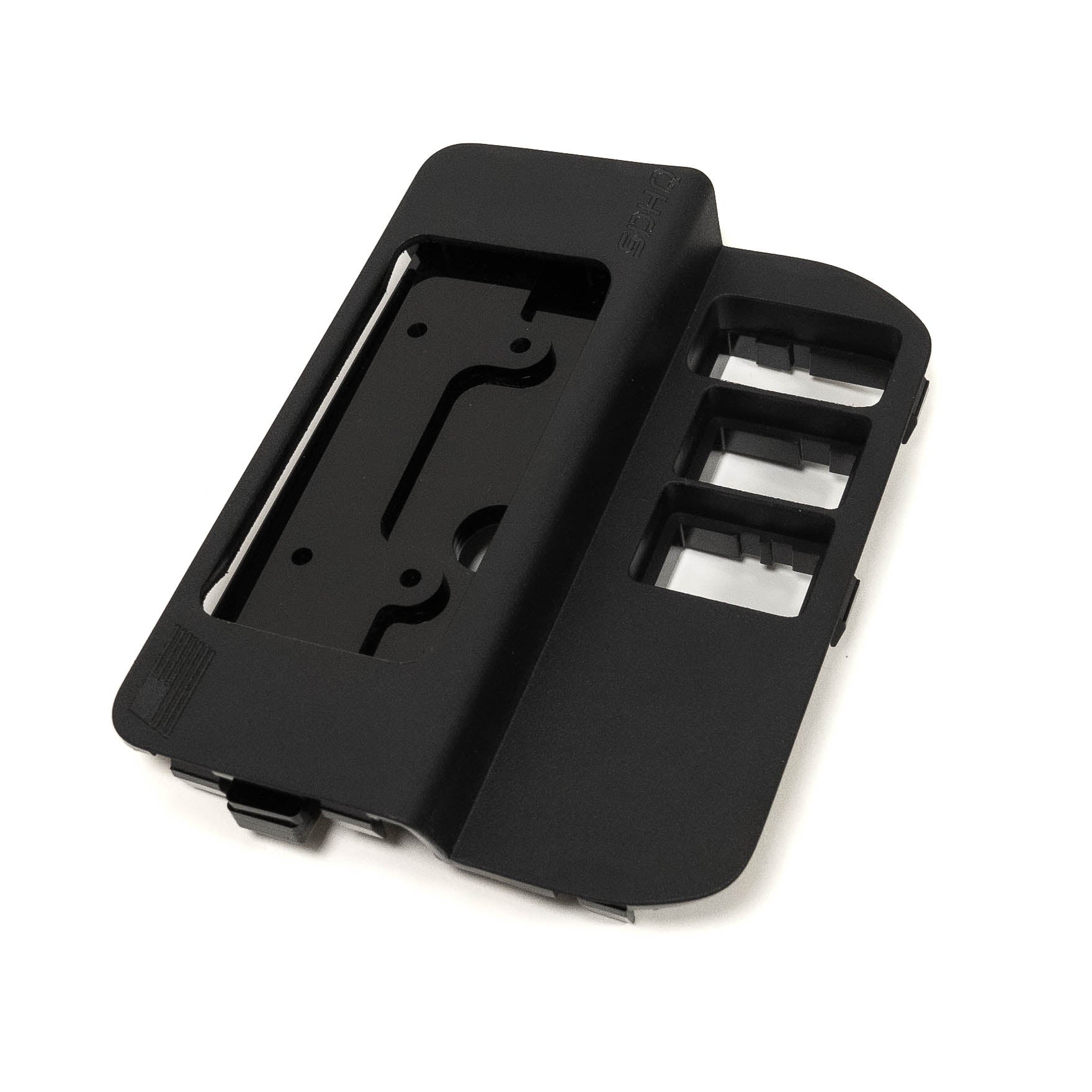

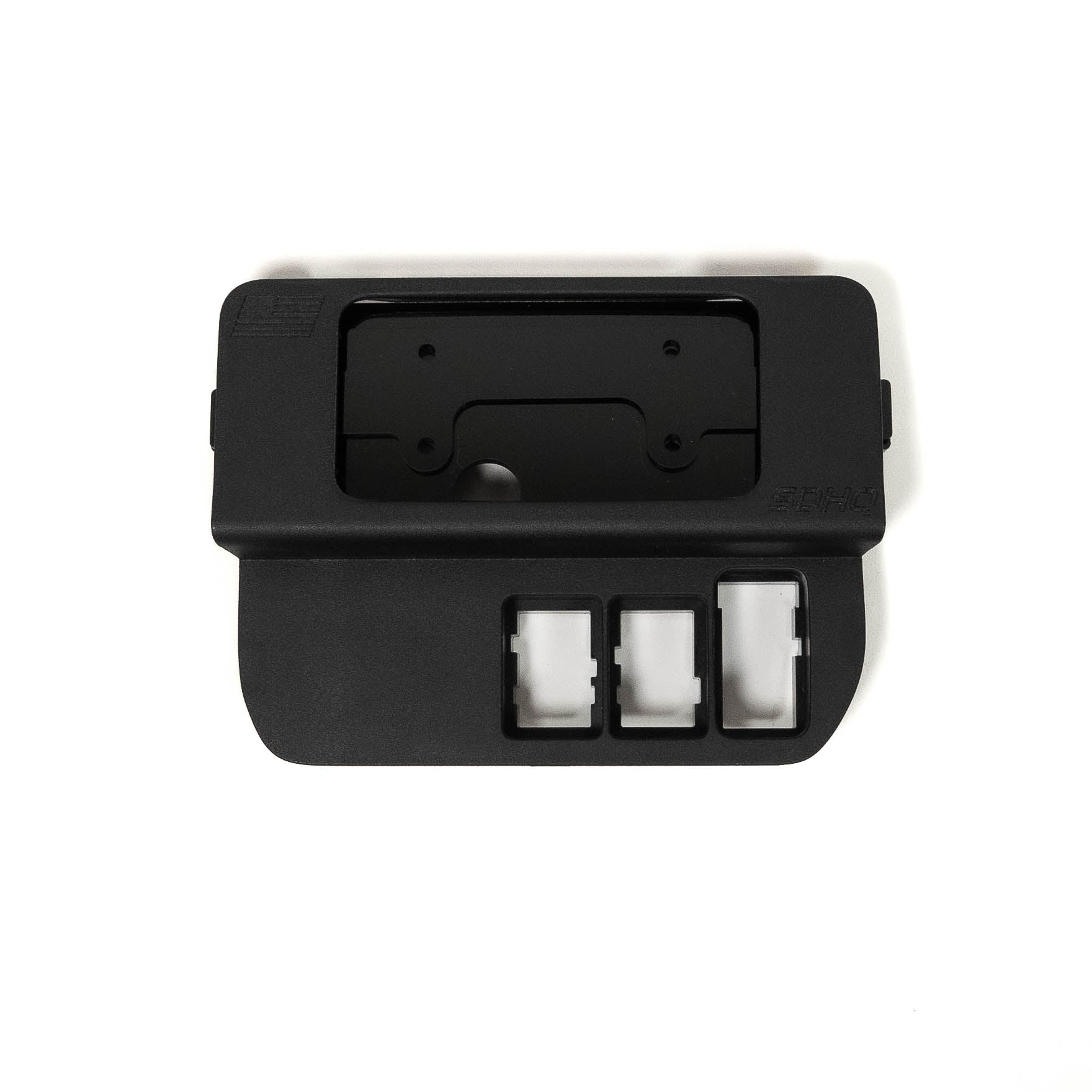

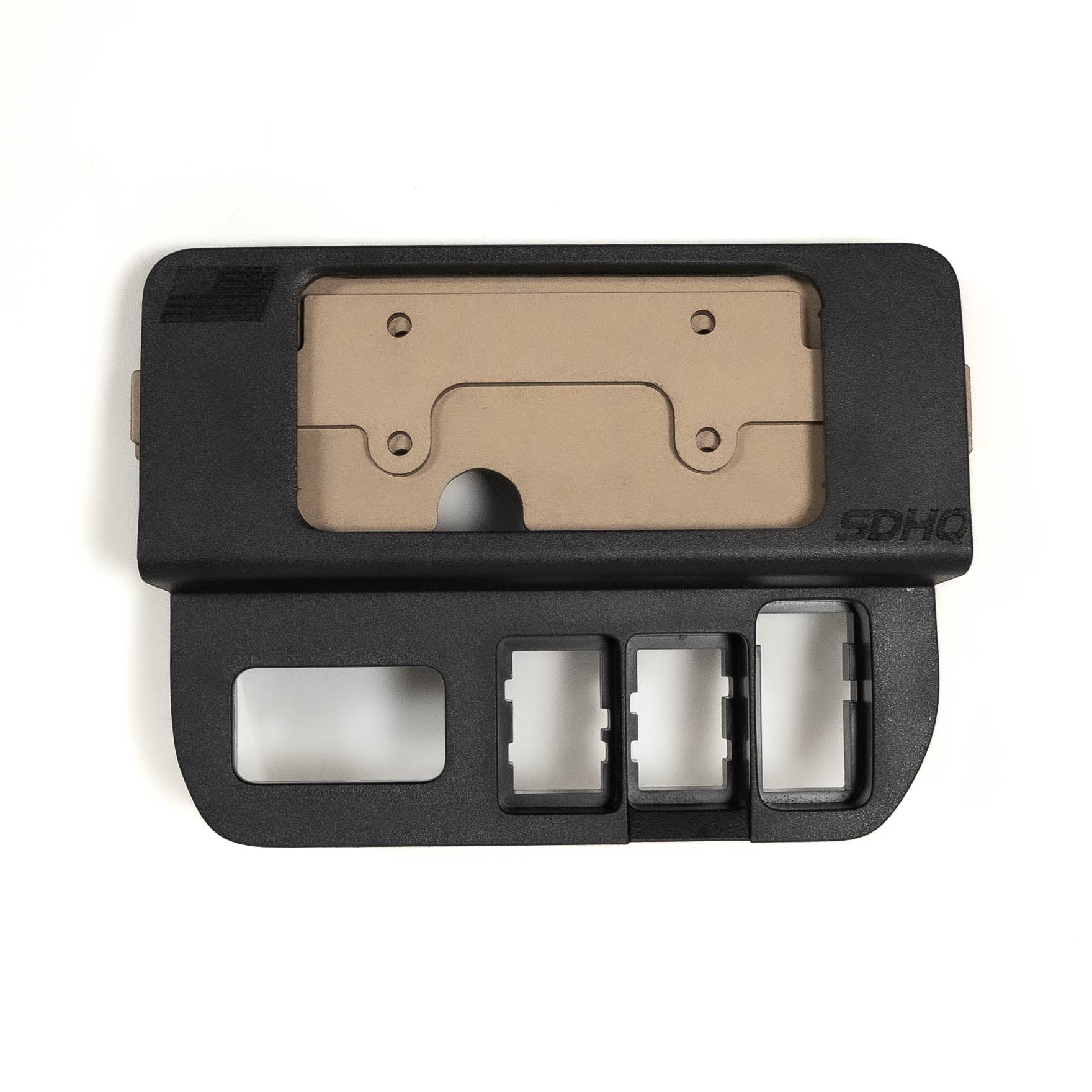

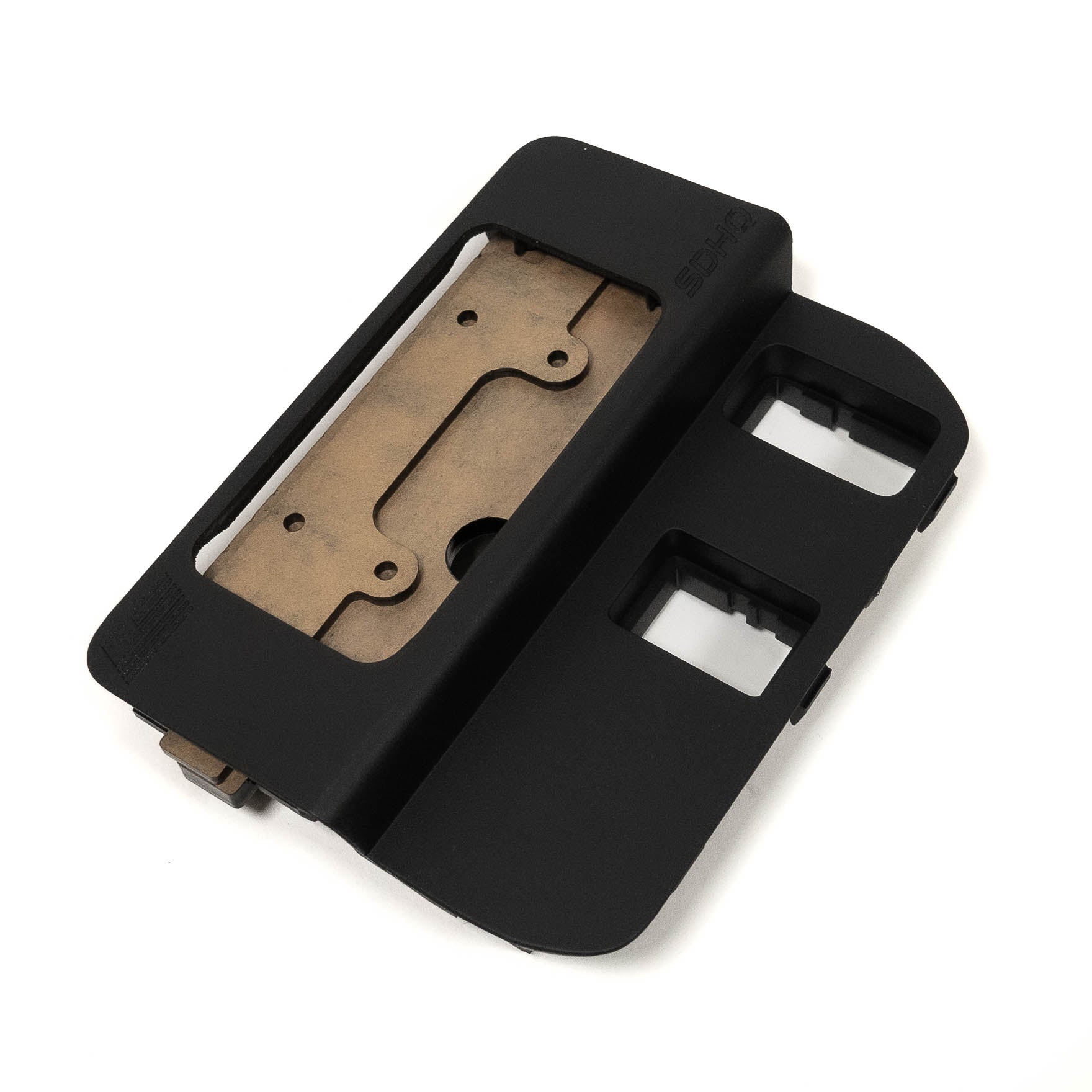

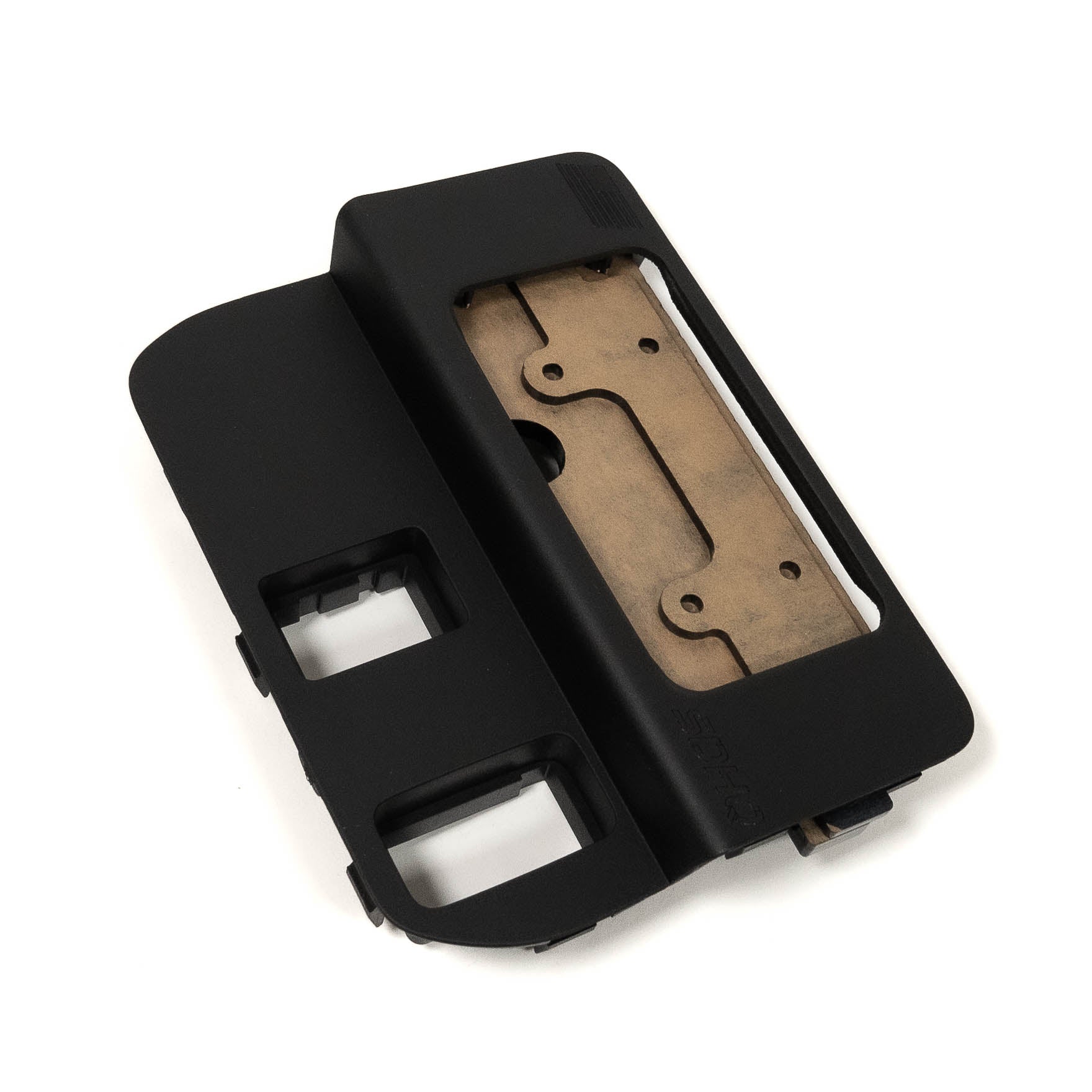

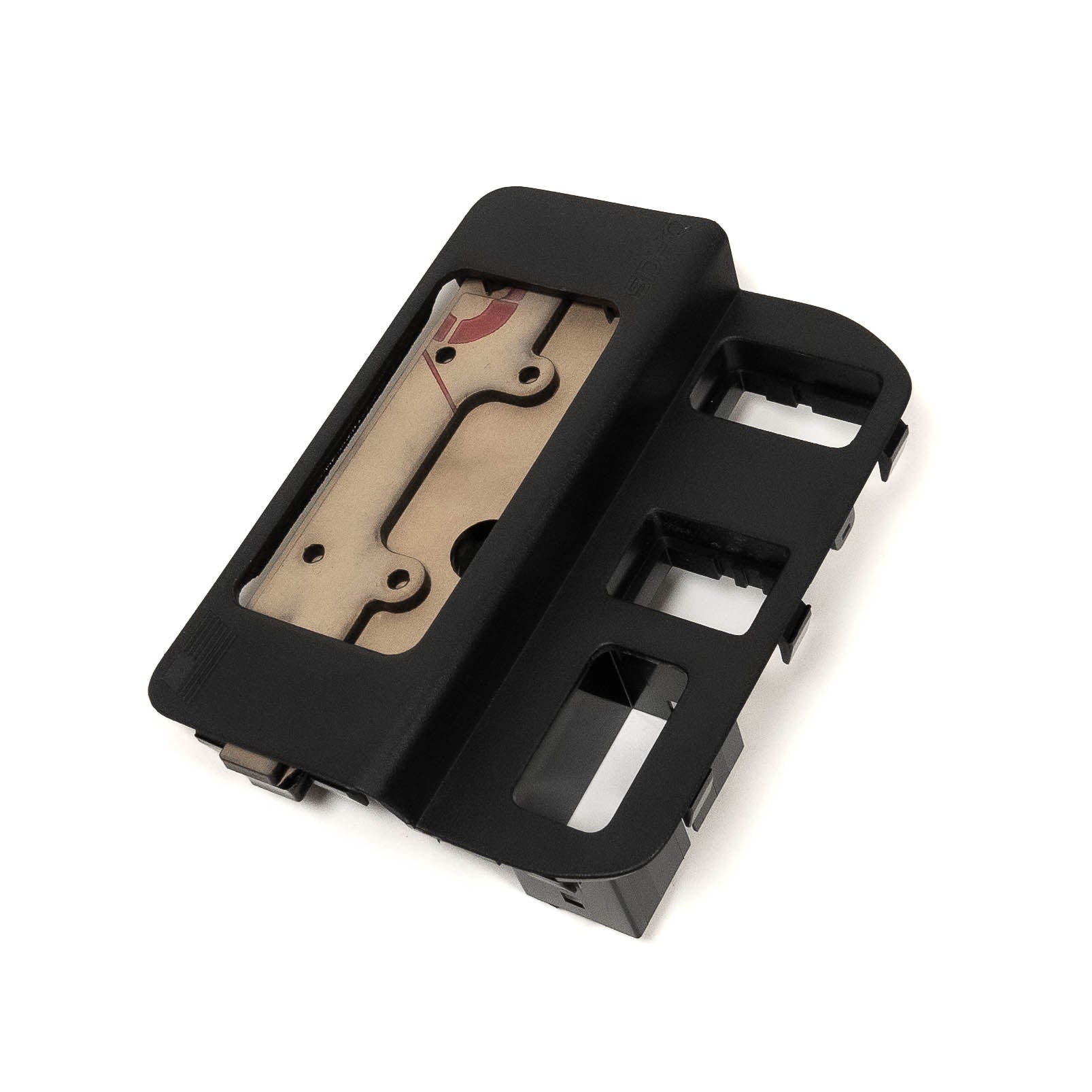

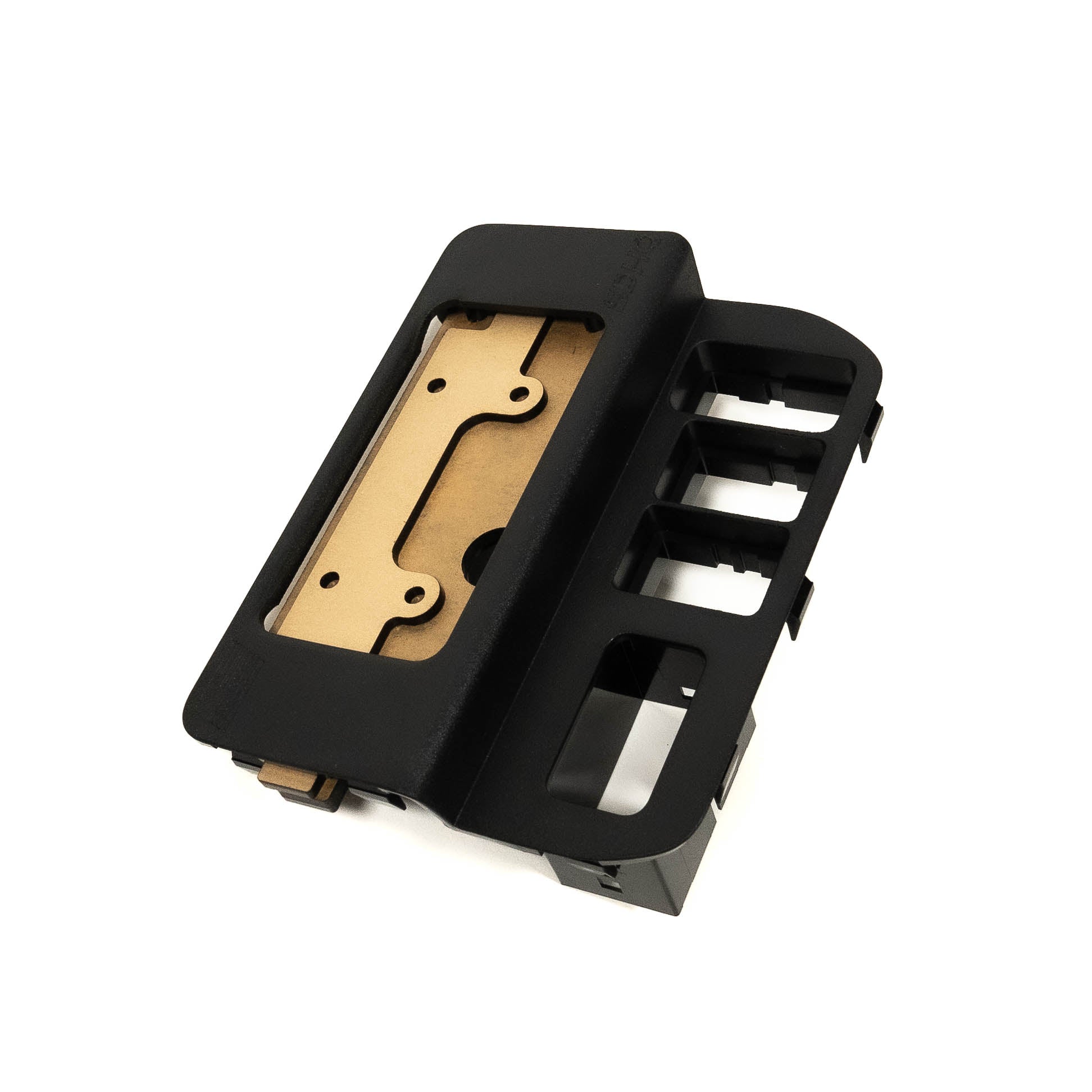

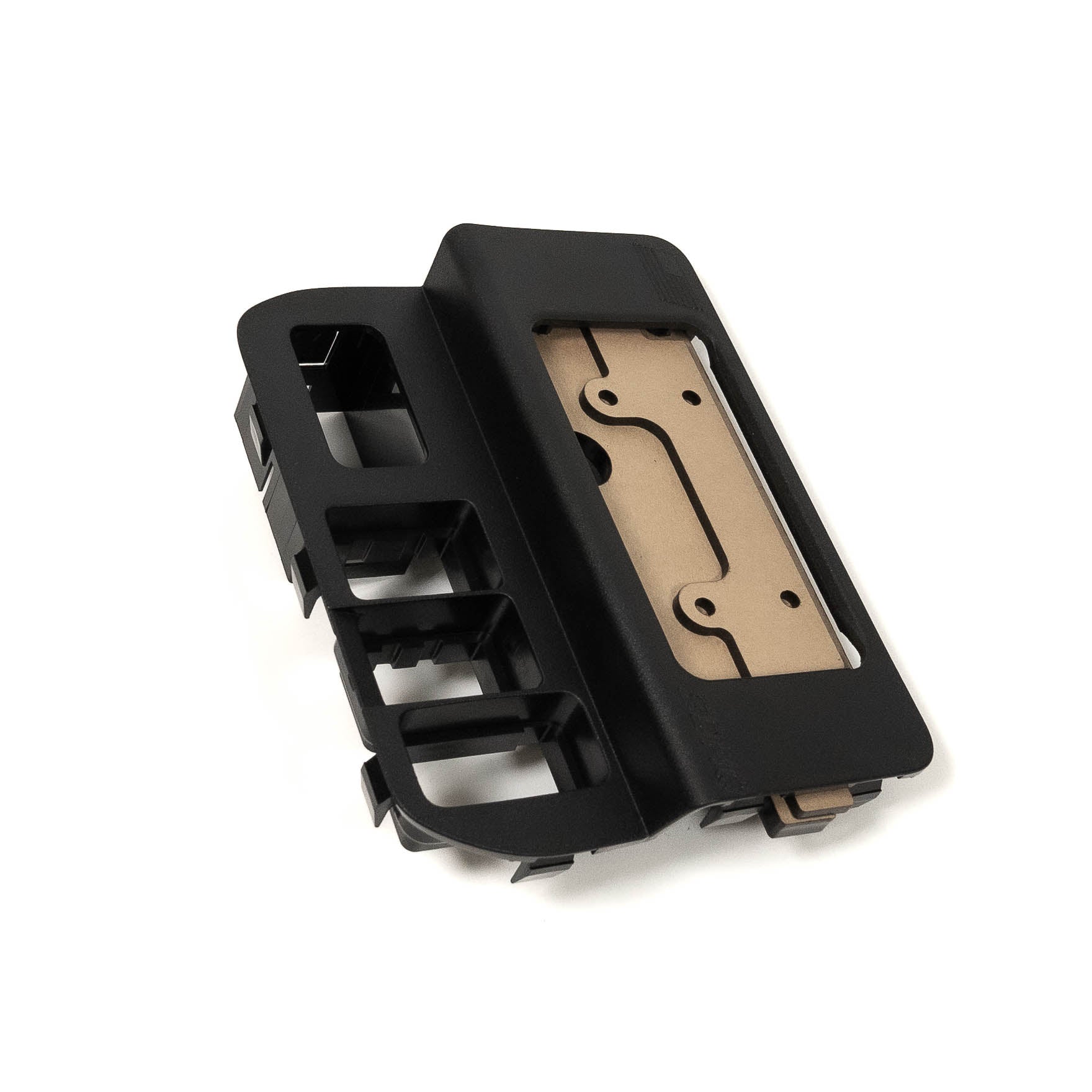

Our Switch Pros Power Panel Mount for your 2016-2019 (3rd Gen) Toyota Tacoma allows you to mount your SP-9100 without cutting up your Tacoma's interior. We take an OEM Toyota Tacoma panel, and CNC laser cut the panel to fit an SP-9100 without losing the function of your OEM buttons and switches.

Key Features:

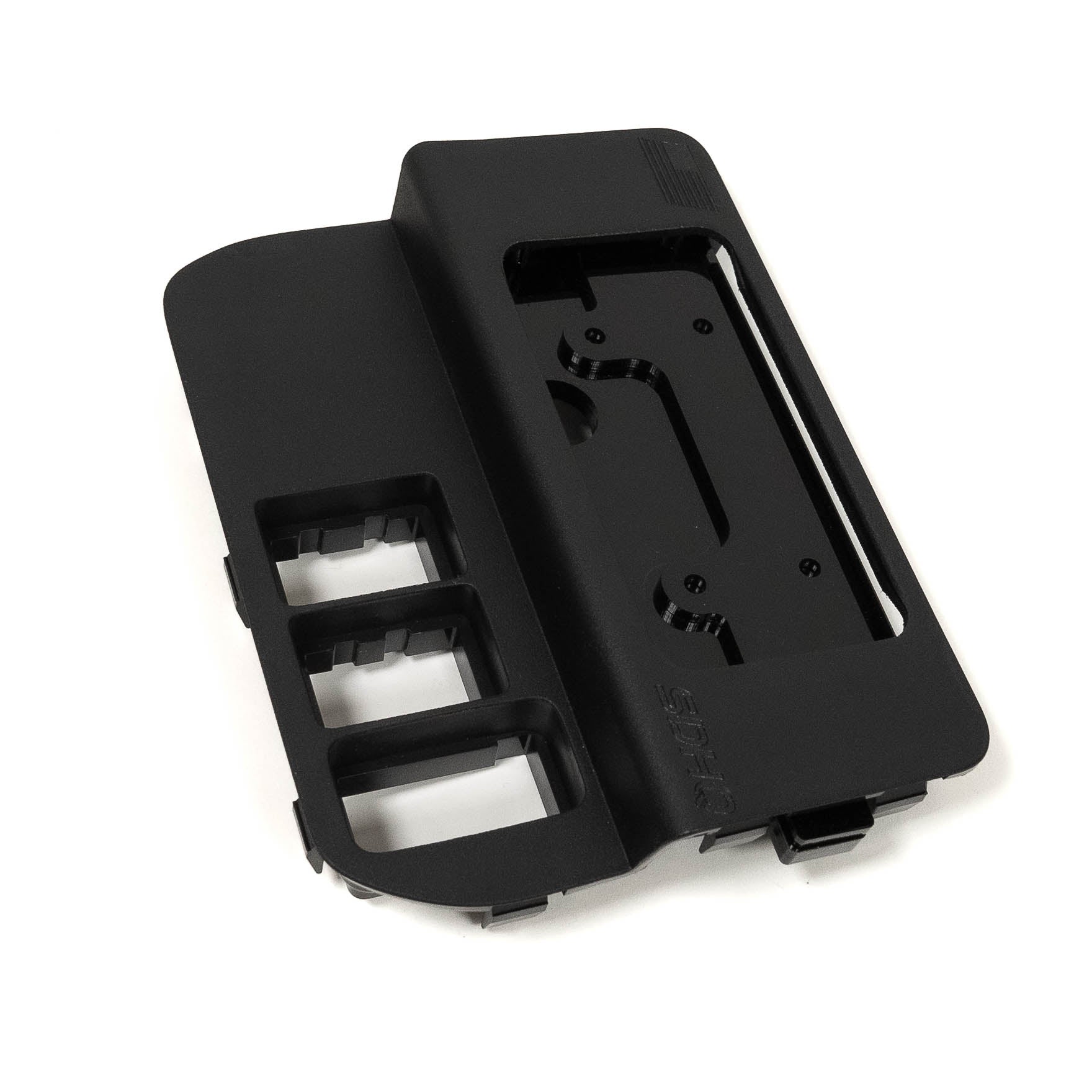

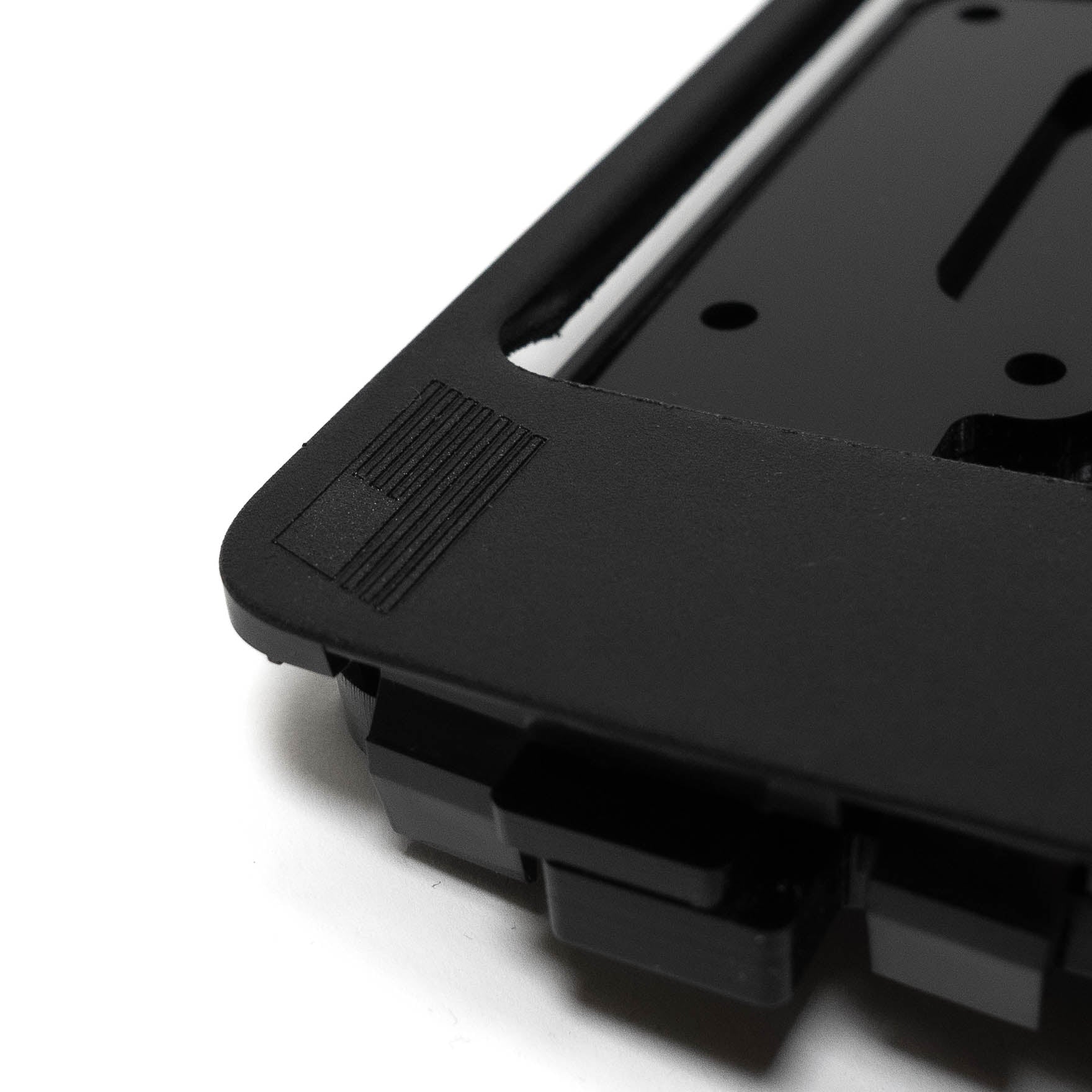

• CNC Laser cut and etched factory Toyota panel
• Direct Replacement for your Tacoma's OEM switch panel
• CAD Designed by SDHQ
• Designed for a tight fit with Switch Pros Bezel Mount Panels
• Does not fit RCR Touch 8

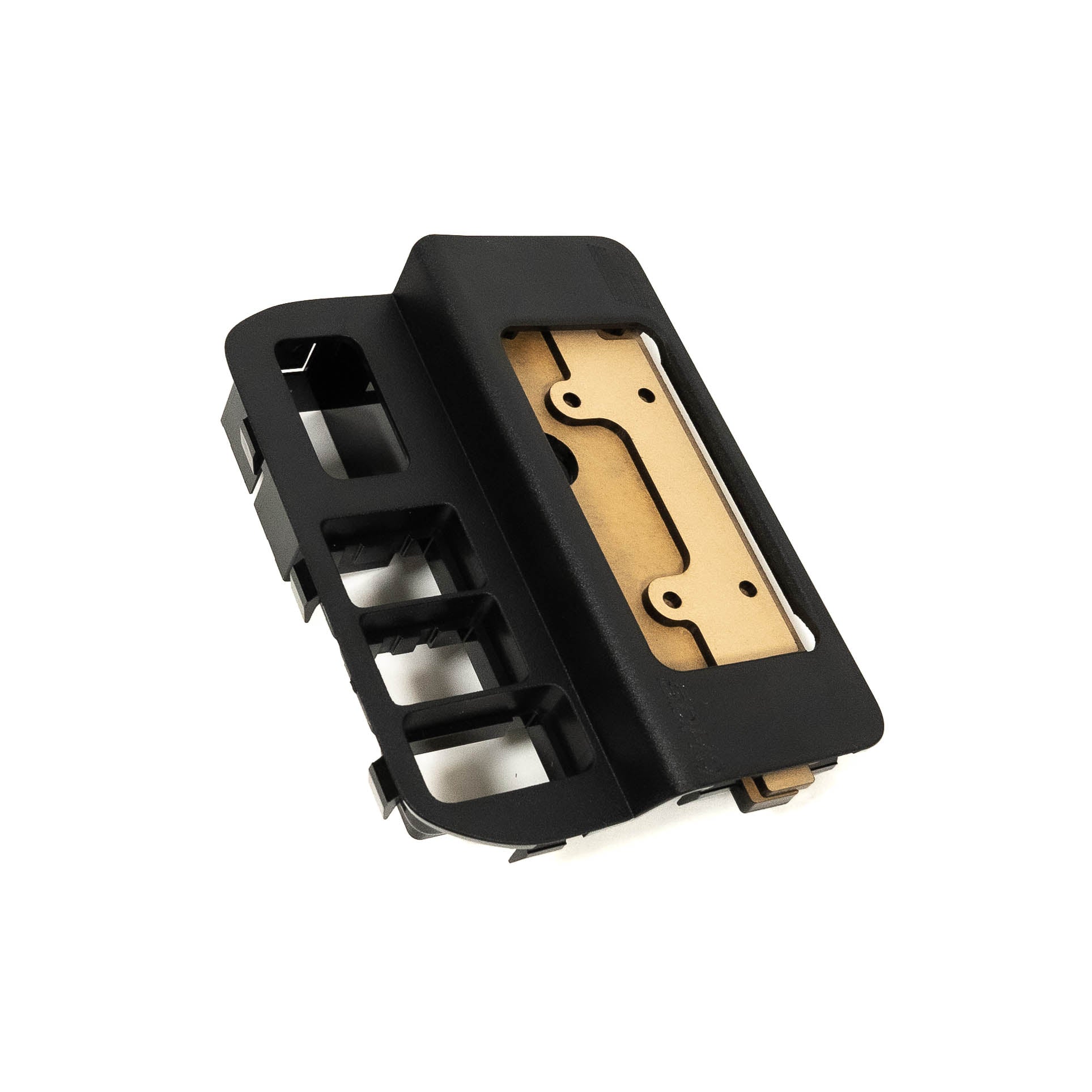

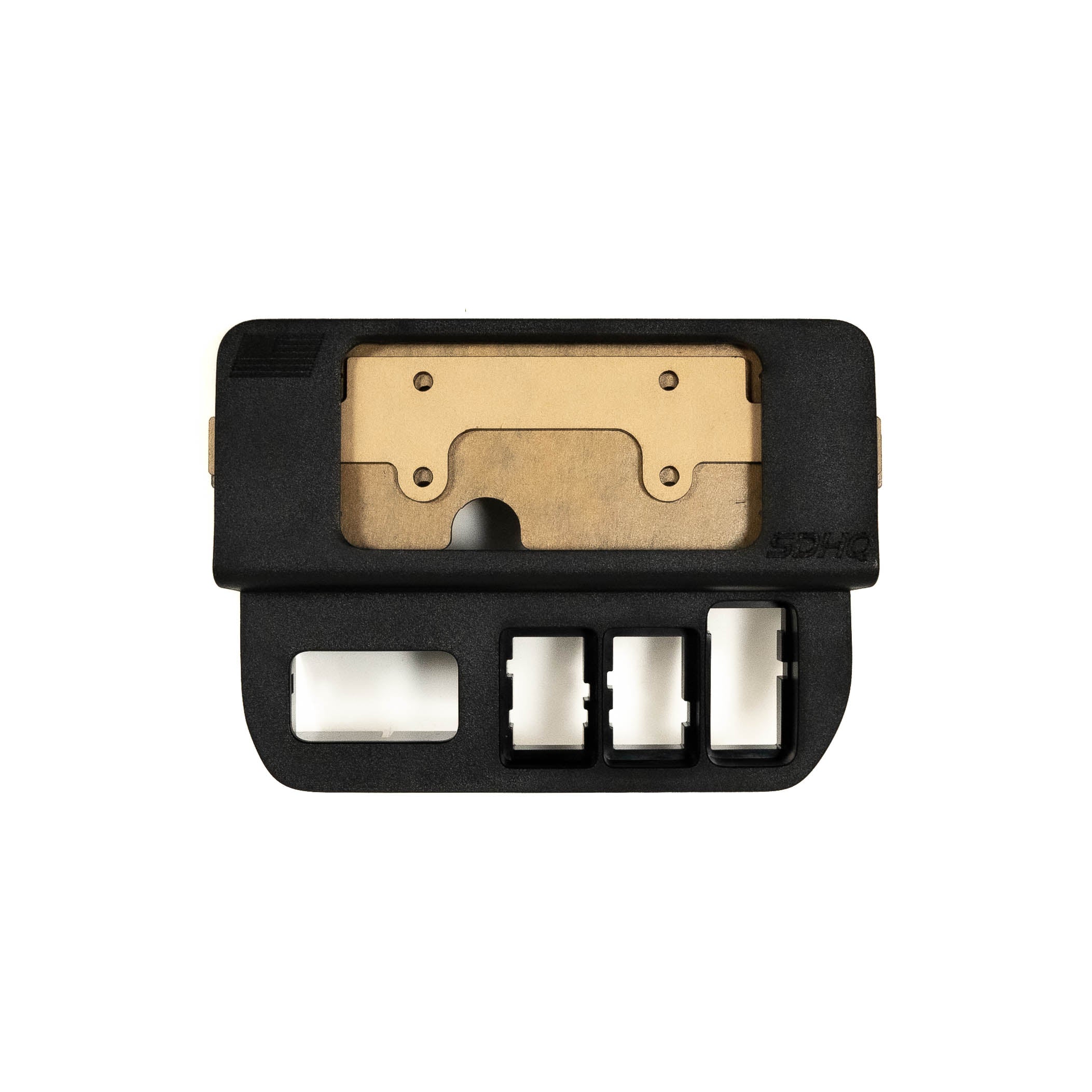

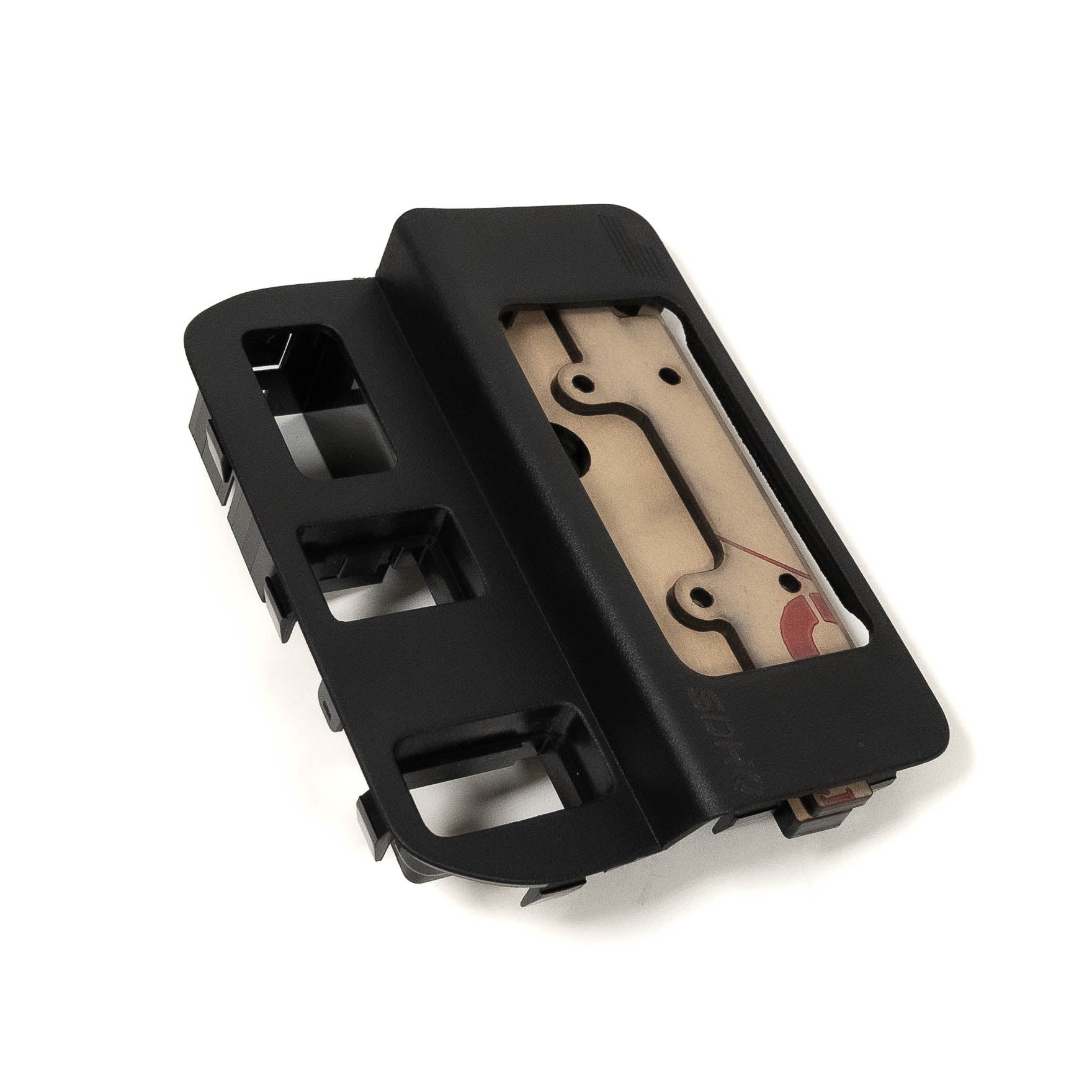

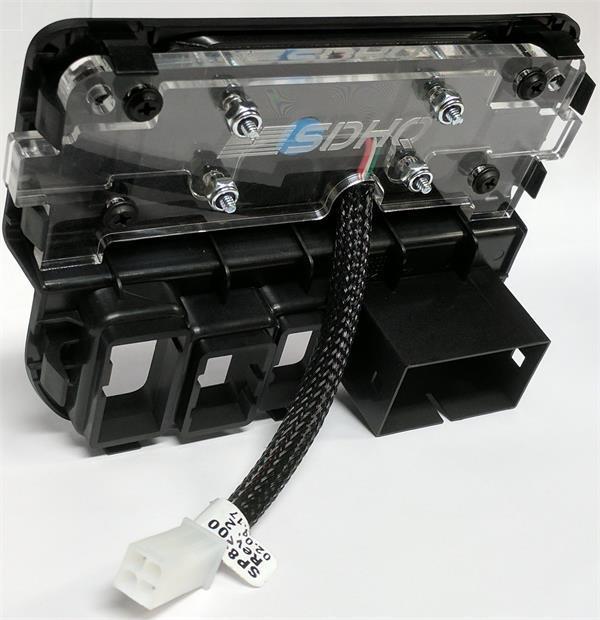

• Included Reinforcement Backing Plate System
  • Increases panel clip holding pressure
  • Clamps switch panel into dash panel making it sturdy and theft resistant.
  • Eliminates the chance of hardware vibrating loose

Switch Pros SP-9100 Overview:

Putting an end to dashboard clutter is easy, with the Switch-Pro 9100 Switch Panel Power System. Featuring eight user-programmable switches, this compact panel is the most advanced and versatile on the market. Now featuring RGB backlighting, dimming for lighting outputs, external trigger to activate up to 2 outputs and a battery voltage display on app screen.

The switch Pros App Compatible with iPhone and Android based Smartphones, you can command your vehicle accessories with the touch of your handset screen.

Key Features:

• Eight user-programmable switches
• Four 35A circuits and four 18A circuits
• Waterproof, Solid State 125A Power Module
• RGB Backlighting provides unlimited color options, using Color Picker on App
• Daisy Chain up to 3 Switch Panels to One Power Module
• Color Coded circuit wires
• 100 User-selectable switch legends
• LED Input Status Indicators for easy troubleshooting
• Time Delay Off function available for all circuits
• Splash proof switch panel with Polycarbonate overlay faceplate
• Program and control the system from switch panel pad or smartphone
• Bluetooth interface with FREE Apple or Android App
• Battery Voltage Readout on App screen
• No Fuses or Bulky Relay box
• Built-In Bluetooth Module

Switch Panel Specs:

• RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
• Built-In Bezel Style Switch Panel enclosure measures 4 Inch L x 2 Inch W x .375 Inch H; includes concealed mounting hardware for factory-look installation
• Orange LED switch indicators
• 100 Selectable User Legends

Power Module Specs:

• 8 Outputs: 4 rated at 35A, 4 rated at 18A
• 125A maximum rating
• Waterproof and Solid State
• 6 Inch L x 3 Inch W x .5 Inch H (excluding connectors)
• LED Input Status Indicators for easy troubleshooting
• Underhood rated 125 Degrees to -40 DegreesC

Kit Also Includes:

• 11 Inch of Communication Cable between Switch Panel and Power Module
• Color Coded Output wires
• Wire harness with Waterproof, sealed automotive grade connectors
• Power Cable with 125A inline fuse

Switches can be programmed to be:

• On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
• Memory Function
• Master Mode, with the ability to turn multiple outputs On AND Off with one touch
• Automatic Power-Up upon vehicle startup
• Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
• Lighting outputs can dim from 100 percent to 10 percent, with the ability to dim during Flash or Strobe patterns
• Sleep Mode for minimal power consumption

There is also a programming function to adjust the brightness of backlighting and indicator LEDs.
