140 GPH Black® Electric Fuel Pump
SKU
HTPD-712-815-1
List price
$457.95
Price
$406.95
Description
Marine Carbureted Applications Compatible with Gasoline Only
Features
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow.
- Improved design for street/strip applications
- Distinctive “Black” logo
- Not designed for use on aircraft of any type.
- Flows 140 GPH (free flow)
- Flows 120 GPH at 9 psi
- Maximum pressure is 14 psi
- 3/8” NPT inlet and outlet ports
- Fuel pressure regulator is required (recommend Holley P/N 12-704 for gasoline)
- Motor draws only 4 amps current
- 7 1/2 amp fuse recommended
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs

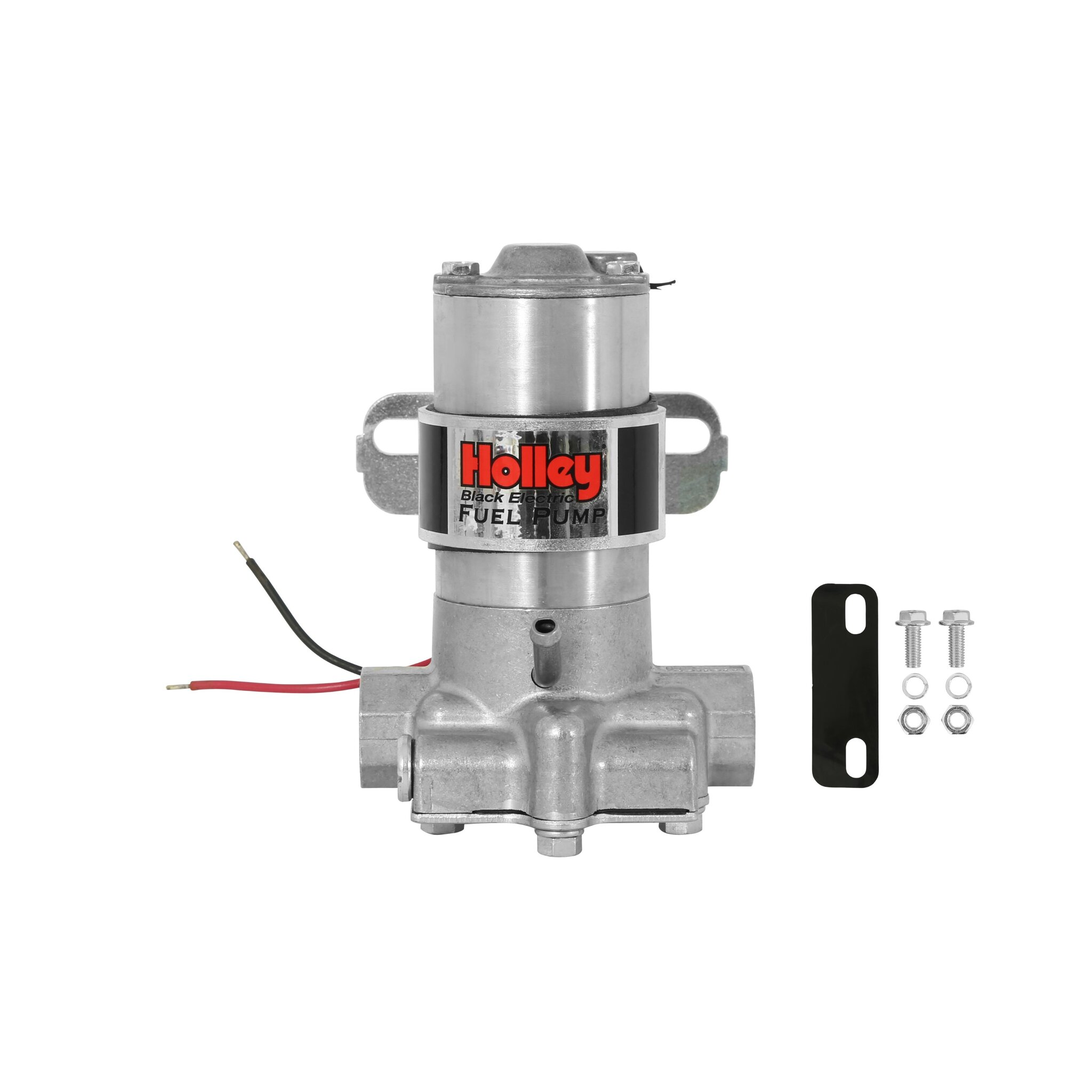

- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
- Meets U.S. Coast Guard regulations
- Includes Fuel/vapor tube
Specs
Brand
HOLLEY
Category
Electric Fuel Pump
Specs
Brand: Holley
Voltage: 12
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: Gasoline
part type: Electric Fuel Pump
Grade Type: Performance
Inlet Size: 3/8 inch NPT
Inlet Type: NPT
Application: Marine
Fuel System: Carbureted
Outlet Size: 3/8 inch NPT
Outlet Type: NPT
Motor Finish: Silver
Product Type: Fuel Pump
Sub Category: Fuel Pumps and Related Components
Bracket Color: Silver
Emission Code: 5
Free Flow GPH: 140
Free Flow LPH: 530
Wire Quantity: 2
Fuel Pump Type: Electric
Negative Ground: Yes
Outlet Quantity: 1
Pump Body Color: Silver
Maximum Pressure: 14
Fuel Delivery Type: Carburetor
Regulator Included: No
Maximum Flow Rating: 140
Internal Or External: External
Maximum Amperage Draw: 4
Gasket Or Seal Included: No
Inlet Fitting Thread Size: 3/8
Universal Or Specific Fit: Universal
Fuel Sending Unit Included: No
Outlet Fitting Thread Size: 3/8
PDFs
PDFs
68b2328f9e130.pdf
(813.88 KB)
