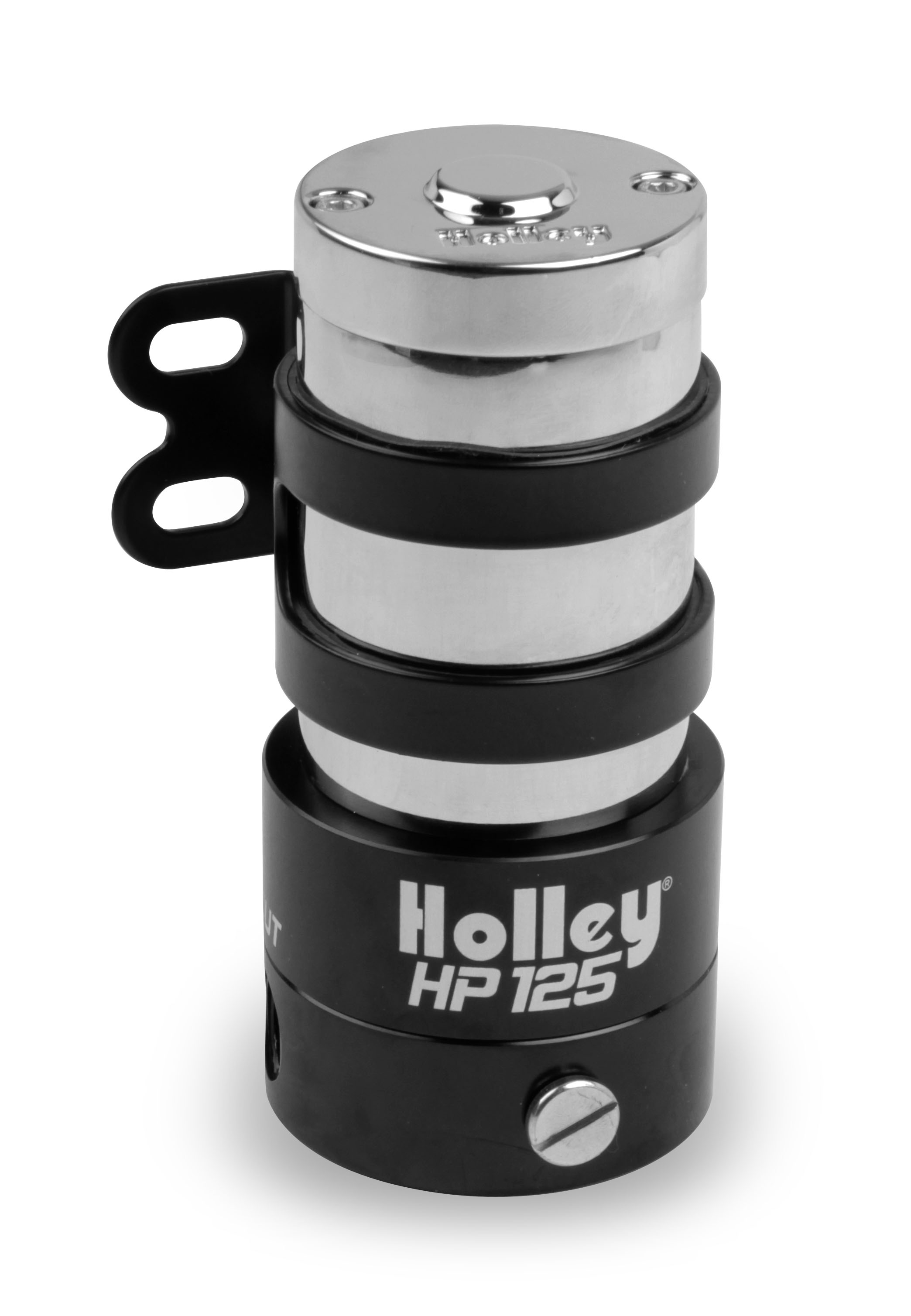

125 GPH HP Fuel Pump
SKU
HTPD-12-125
List price
$491.95
Price
$436.95
Description
Street/Strip Carbureted Applications
Compatible with Gasoline, Alcohol or E85
Features
- Gerotor design for smooth operation and durability

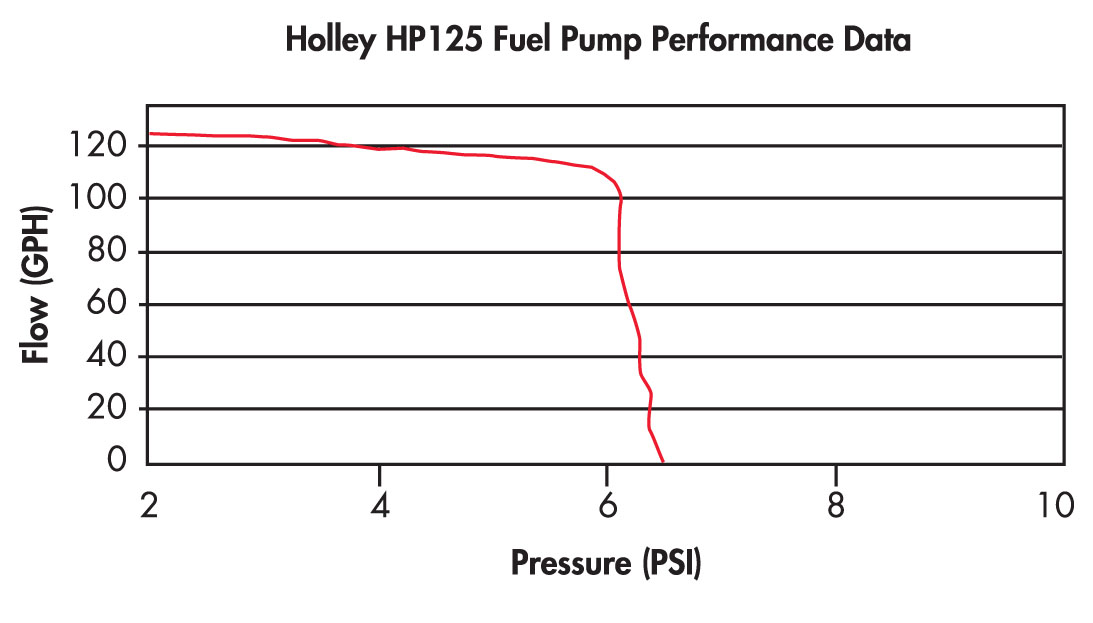

- Flows 125 GPH free flow
- Flows 110 GPH at 7 psi
- Powers engines from stock all the way up to 700 horsepower (Gasoline)
- Not designed for use on aircraft of any type.
- 3/8" NPT inlet & outlet fittings
- Black mil-spec nickel PTFE hard anodized billet base
- Show quality chrome 12v motor
- Profiled black powdercoated mounting bracket
- Laser engraved Holley logo & inlet/outlet markings
- Less noise than traditional vane pumps
- 6 1/4" tall
- Compatible with gasoline or alcohol
- Relay kit P/N 12-753 recommended
Specs
Brand
HOLLEY
Category
Electric Fuel Pump
Specs
Brand: Holley
Voltage: 12
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: Gasoline
Grade Type: Performance
Inlet Size: 3/8 inch NPT
Inlet Type: NPT
Application: Universal
Fuel System: Carbureted
Outlet Size: 3/8 inch NPT
Outlet Type: NPT
Motor Finish: Chrome
Product Type: Fuel Pump
Bracket Color: Black
Emission Code: 5
Free Flow GPH: 125
Free Flow LPH: 473
Wire Quantity: 2
Negative Ground: Yes
Outlet Quantity: 1
Pump Body Color: Black Anodized
Maximum Pressure: 7
Fuel Delivery Type: Carburetor
Regulator Included: No
Maximum Flow Rating: 125
Internal Or External: External
Gasket Or Seal Included: No
Inlet Fitting Thread Size: 3/8
Universal Or Specific Fit: Universal
Fuel Sending Unit Included: No
Outlet Fitting Thread Size: 3/8
PDFs
PDFs
68b1a49b4e0e5.pdf
(753.03 KB)
