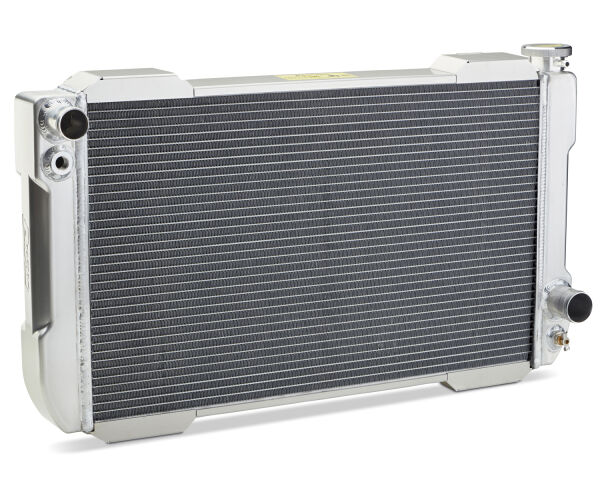

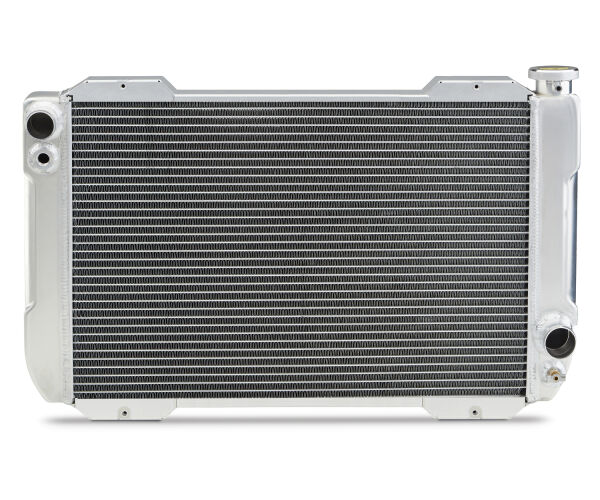

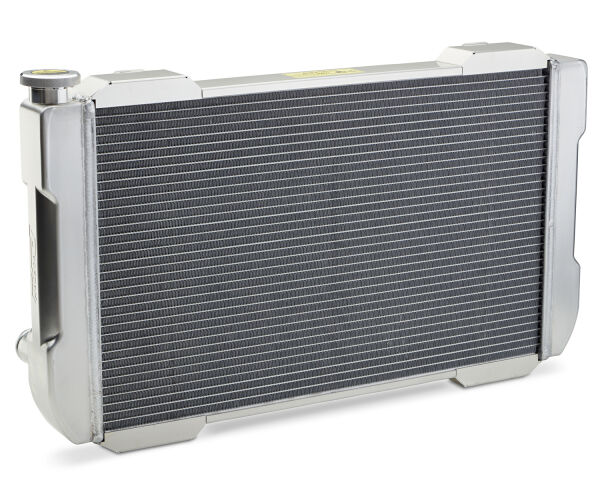

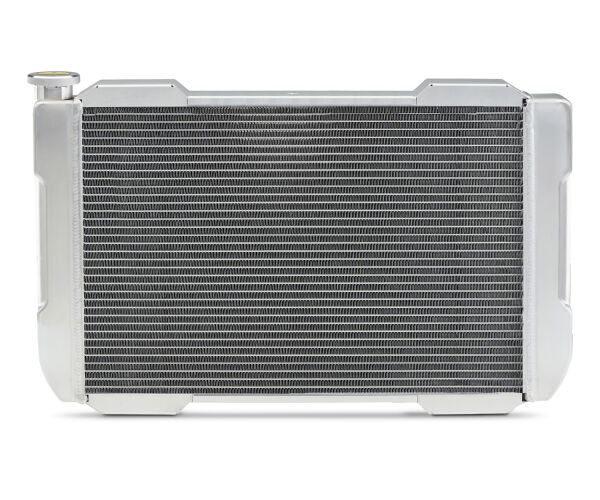

Proform's new modular 1-2-3 Series Radiators and Accessories fit together just like they should, nice and easy! Start with this 17 wide core Stage 1 Radiator, part no. 117F000 as the foundation for your cooling system. These aren't just your ordinary single pass radiators, they offer beautifully tig-welded tanks, and a slick profile thanks to Proform's unique Four-Corner Design.

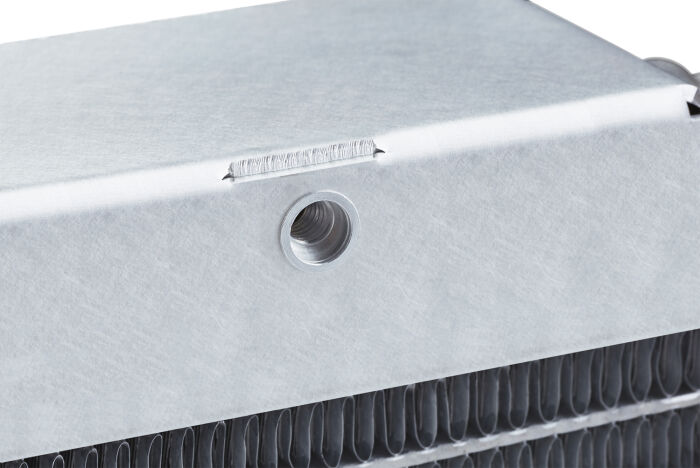

The Four-Corner Design makes it easy to attach the exact fit Stage 2 Fan Shroud, part no. 1171S00, because the mounting holes line up, making installation a breeze with the included hardware. For the ultimate professional look at DIY costs, take the 1-2-3 Series Stage 3 fan, part number 67014 or 67018, and mount it up to the pre-threaded holes in the shroud; then top it off with a fan controller to make life easy. It s easy as 1-2-3!

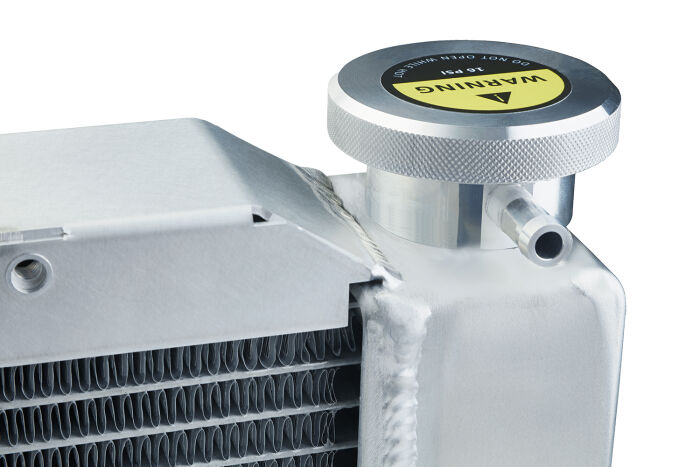

This is a really nice cooling system that's ready for the show, streets, or strip! This Stage 1 Radiator has dual one-inch tubes, single pass, with optimized louver design to maximize cooling, and deep draw headers for an extra solid tube/header seal. Billet aluminum filler neck with overflow tube, and a billet aluminum 16 psi cap are included. No epoxy or anything else like that just tight tolerances all around. Building your custom cooling system is easy!
Features:

• All Aluminum Radiator
• Shroud-Ready with Four Corner Design
• Compatible with Stage 2 Shroud part number 1171S00
• Compatible with Stage 3 Electric Fans part number 67014 and 67018
• Compatible with Stage 3 Fan Controllers part number 69598 and 69595
• Thread-in Thermostat Ready (3/8 inch NPT)
• Beautifully Welded Tanks

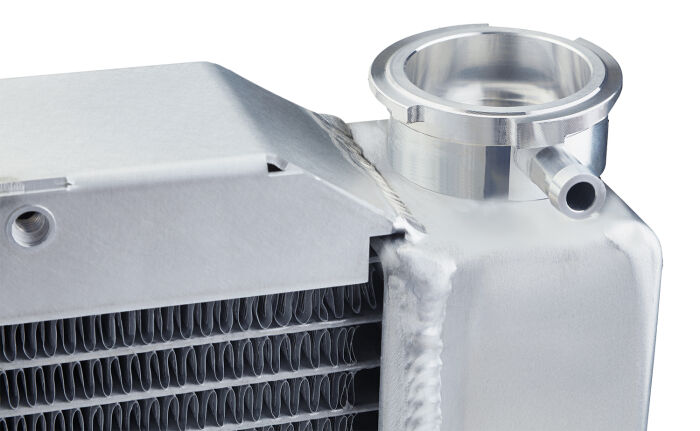

• Billet Aluminum Filler Neck
• Billet Aluminum Radiator Cap Included
• High-Capacity Overflow Tube
• 123 Series Radiator Universal GM 26 Inch Core Manual Transmission
• Core Thickness (in): 2.4
• Core Width (in): 26
• Electric Fan(s) Included: No
• Finish: Natural
• Height (in): 18
• Inlet Diameter (in): 1.5
• Inlet Location: Driver Side
• Mounting Style: Universal
• Outlet Diameter (in): 1.75
• Outlet Location: Passenger Side
• Overall Width (in): 31.1
• Series: 1-2-3
• Shroud Included: No
• Transmission Type: Manual
