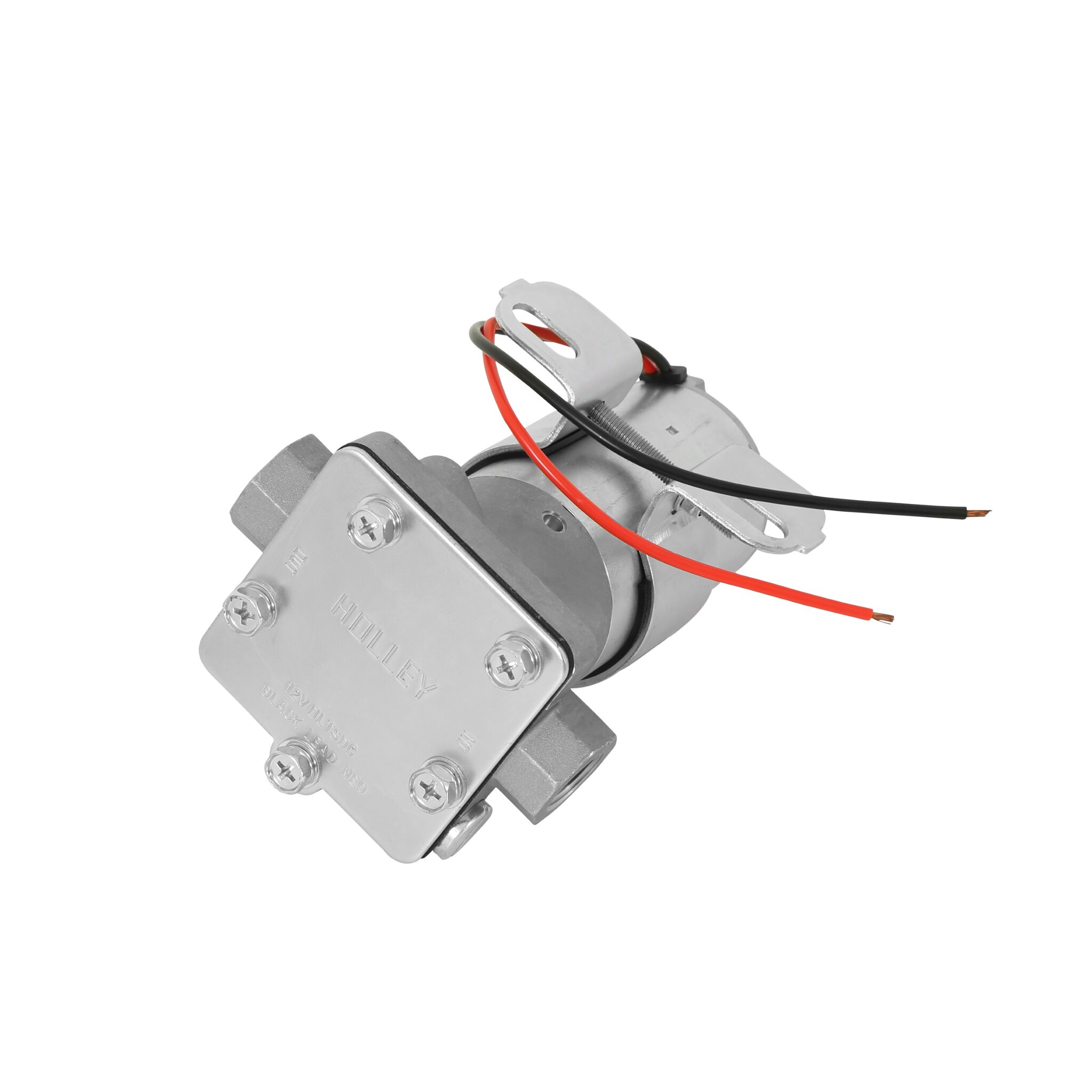

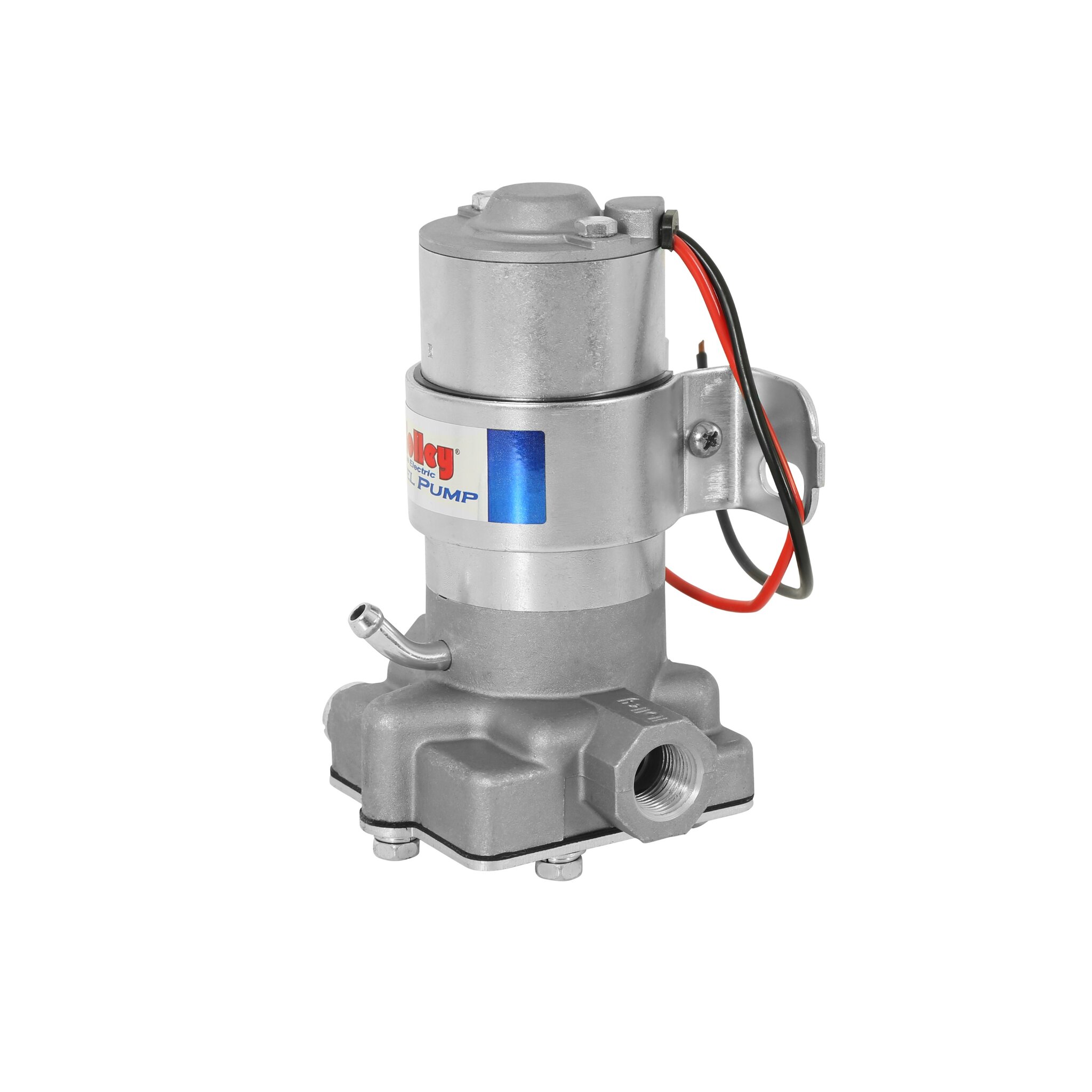

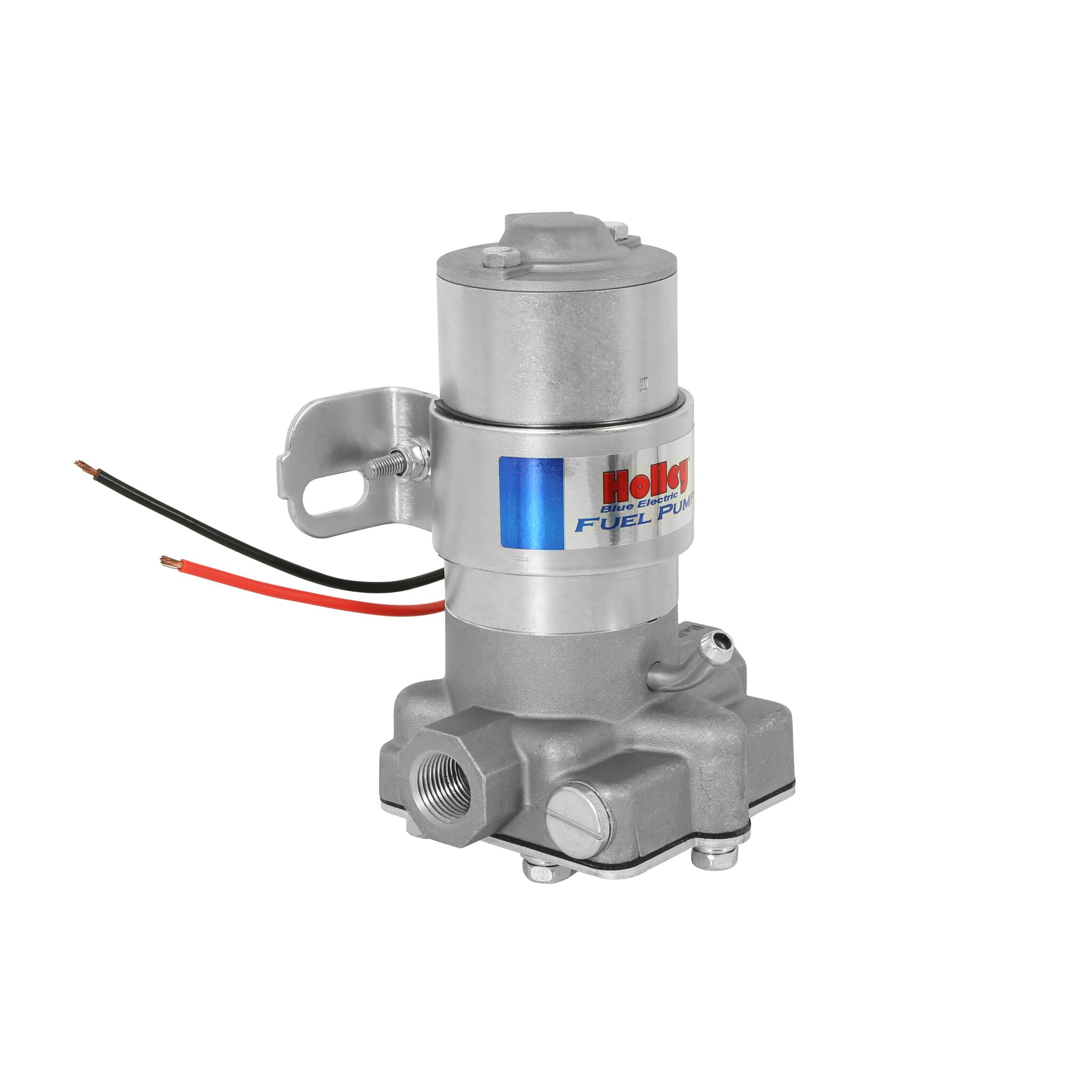

110 GPH Blue® Electric Fuel Pump With Regulator
SKU
HTPD-712-802-1
List price
$371.94
Price
$309.95
Description
Marine Carbureted Applications
Compatible with Gasoline Only
Features
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow and quiet operation
- Motor draws only 3 amps current
- 7 1/2 amp fuse recommended
- Improved design for street/strip applications
- Not designed to be used on aircraft of any type.
- Distinctive “Blue” logo
- Flows 110 GPH (free flow)
- Flows 88 GPH at 9 psi
- maximum pressure is 14 psi

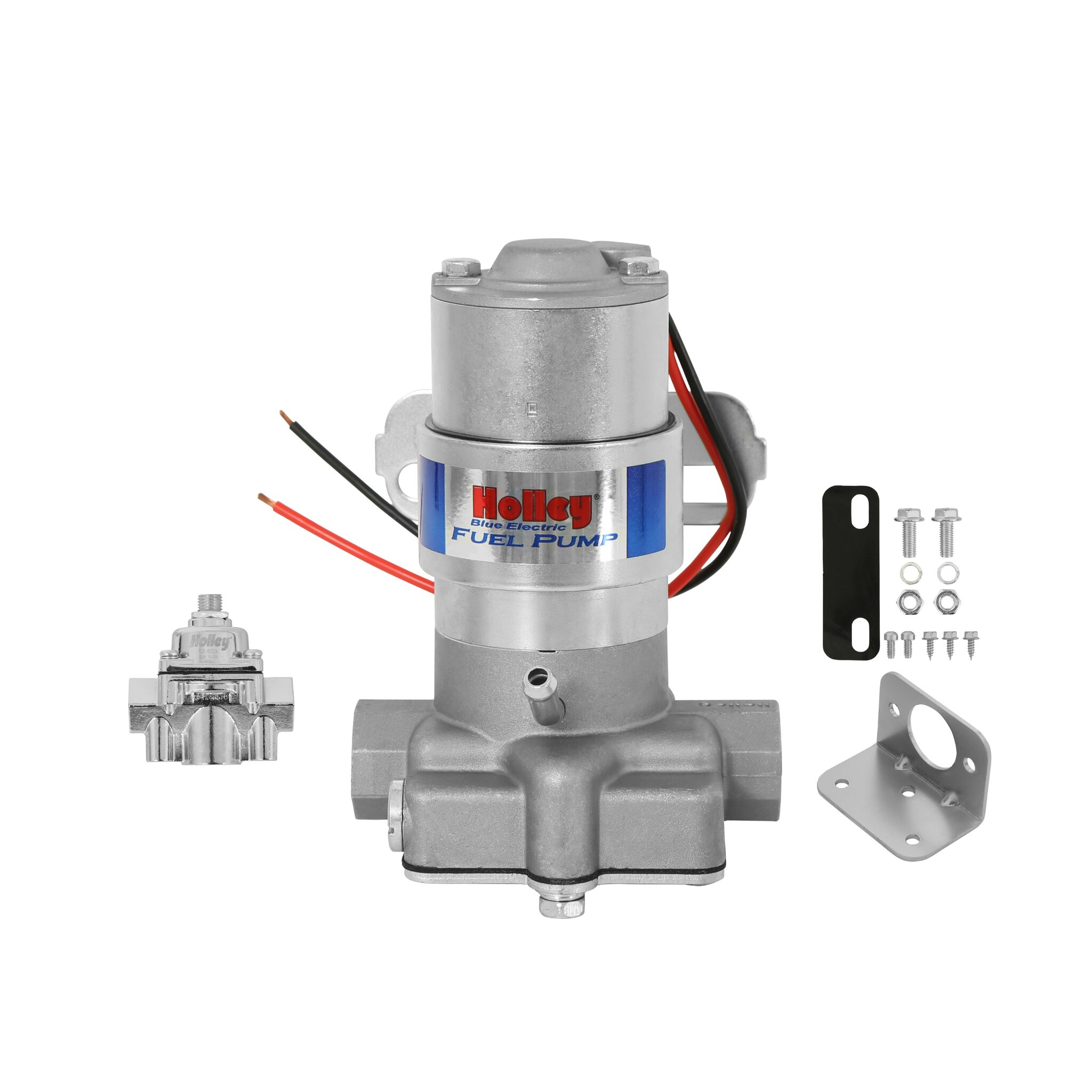

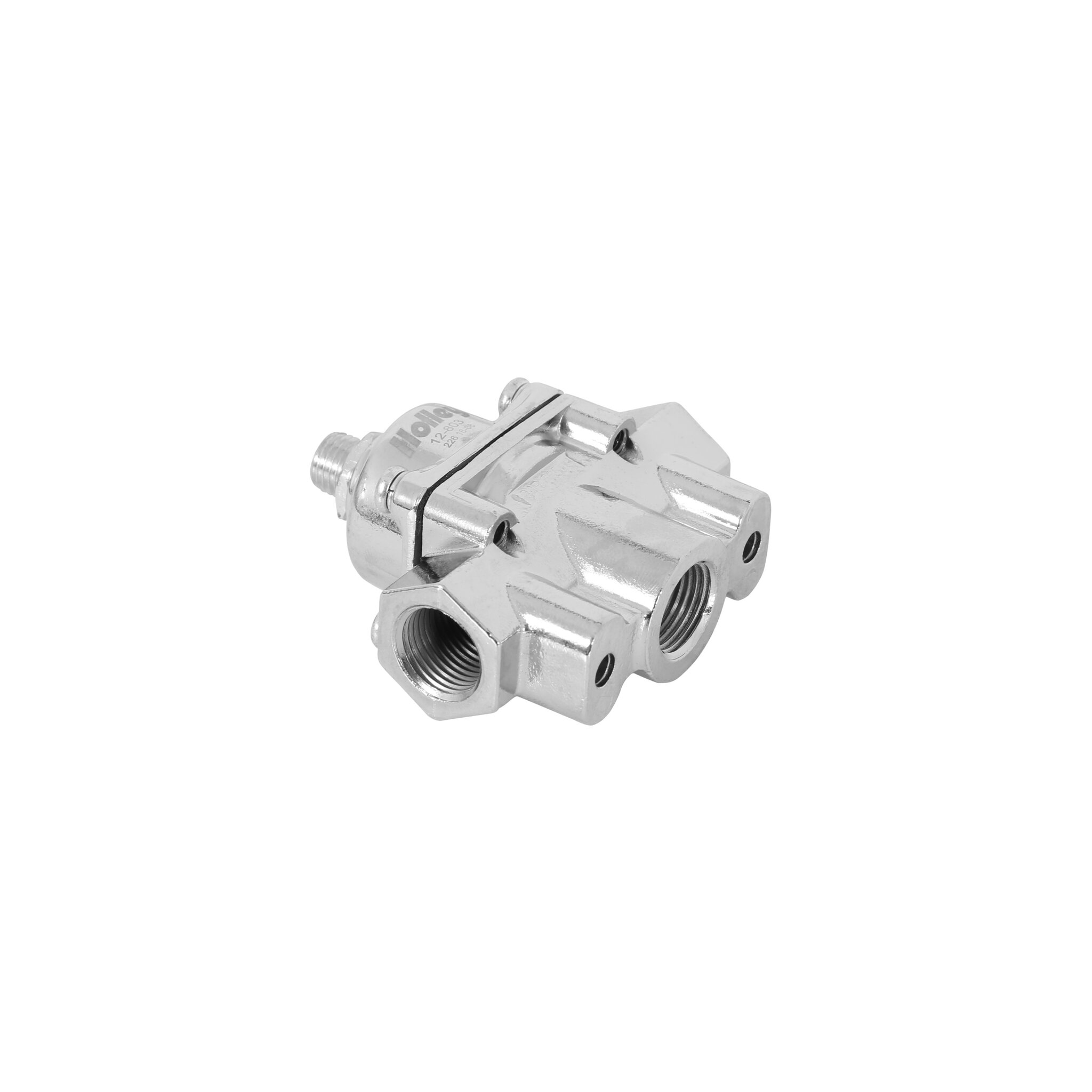

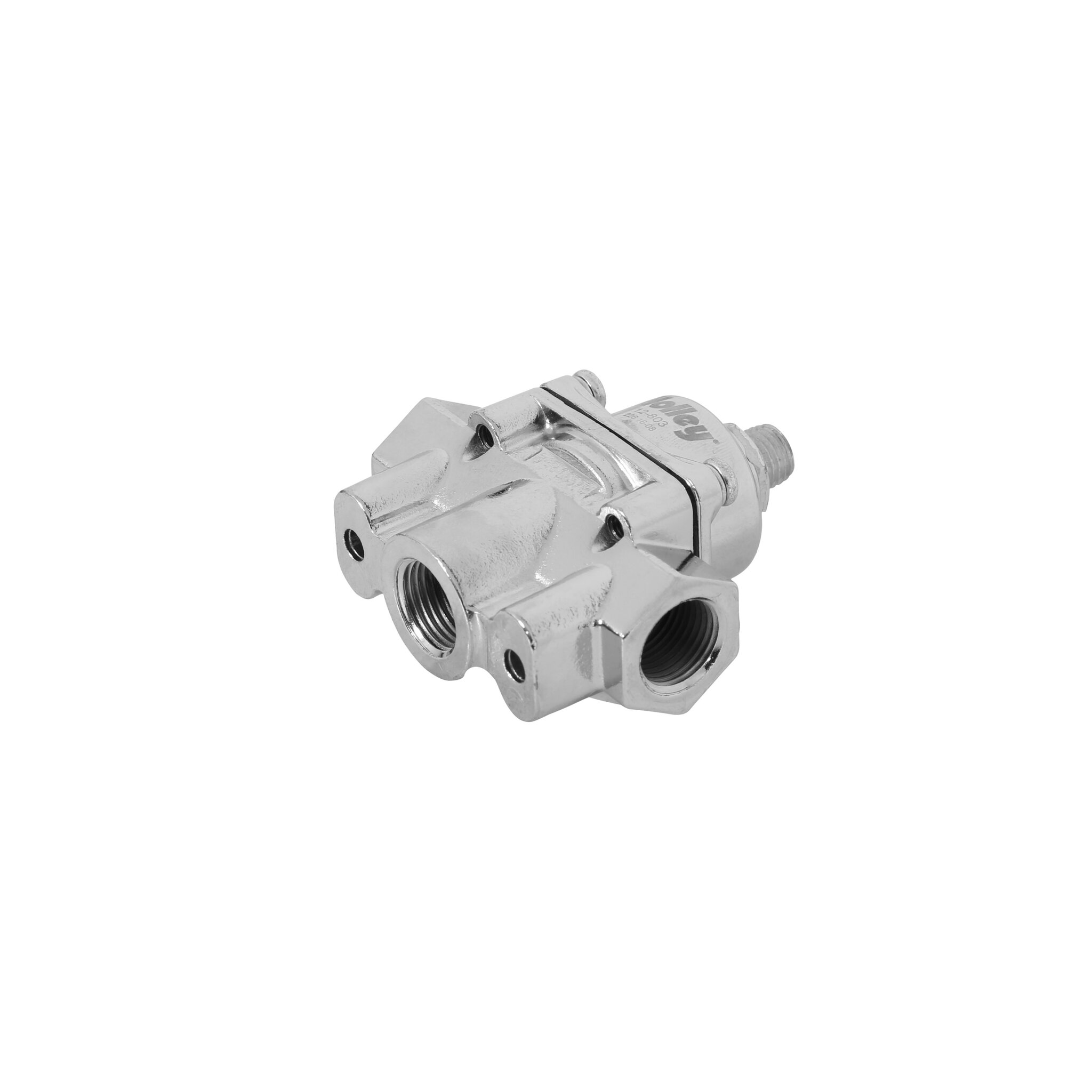

- Includes P/N 12-803 fuel pressure regulator
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Not compatible with alcohol or methanol fuels
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
- Meets U.S. Coast Guard regulations
- Includes Fuel/vapor tube
Specs
Brand
HOLLEY
Category
Electric Fuel Pump
Specs
Negative Ground: Yes
Outlet Quantity: 1
Pump Body Color: Silver
Maximum Pressure: 14
Fuel Delivery Type: Carburetor
Regulator Included: Yes
Maximum Flow Rating: 110
Internal Or External: External
Maximum Amperage Draw: 3
Gasket Or Seal Included: No
Inlet Fitting Thread Size: 3/8
Universal Or Specific Fit: Universal
Fuel Sending Unit Included: No
Outlet Fitting Thread Size: 3/8
Brand: Holley
Voltage: 12
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: Gasoline
part type: Electric Fuel Pump
Grade Type: Performance
Inlet Size: 3/8 inch NPT
Inlet Type: NPT
Application: Marine
Fuel System: Carbureted
Outlet Size: 3/8 inch NPT
Outlet Type: NPT
Motor Finish: Silver
Product Type: Fuel Pump
Sub Category: Fuel Pumps and Related Components
Bracket Color: Silver
Emission Code: 5
Free Flow GPH: 110
Free Flow LPH: 416
Wire Quantity: 2
Fuel Pump Type: Electric
