100 GPH Universal In-line Electric Fuel Pump
SKU
HTPD-12-170
List price
$245.95
Price
$217.95
Description
Supports up to 900 EFI or 1050 Carb HP Compatible with Pump Gas*, Race gas, Diesel or E85
Features
- Designed for high output naturally aspirated and forced induction EFI and carbureted vehicles. The roller vane design pump provides fuel pressure and volume to support up to 900 EFI N/A or 700 EFI Boosted horsepower.
- The 12-170 pump is compatible with Pwm
- Compatible with Flex Fuel (E85/E90) and all types of gasoline (100% Alcohol fuels may diminish fuel pump life)

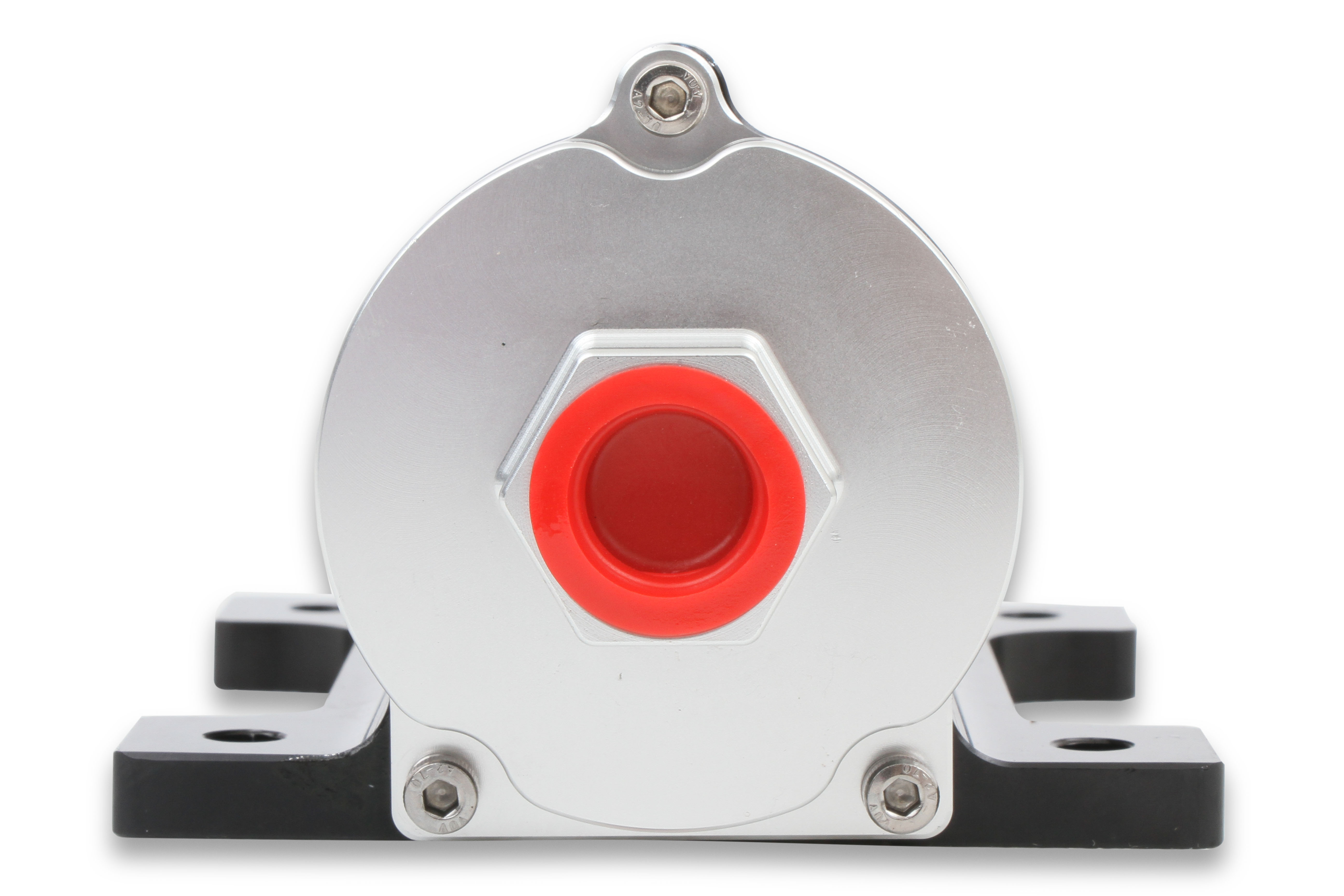

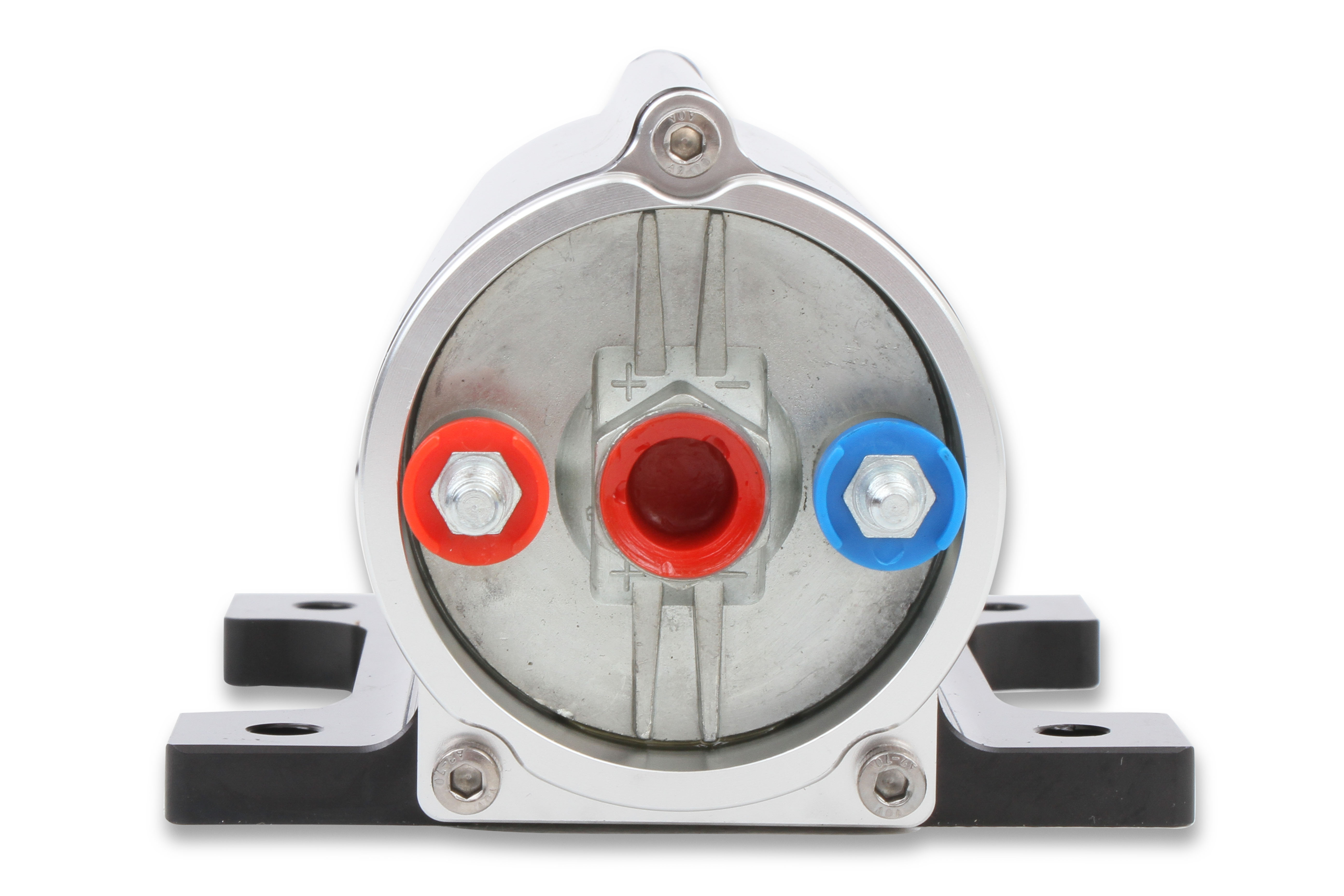

- The inlet thread is a -8 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting)

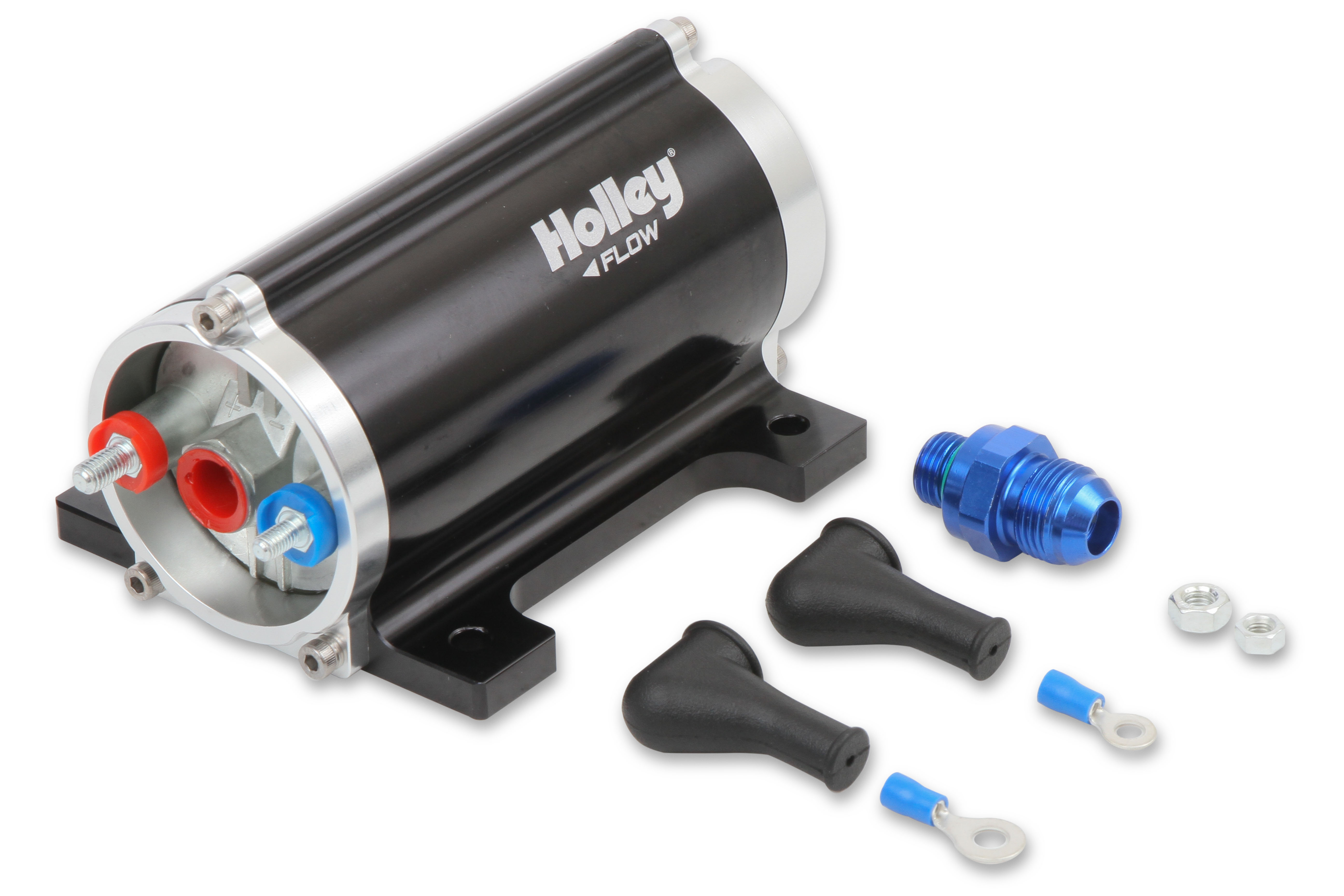

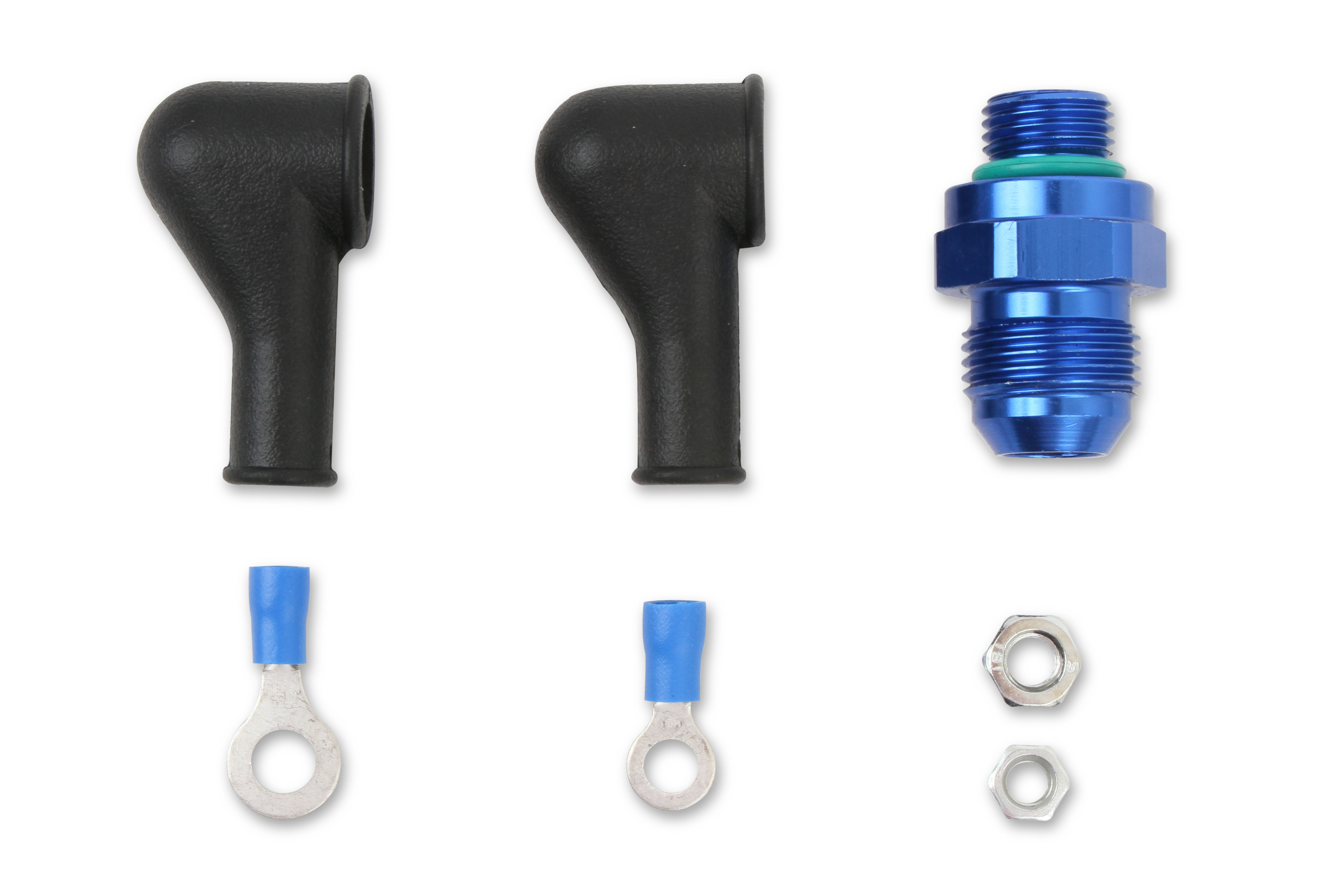

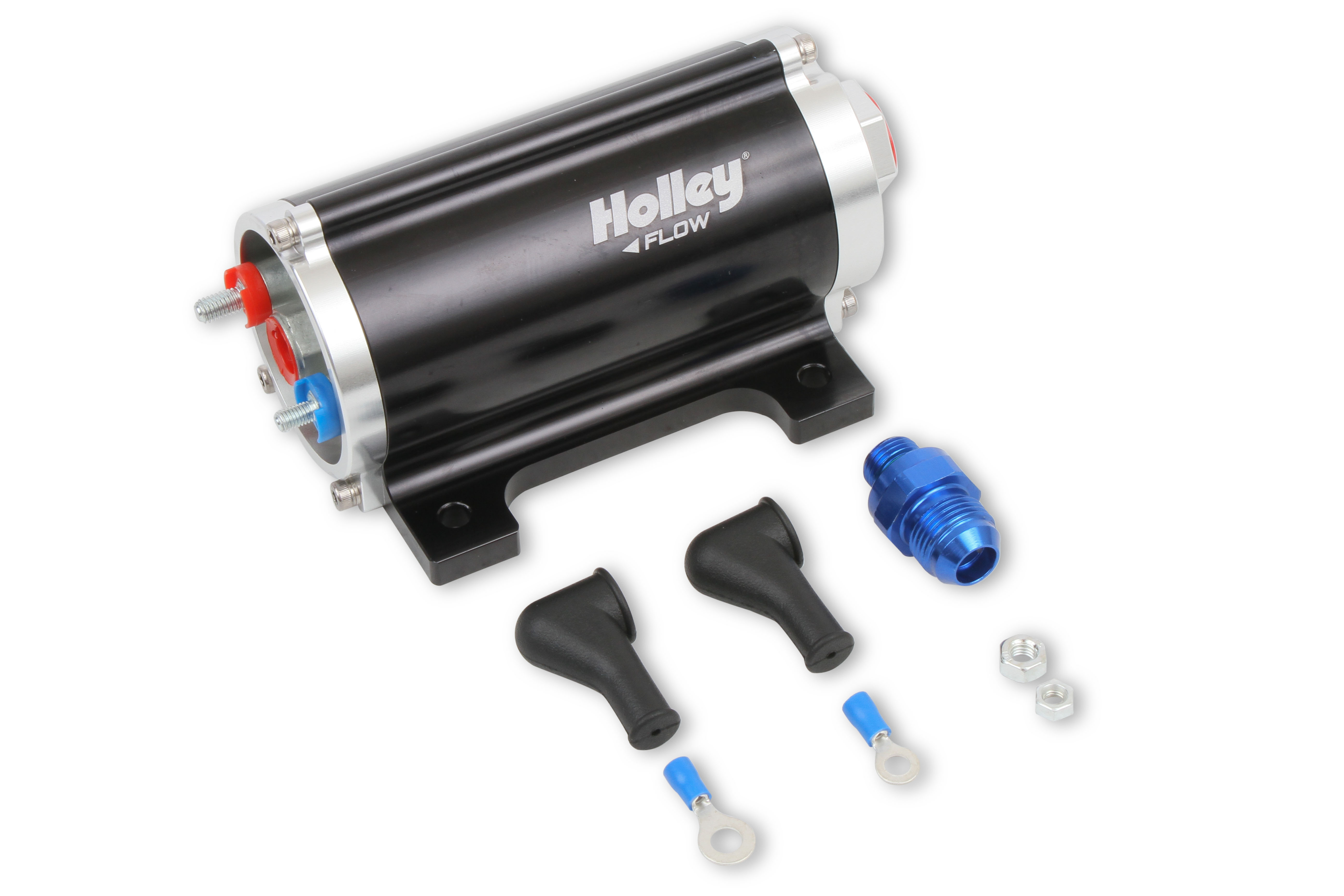

- Kit includes fuel pump, -6 to -8 male AN discharge fitting with check valve, terminal nuts & boots, instructions
Specs
Brand
HOLLEY
Category
Electric Fuel Pump
Specs
Brand: Holley
Voltage: 12
Warning: California Proposition 65
Category: Air and Fuel Delivery

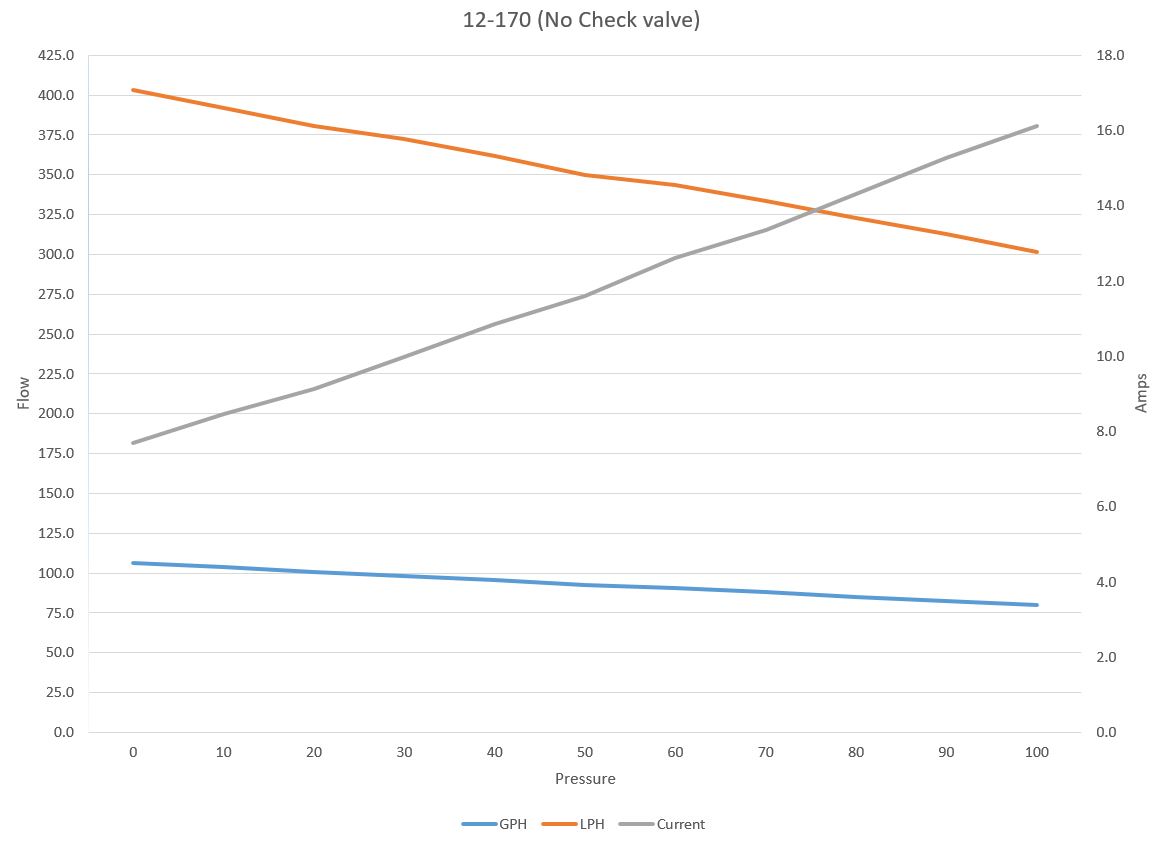

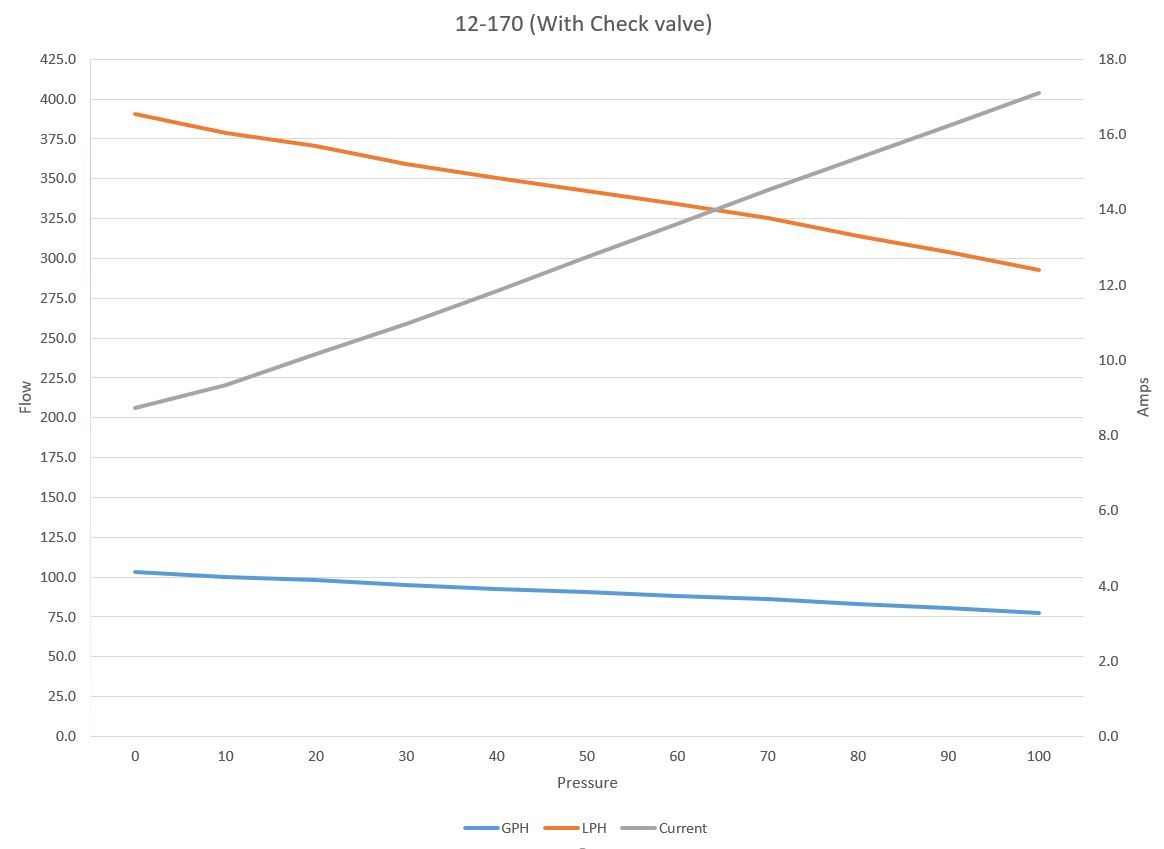

GPH@8PSI: 105
LPH@8PSI: 390
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: Gasoline / Diesel / E85
GPH@43PSI: 96
GPH@60PSI: 91
LPH@43PSI: 364.7 without check valve
LPH@60PSI: 343.6 without check valve
part type: Electric Fuel Pump
Grade Type: Performance
Inlet Size: 8 AN O-Ring - 3/4-16 SAE
Inlet Type: 8 AN ORB
Application: Universal
Fuel System: Carbureted
Outlet Size: 6AN
Outlet Type: 6 AN ORB
Product Type: Fuel Pump
Sub Category: Fuel Pumps and Related Components
Emission Code: 5
Free Flow GPH: 105
Free Flow LPH: 400
Wire Quantity: 2
Negative Ground: Yes
Outlet Quantity: 1
Pump Body Color: Black Anodized
Maximum Pressure: 60
Fuel Delivery Type: Carburetor
Regulator Included: No
Maximum Flow Rating: 100
Internal Or External: External
Gasket Or Seal Included: No
Forced Induction HP@8PSI: 800
Forced Induction HP@43PSI: 750
Forced Induction HP@60PSI: 700
Inlet Fitting Thread Size: 3/4-16
Universal Or Specific Fit: Universal
Fuel Sending Unit Included: No
Outlet Fitting Thread Size: 9/16-18
Naturally Aspirated HP@8PSI: 1050
Naturally Aspirated HP@43PSI: 950
Naturally Aspirated HP@60PSI: 900
