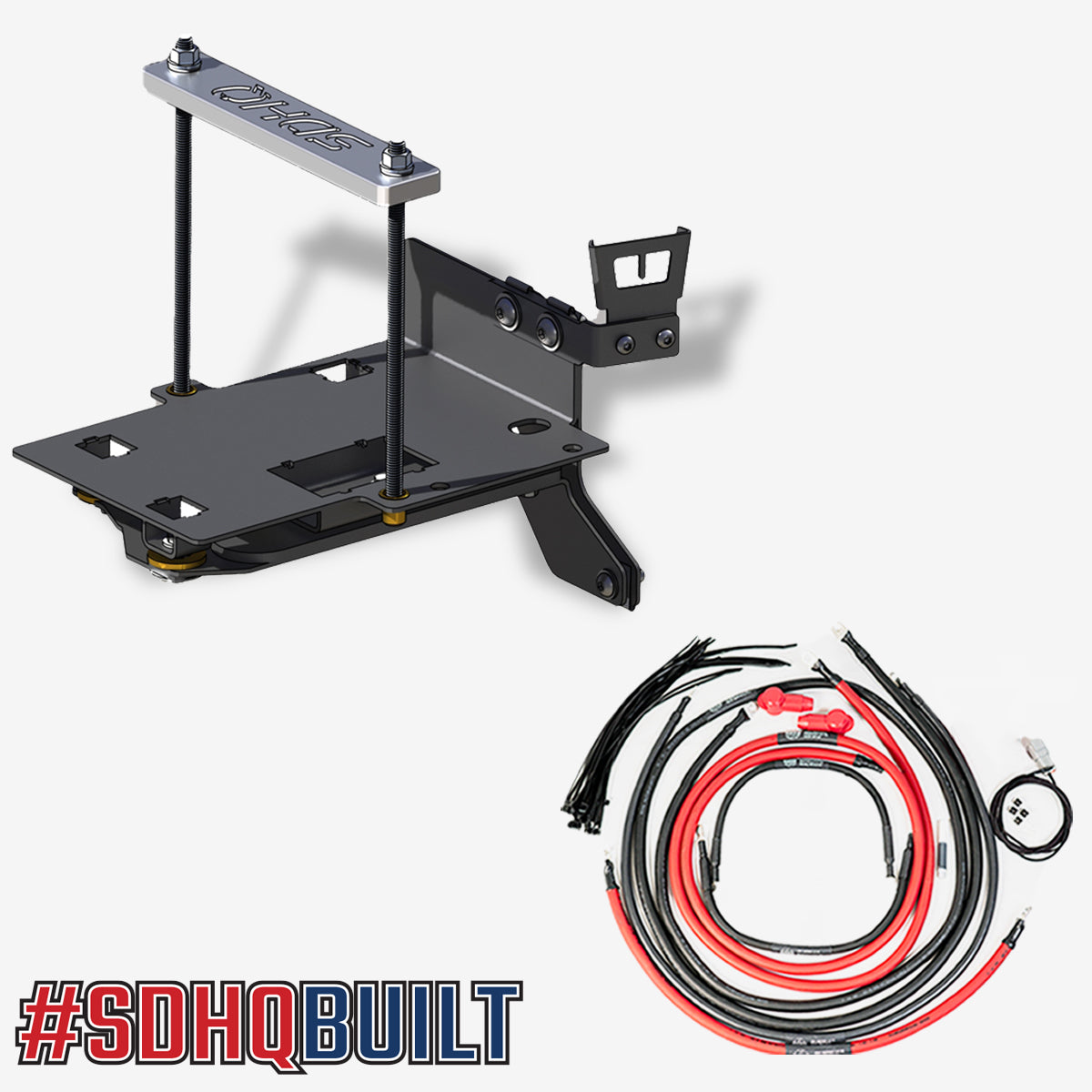

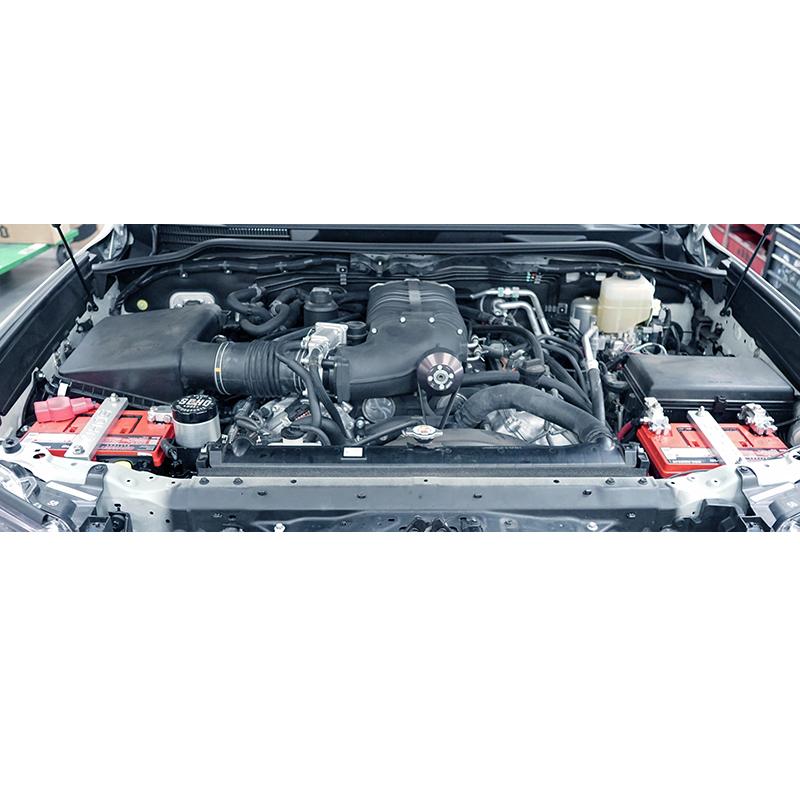

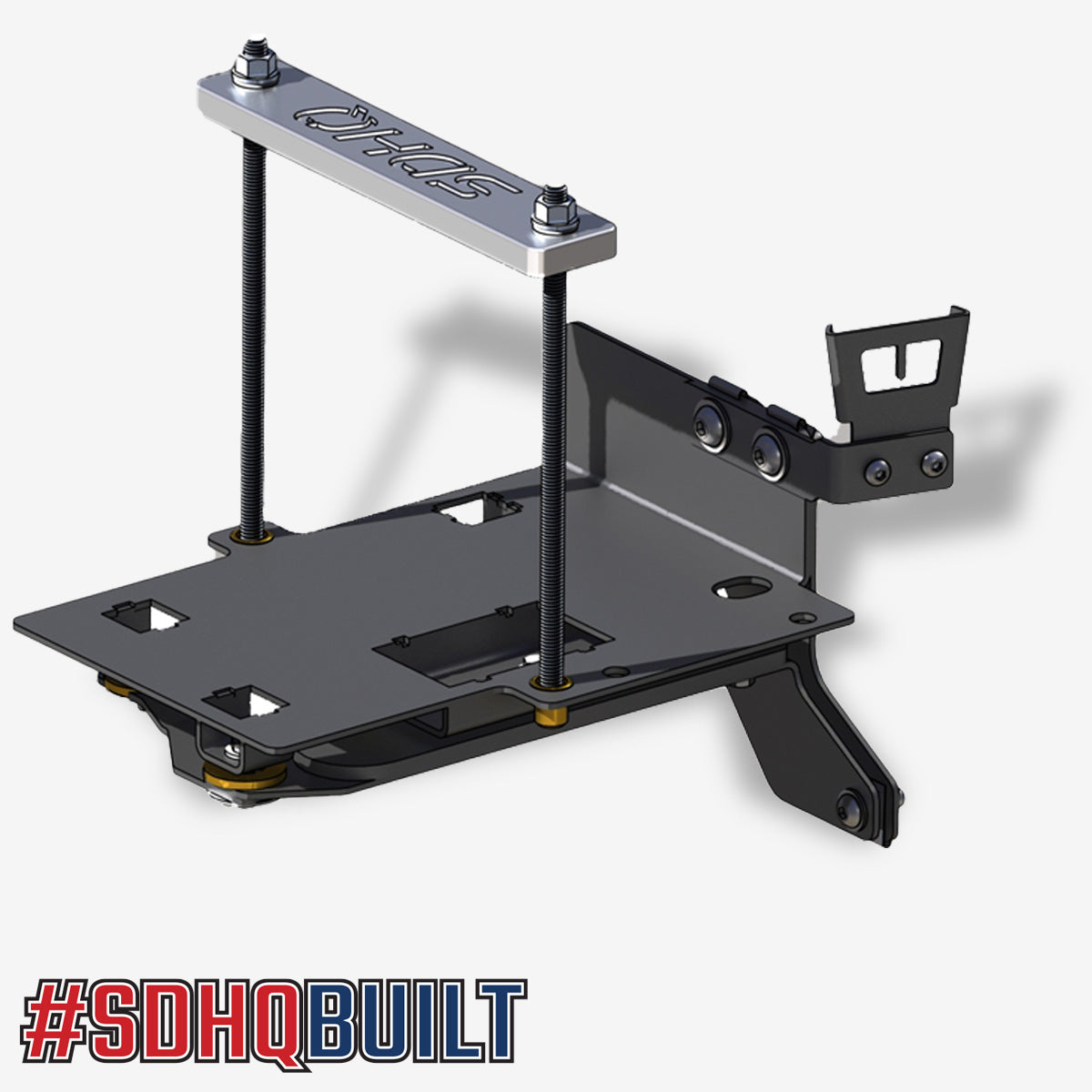

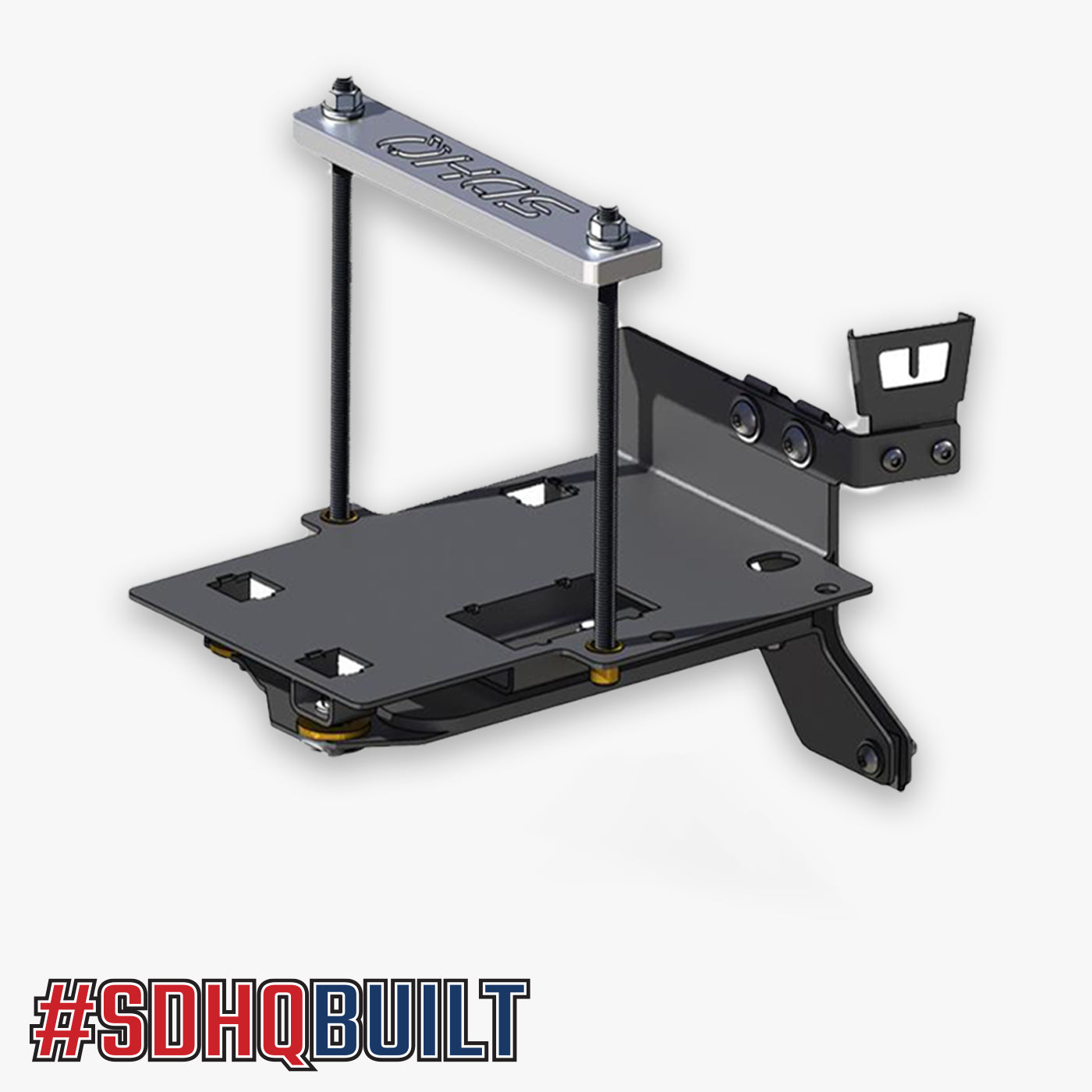

The SDHQ Built Dual Battery Tray Kit for the 2008-2021Toyota 200 Series Land Cruiser allows you to mount a second battery in the engine compartment of your Land Cruiser.

Fitment Details:

• Vehicle Fitment: 2008-2021 200 Series Toyota Land Cruiser
• Battery Fitment: Tray fits Group 24, 34/34R and 25/35 batteries
  Does NOT fit Group 27 or 31 Batteries

Key Features:

• 3D CAD designed, engineered and built in-house for our typical SDHQ Built quality, fit, and finish
• Direct bolt in installation for Land Cruisers.
• The tray mounts to (6) locations on top and (1) location on the side of the wheel well.
• Second battery location provides better weight distribution than kits that stuff 2 batteries in the stock location.
• Mount fits 34/34R (34R fits stock battery location)
• Billet Hold Down included for battery.
• Powder coated black for a durable finish.
• Integrated mount for Blue Sea Systems ACR.
• Battery Fitment:
  • Tray fits Group 24, 34/34R and 25/35 batteries
    Does NOT fit Group 27 or 31 Batteries

What's Included:

• SDHQ Auxiliary Billet Battery Hold Down
• Support Brackets
• Hardware Kit

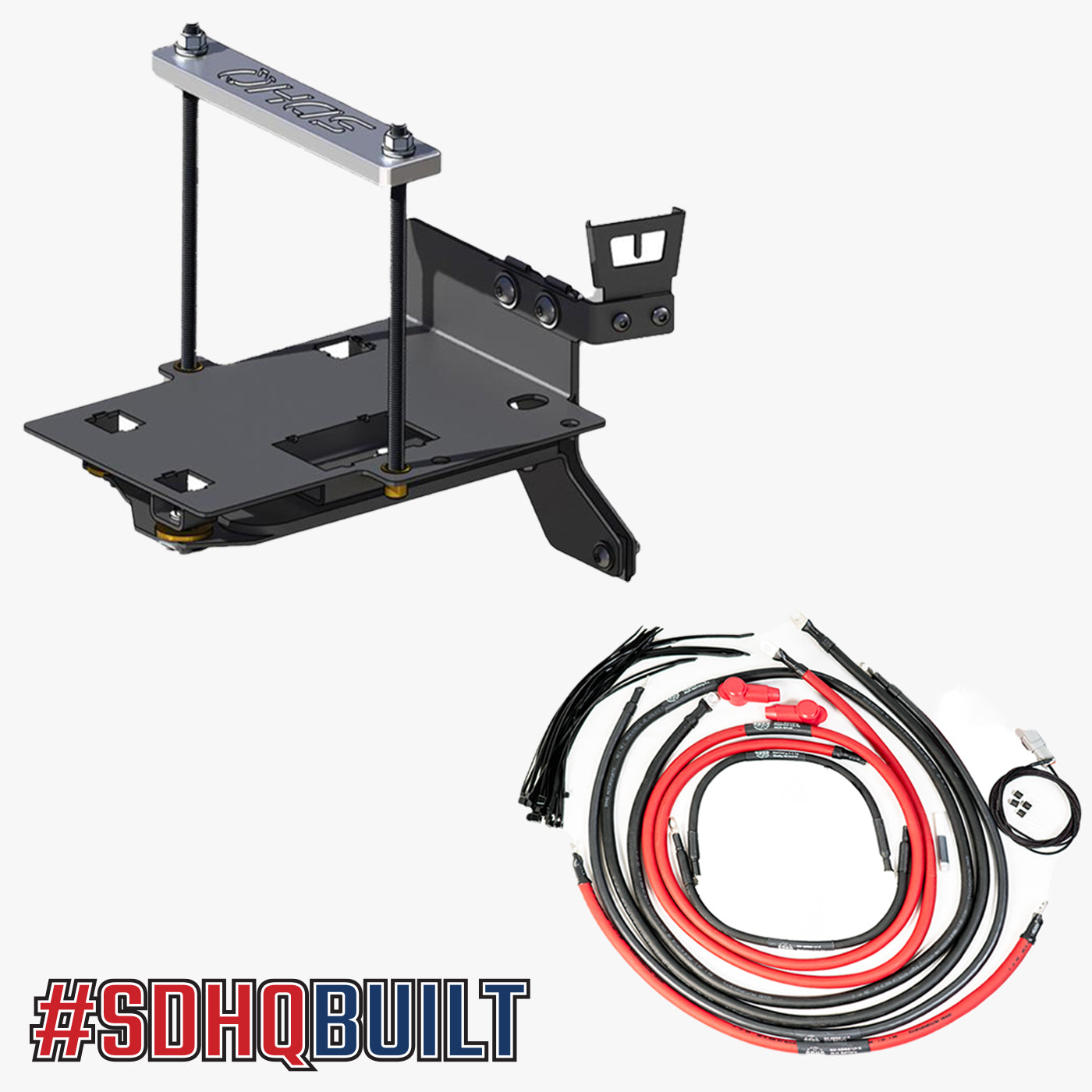

SDHQ Dual Battery Wiring Kit:

Our SDHQ BUILT Dual Battery Wiring for your Toyota Land Cruiser includes everything you need to wire your SDHQ Dual Battery System. This Wiring Kit is designed to be used with a battery isolator between the batteries.

What's Included:

• Premium Cross-Linked SAE J-1127-SGX cables
• 2 AWG Main Cables (main to aux battery ground and main/aux batteries to battery isolator)
• 4 AWG Second Battery to Frame Ground Upgrade
• 6 AWG Main Battery to Body Upgrade
• 6 AWG Aux Battery to Body Upgrade

Recommended to use 2 new matching AGM or Sealed batteries

Why do I need to use matching batteries?

Batteries in series or parallel applications, where more than one battery is connected to another battery should always have batteries that are identical in age, size and type. Batteries that are different from each other in any of those ways will behave differently when delivering and receiving electricity, which can leave one chronically undercharged, while the other is chronically overcharged, shortening the lifespan of both.
