Our SDHQ Built Hidden Winch Mount for 2008-2021 200 Series Toyota Land Cruisers will elevate your Land Cruiser's off-roading capabilities. This Winch Mount allows Land Cruiser owners to mount a Warn Zeon series Winch to the front of their Land Cruiser while providing a direct from the factory look.

Our Winch Mount is fabricated and gusseted from 1/4 inch steel, bolts directly to the Land Cruiser's frame, and includes all the necessary components for a clean install.

Vehicle Fitment:

• 2008-2021 200 Series Toyota Land Cruiser

Winch Fitment:

• Our SDHQBuilt Winch Mount is designed to work with the following Warn Winches.
  • Warn Zeon 10-S Winch
  • Warn Zeon 10-S Platinum Winch
  • Warn Zeon 12-S Winch
  • Warn Zeon 12-S Platinum Winch

Key Features:

• 3D CAD designed, engineered and built in-house for our typical SDHQ Built quality, fit, and finish
• Bolts directly to frame in (12) locations using factory hardware
• Main Winch Mount fabricated and gusseted from 1/4 inch steel for strength and durability.
• Bumper supports in several locations for OEM Quality bumper fitment
• The Lower support mounts are fabricated and gusseted from 1/4 inch steel and bolt to the main Winch Mount using (6) 1/2 inch Grade 8 Bolts
• (1) SDHQ Built 1.5 Inch Fairlead is included with our mount. This fairlead sits flush with the OEM bumper for high angle recoveries. You will not need to purchase any other fairlead

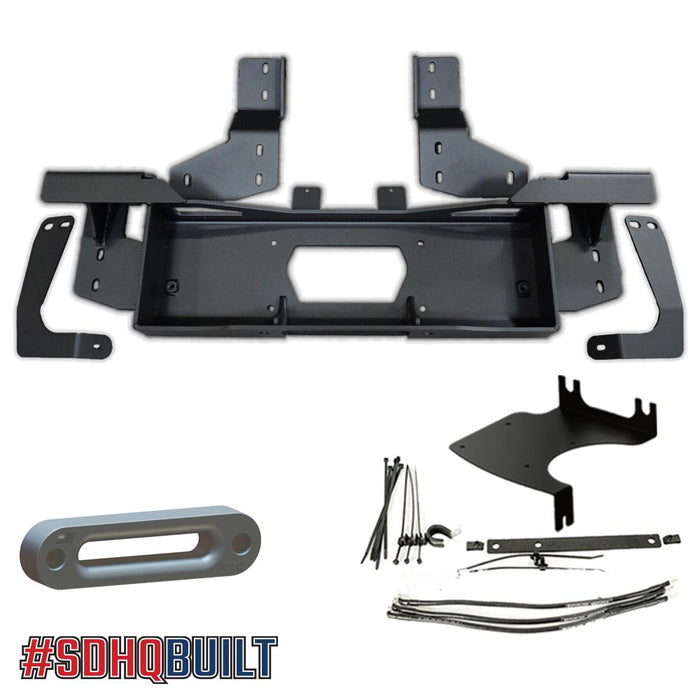

What's Included:

• Main Winch Mount
• Outer bumper supports with integrated Warn Zeon relocation bracket included
• (1) SDHQBuilt 1.5 Inch Fairlead
• Lower bumper supports
• Lower support mounts

Tech Info:

• Trimming of stock bumper is required
• Using a Winch with a synthetic rope is highly recommended
• Zeon Control Box Relocation Bracket included (SDHQ-52-1660-200)

Supercharger Fitment:

• Compatible with Harrop Superchargers (purchase of relocation kit is required for installation)
• Currently does not fit Magnuson Superchargers
